2mag heating magnetic stirrers
2mag
Request a price
The sales package includes the compatible heatMIXcontrol controller for each device.

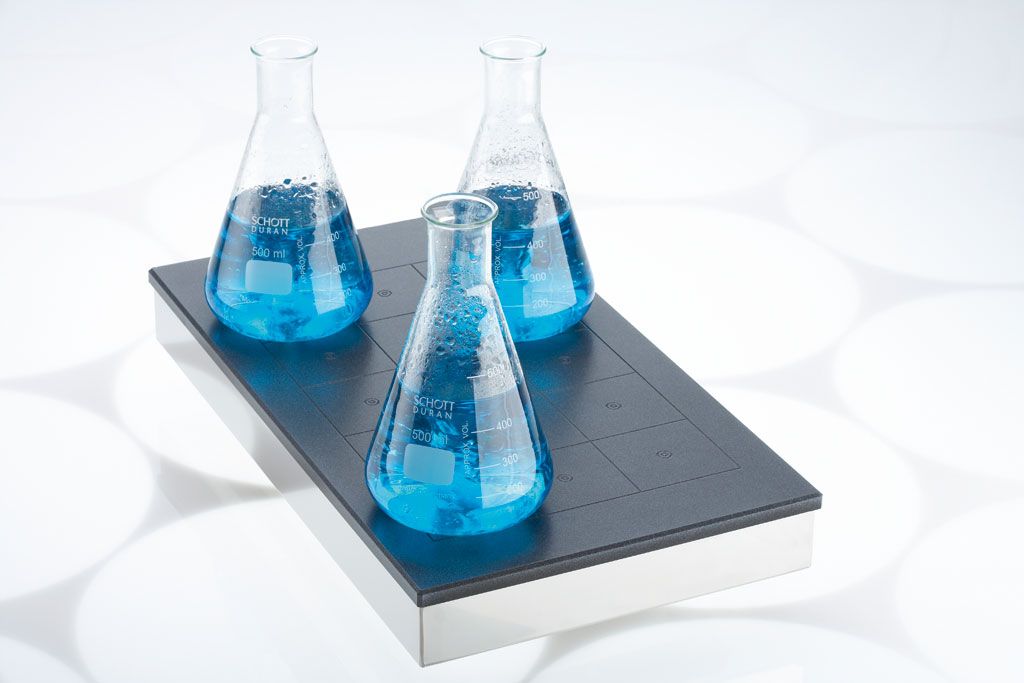

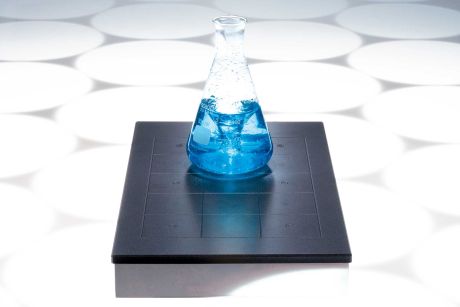

Stirring Hotplate 6
Suitable for example 6 1000 ml Erlenmeyer flasks, maintenance-free and wear-free heating magnetic stirrer with heatMIXcontrol controller. It can be used universally for laboratory glassware of various shapes and sizes. A heating plate made of aluminum alloy with a PTFE coating ensures homogeneous temperature distribution and excellent chemical resistance. With overheat protection. The distance of the 15 stirring points is 130 mm. The stirring points are fully synchronized. With a rotation speed of 100 - 2000 rpm and a stirring power adjustable in 10 steps. It ensures continuous and even stirring even at low speed. Speed, power and temperature can be easily set on the digital display.
Stirring Hotplate 15
It can be used universally for laboratory glassware of various sizes and shapes. It is also ideal for 15 tall beakers of 250 ml. Wear and maintenance-free design. Heating plate made of PTFE-coated aluminum alloy with excellent chemical resistance and homogeneous temperature distribution. Stirring power can be adjusted in 10 steps, with 100 - 2000 revolutions per minute. The stirring points are 100% synchronized, their distance is 65 mm. It ensures even and continuous stirring even at low speed. Protection against overheating. Speed, power and temperature can be easily set on the digital display.

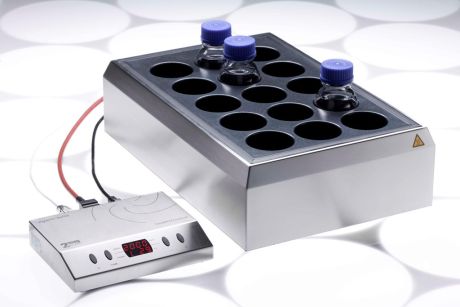

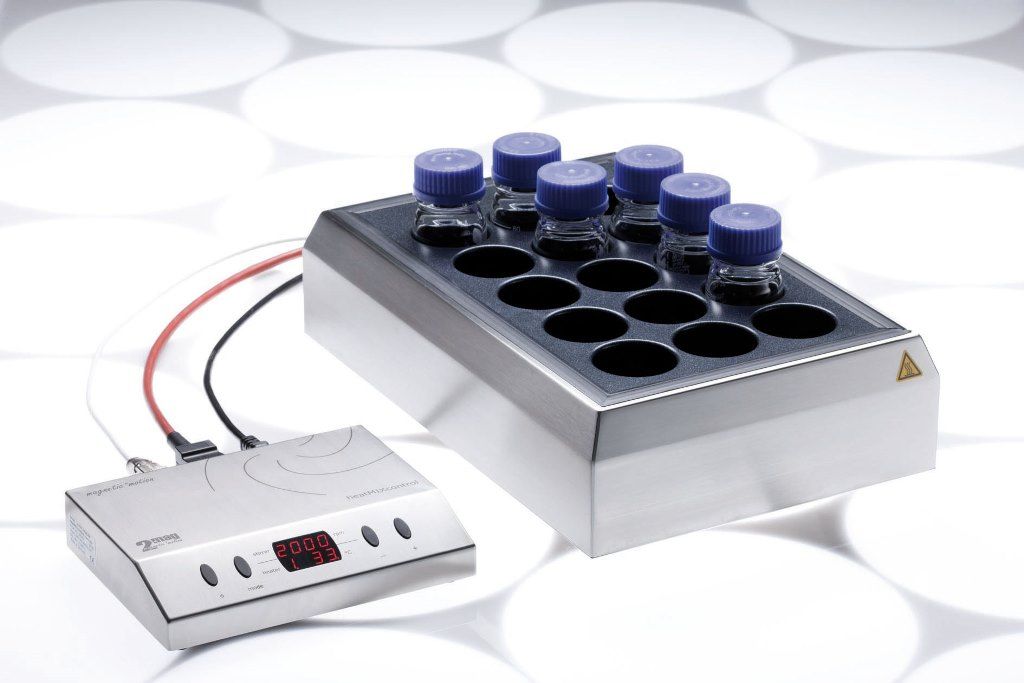

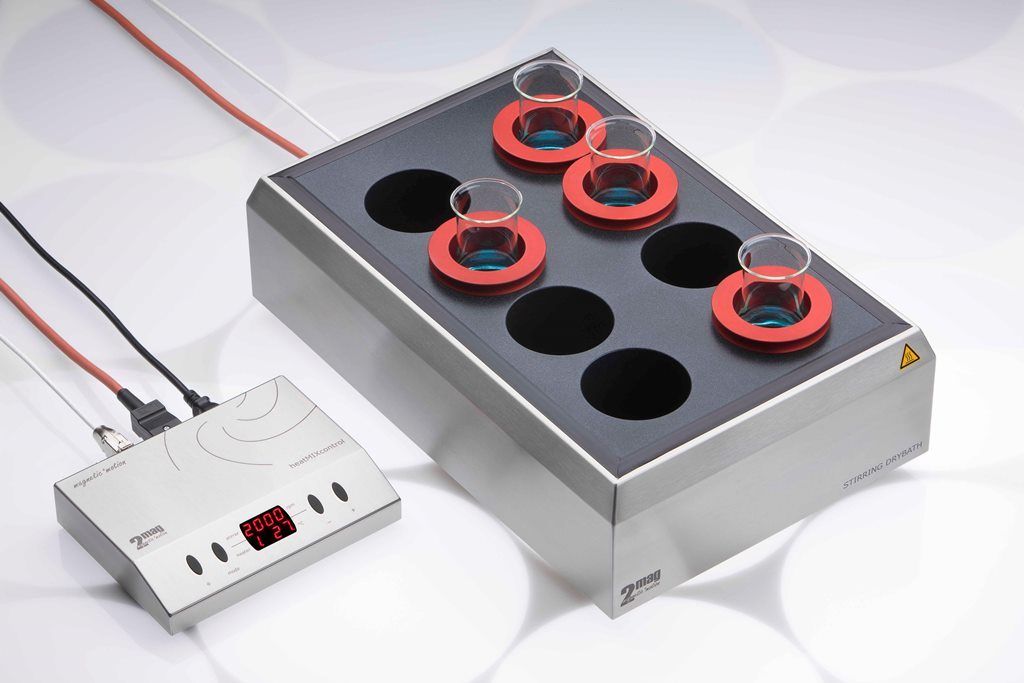

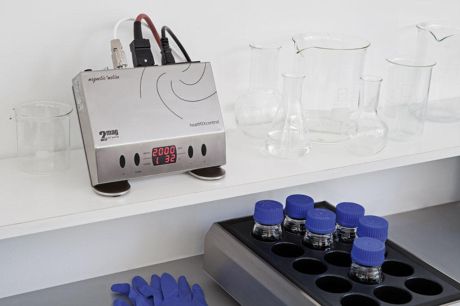

Stirring Drybath
Specially designed heating magnetic stirrers for laboratory glassware and beakers. With 15 or 8 holes that determine the location of the bottles. Maintenance and wear-free design, PTFE-coated aluminum alloy heating plate with homogeneous heat distribution and excellent chemical resistance, which can be heated to +200 °C. Specially insulated, easy-to-clean stainless steel housing. Protection against overheating. PowerDetect to automatically compensate for physically induced stirring power losses, which can be up to 40% at high temperatures. Synchronized speed between the stirring points, between 100 - 2000 rpm, with 10 step power settings. It ensures uniform stirring even during low-power operation. Speed, power and temperature can be easily adjusted with the digital display.
In three design:
- 15 pc 100 ml laboratory bottles or 150 ml tall beakers
- 15 pc 250 ml laboratory bottles or 400 ml tall beakers
- 8 pc Erlenmeyer flasks
Specifications:
| Specifications: | Stirring Hotplate 6 | Stirring Hotplate15 | Stirring Drybath 15-100 | Stirring Drybath 15-250 | Stirring drybath 8-250 ERL |
|---|---|---|---|---|---|
| Positions: | 6 | 15 | 15 | 15 | 8 |
| Stirring points: | 130 mm | 65 mm | |||
| Holes diameter: | - | - | 57.5 mm | 71.5 mm | 87.2 mm |
| Holes depth: | - | - | 48 mm | 78 mm | 72 mm |
| Stirring volume: | max. 6 x 1.5 liters | max. 15 x 1 liters | max. 15 x 150 ml | max. 15 x 400 ml | max. 8 x 250 ml |
| Stirring speed: | 100 - 2000 rpm | 100 - 2000 rpm | 100 - 2000 rpm | 100 - 2000 rpm | 100 - 2000 rpm |
| Stirring power: | 40 W | 40 W | 40 W | 40 W | 40 W |
| Stirring power setting: | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 / 90 / 100 % | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 /90 / 100 % | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 /90 / 100 % | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 /90 / 100 % | 10 / 20 / 30 / 40 / 50 / 60 / 70 / 80 /90 / 100 % |
| Heating range: | +40 °C - +200 °C | +40 °C - +200 °C | +40 °C - +200 °C | +40 °C - +200 °C | +40 °C - +200 °C |
| Heating power: | 1200 W | 1200 W | 1000 W | 1150 W | 1150 W |
| Dimensions: | 250 x 430 x 75 mm | 250 x 430 x 75 mm | 280 x 430 x 120 mm | 335 x 515 x 150 mm | 335 x 515 x 150 mm |
| Weight: | kb. 13.0 kg | kb. 13.0 kg | kb. 20 kg | kb. 35 kg | kb. 40 kg |
