2mag magnetic stirrers for microtiter plates
2mag
Request a price

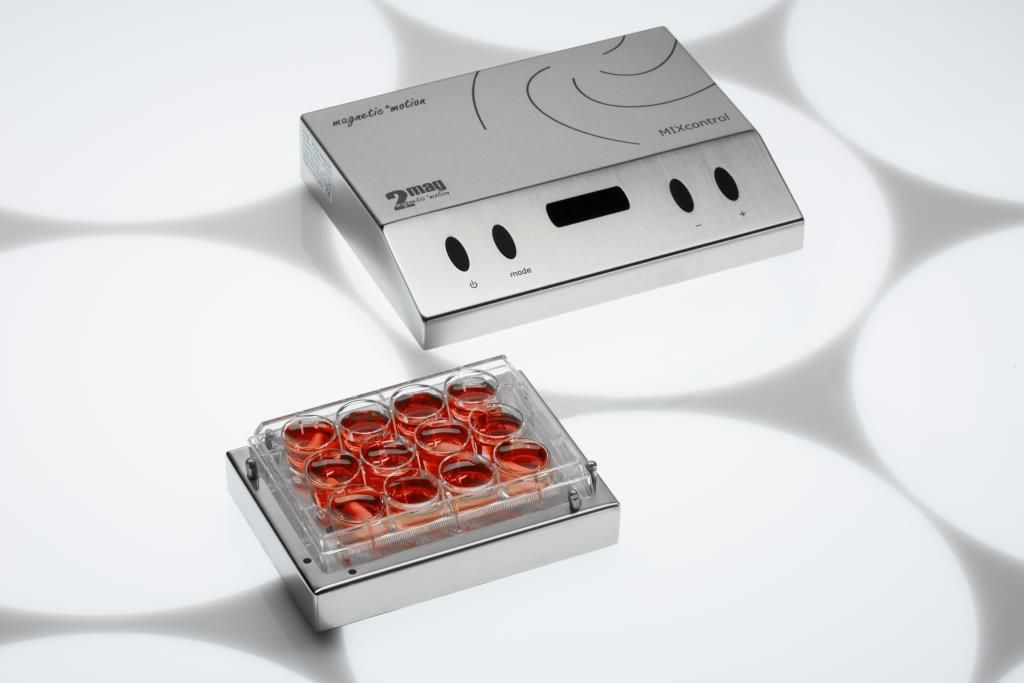

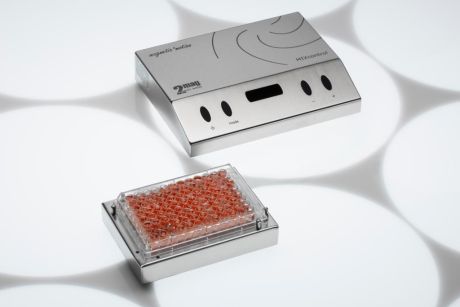

MIXdrive MTP series
Magnetic stirrers developed for stirring microtiter plates in a maintenance- and wear-free design. The stirring points are 100% synchronized, ensuring completely uniform and continuous stirring even at low speeds. With a hermetically sealed, easy-to-clean stainless steel housing, IP68 protection, water, dust and germ resistant. Can be used in water and oil baths up to +50 °C. It can also be used in CO2 incubators.

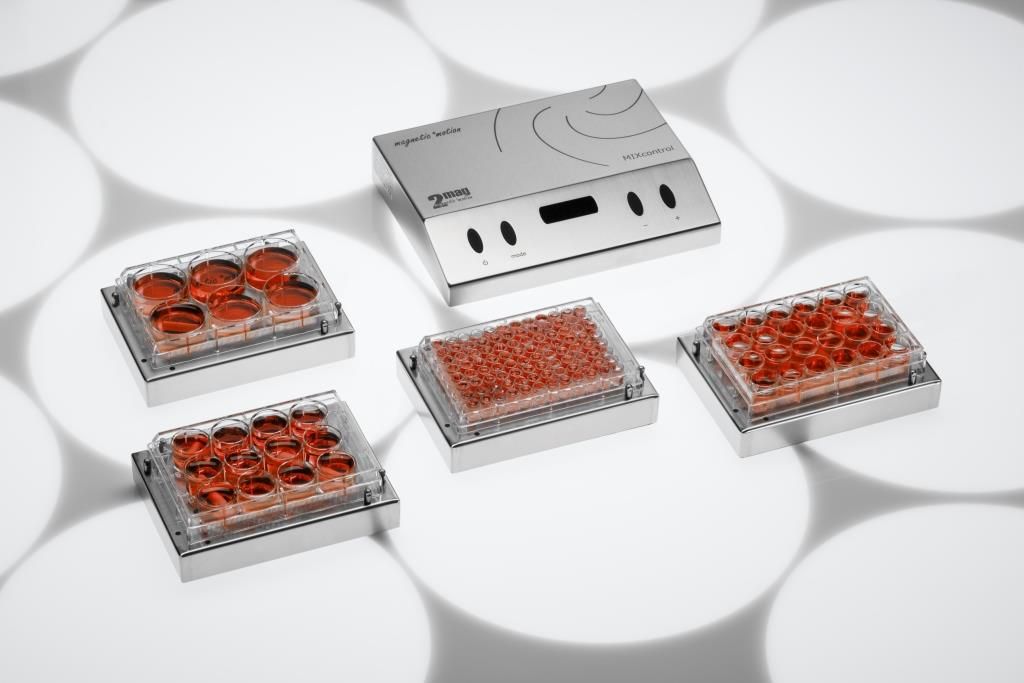

In 4 versions: for 6 / 12 / 24 / 96-well microtiter plates.

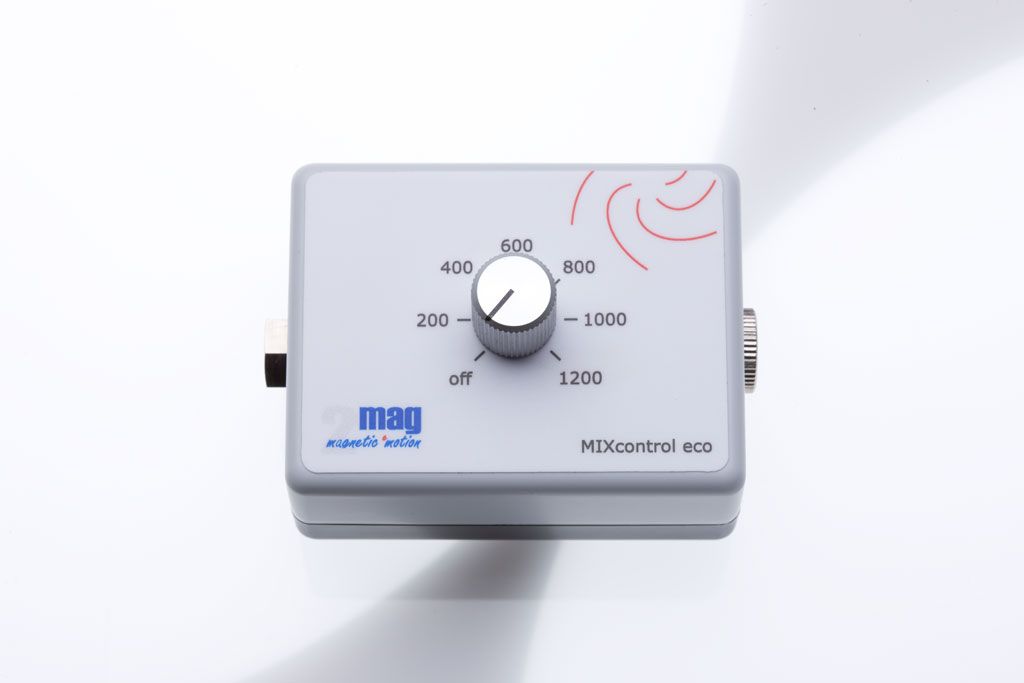

MIXcontrol eco
Analog controller recommended for stirring small and medium volumers for MIXdrive series magnetic stirrers. 10 W stirring power, adjustable speed from 120 to 1200 rpm. A maximum of 1 magnetic stirrer can be connected to the controller.

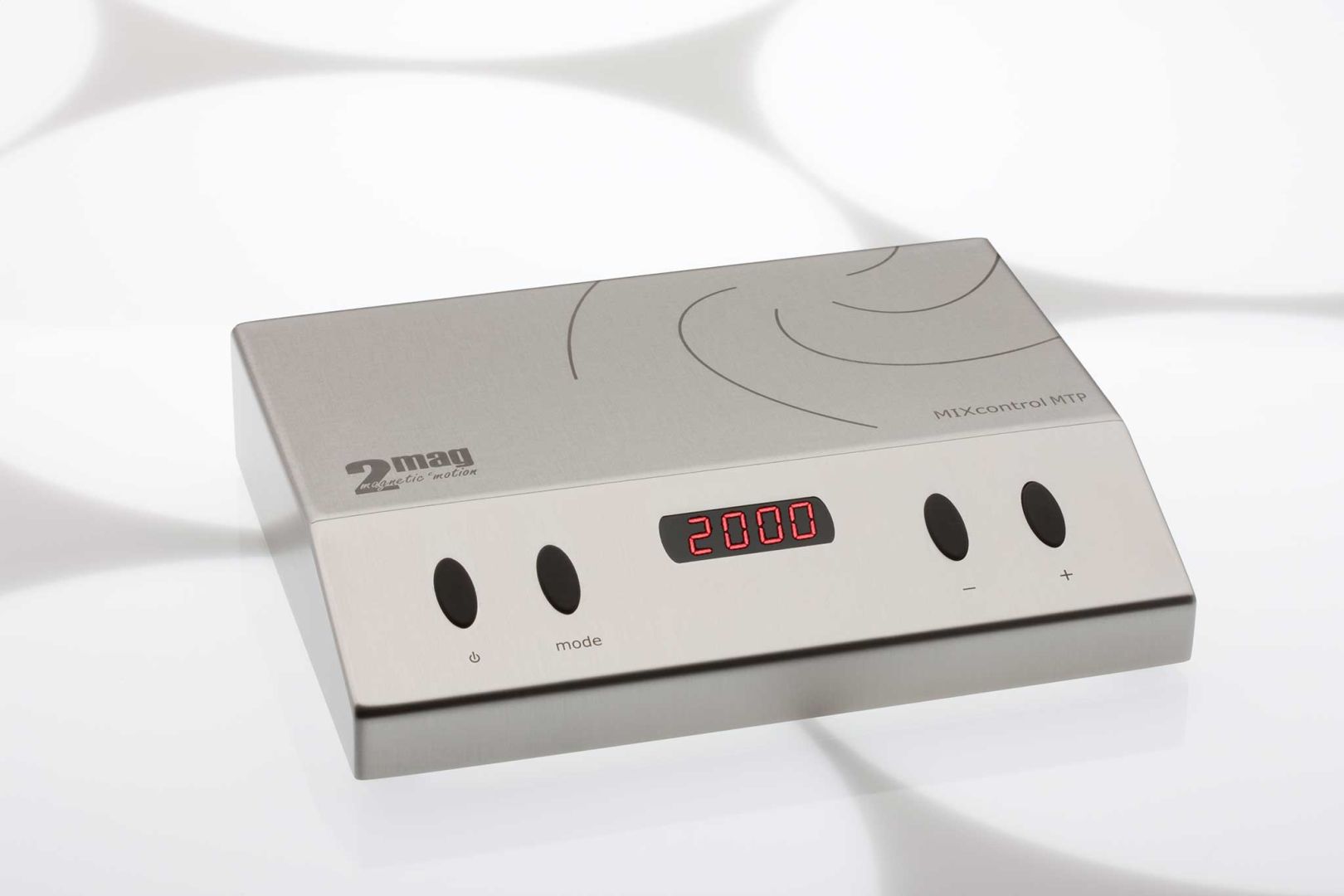

MIXcontrol MTP
Powerful control unit for magnetic stirrers designed for microtiter plates. With a stirring power of 10 watts, which can be adjusted in 4 steps. With a wide speed setting between 100 and 2000 revolutions per minute, the stirring is even and continuous in the entire range. Speed and power can be easily set on the digital display. With the QuickSet function, the magnetic stirrer starts at maximum speed. The automatic memory saves the last set parameters. The housing of the controller is also made of easy-to-clean stainless steel. Also available with RS232 interface.
Specifications:
| Specifications: | MIXdrive 6 MTP | MIXdrive 12 MTP | MIXdrive 24 MTP | MIXdrive 96 MTP |
|---|---|---|---|---|
| Stirring points: | 6 | 12 | 24 | 96 |
| Stirring points distance: | 39 mm | 26 mm | 19 mm | 9 mm |
| Stirring volume: | 6 x 20 ml | 12 x 7 ml | 24 x 3.5 ml | 96 x 0.5 ml |
| Stirring power: | max. 10 W | 10 W | 10 W | 10 W |
| Operating conditions: |
Air: -10 °C - +50 °C Water: max. +50 °C |
Air: -10 °C - +50 °C Water: max. +50 °C |
Air: -10 °C - +50 °C Water: max. +50 °C |
Air: -10 °C - +50 °C Water: max. +50 °C |
| Dimensions: | 140 x 102 x 26 mm | 140 x 102 x 26 mm | 140 x 102 x 26 mm | 140 x 102 x 26 mm |
| Weight: | approx. 1.3 kg | approx. 1.3 kg | approx. 1.3 kg | approx. 1.3 kg |
| Specifications: | Mixcontrol eco | MIXcontrol MTP |
|---|---|---|
| Stirring speed: | 120 - 1200 rpm | 100 - 2000 rpm |
| Stirring power: | 10 W | 10 W |
| Stirring power setting: | - | 25 / 50 / 75 / 100 % |
| Operating conditions: | 0 °C - +40 | 0 °C - +40 °C |
| Housing material: | plastic | stainlesss steel |
| Dimensions: | 65 x 50 x 45 mm | 200 x 155 x 38 mm |
| Weight: | approx. 0.5 kg | approx. 1.9 kg |
