2mag special magnetic stirrers
2mag
Request a price

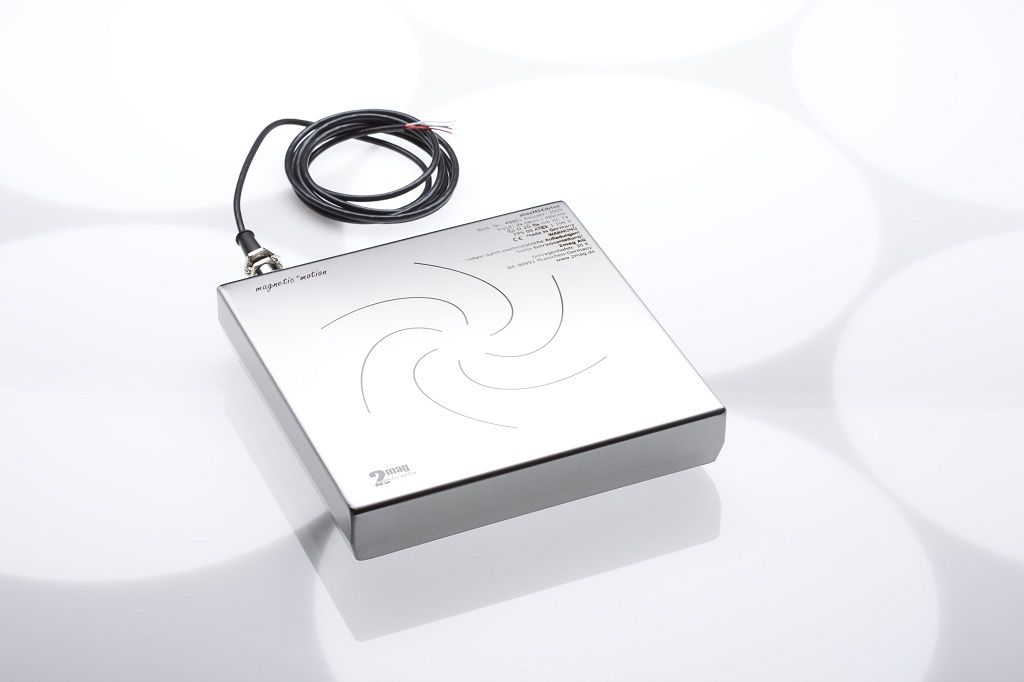

atexMIXdrive
Ultra-flat, explosion-proof magnetic stirrer with maintenance- and wear-free design. It is suitable for stirring up to 10 liters and ensures even and continuous stirring even at low speed. Depending on the controller, it is capable of 100 - 2000 revolutions per minute. It can also be used in CO2 incubators and drying cabinets up to +40 °C. Hermetically sealed, with a robust stainless steel housing. IP68 protection. It can also be used immersed in a water or oil bath. ATEX II 2G Ex mb IIC T4 Gb certified.

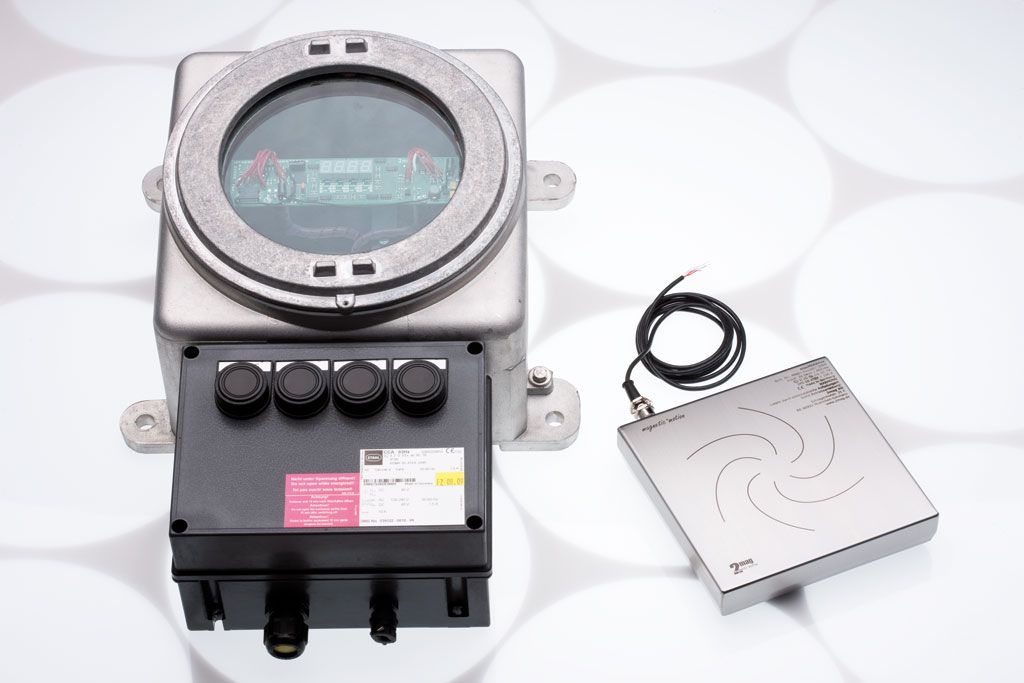

atexMIXcontrol
Explosion-proof control unit for the aforementioned magnetic stirrer. 1 atexMIXdrive can be connected to the controller at the same time. It can be adjusted in 4 stages with a stirring power of 20 watts, with a speed of 100 - 2000 revolutions per minute. With a digital display on which the speed and power can be adjusted. With QuickSet function for quick start at maximum speed. The automatic memory saves the last set parameters. ATEX II 2G Ex db eb IIC T6 Gb certificate
atexMIXcontrol cleanroom
Explosion-proof control unit for atexMIXdrive magnetic stirrer with 20 watt output, which can be adjusted in 4 levels. The speed can be adjusted between 100 and 2000 revolutions per minute, which ensures continuous stirring even at low revolutions. The speed and power can be adjusted via a digital display. With QuickSet function for quick start at maximum speed. The automatic memory saves the last set parameters. Certified according to ATEX II 3G Ex nA nL IIC T6

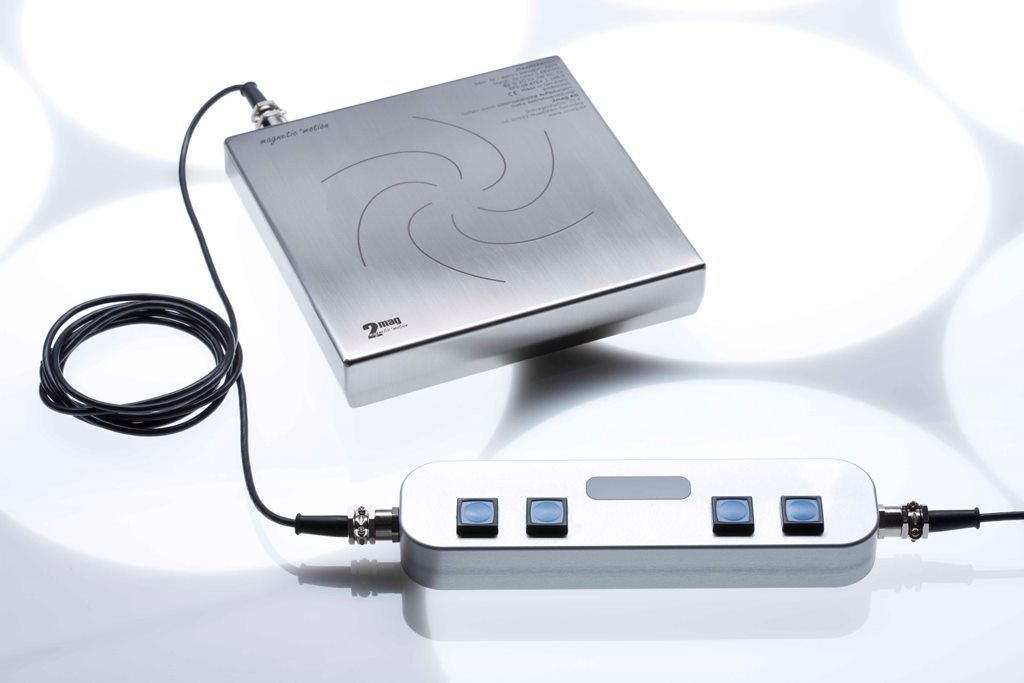

MIXcontrol 20
Universal controller for magnetic stirrers. With a power of 20 watts, which can be adjusted in 4 levels. 100 - 1600 revolutions per minute. Even and continuous stirring even at low speed. The higher power is suitable for stirring viscous and large quantities of materials. With digital display to adjust power and speed. With QuickSet function for quick start at maximum speed. The automatic memory saves the last set parameters. Easy to clean stainless steel housing.

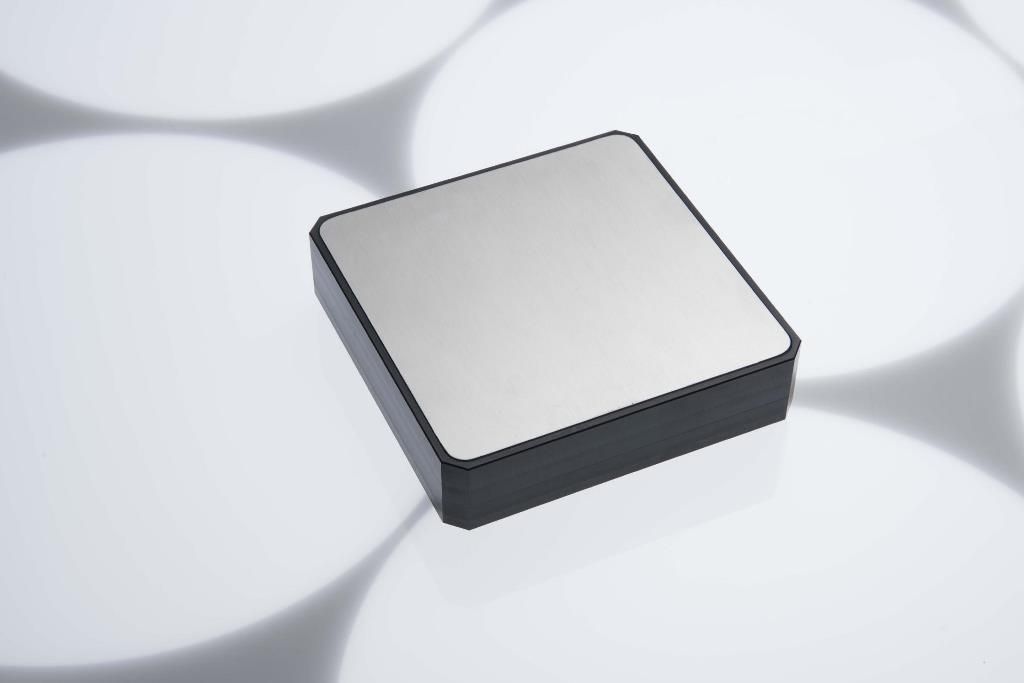

steriMIXdrive
Compact, ultra-flat magnetic stirrer with automatic stirrer monitoring system, up to 40 liters, designed for use in autoclaves. With a maintenance-free motor, with a large torque range of 100 - 1200 revolutions per minute. Pressure and vacuum resistant, easy to clean stainless steel / PPSU housing. IP68 protection. The mixWATCH integrated non-contact stirrer controller detects the movement of the stirring bar and then reduces the set speed by 100 rpm until the magnetic stirring bar is centered again, so it is also suitable for unattended operation.

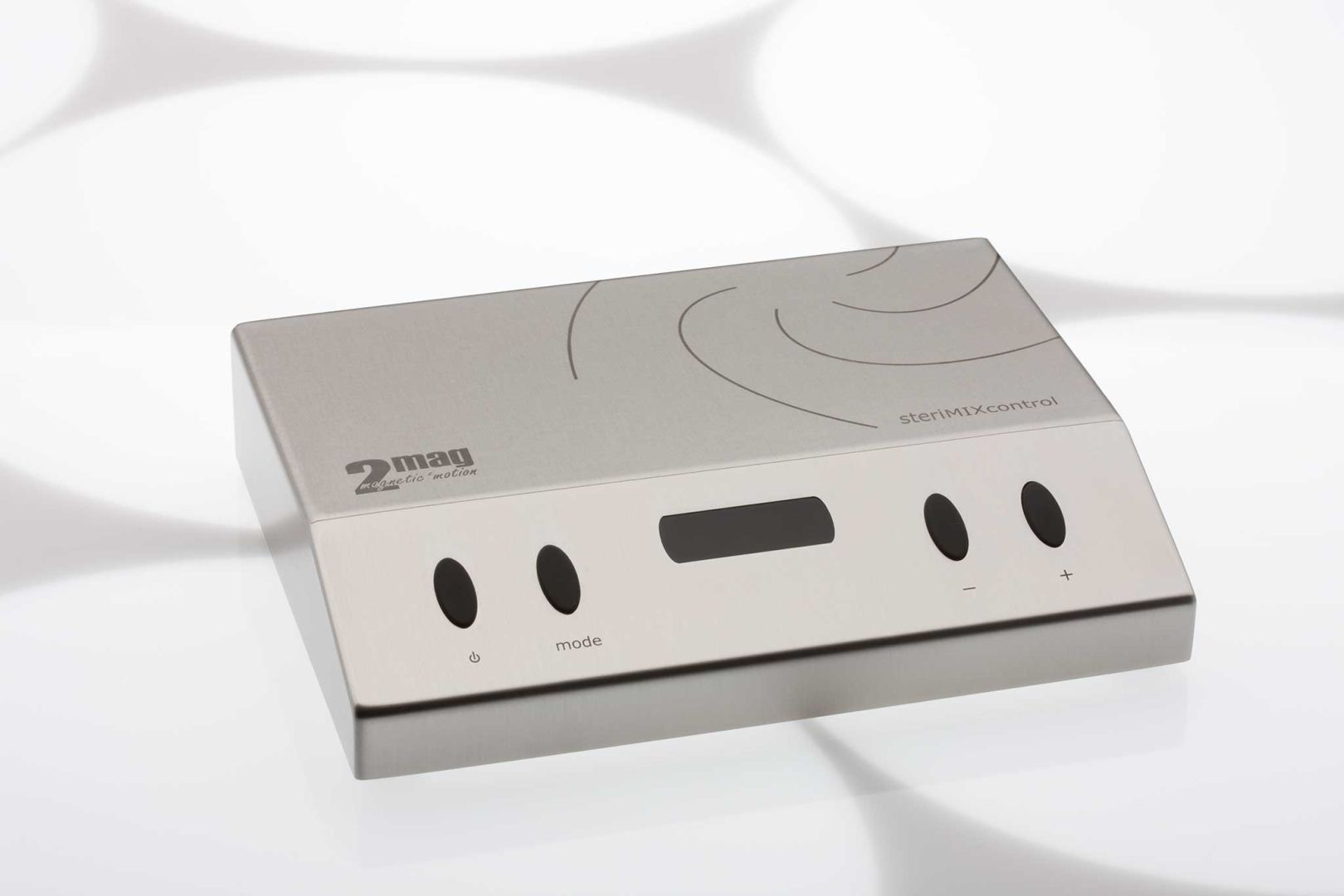

steriMIXcontrol
Powerful controller for steriMIXdrive magnetic stirrer with 20 watts of power. By setting an interval (max. 240 seconds), the stirrer restarts automatically. With 100 - 1200 revolutions per minute, which ensures uniform and continuous stirring even at low revolutions. The digital display allows easy setting of parameters. With QuickSet function for quick start at maximum speed. QuickStop function to prevent overrunning and glass breakage. The mixWATCH integrated non-contact stirrer controller detects the movement of the stirring bar and then reduces the set speed by 100 rpm until the magnetic stirring bar is centered again, so it is also suitable for unattended operation.
Specifications:
| Specifications: | atexMIXdrive | atexMIXcontrol | atexMIXcontrol cleanroom | MIXcontrol 20 |
|---|---|---|---|---|
| Compatibility: | atexMIXcontrol, atexMIXcontrol cleanroom, MIXcontrol 20 | atexMIXdrive | atexMIXdrive | atexMIXdrive |
| Stirring volume: | max. 10 liters | - | - | - |
| Stirring speed: | 100 - 2000 rpm | 100 - 2000 rpm | 100 - 2000 rpm | 100 - 1600 rpm |
| Stirring power: | 20 W | 20 W | 20 W | 20 W |
| Stirring power setting: | - | 5 / 10 / 15 / 20 W | 5 / 10 / 15 / 20 W | 25 / 50 / 75 / 100 % |
| Operating conditions: |
Air: -10 °C - +40 °C Water: max. +40 °C |
0 °C - +40 °C | 0 °C - 40°C | 0 °C - +40 °C |
| Dimensions: | 180 x 180 x 38 mm | 360 x 460 x 200 mm | 210 x 55 x 30 mm | 200 x 155 x 358 mm |
| Weight: | approx. 3.5 kg | approx. 18 kg | approx. 4.5 kg | approx. 0.9 kg |
| ATEX II 2G Ex mb IIC T4 Gb | ATEX II 2G Ex db eb IIC T6 Gb | ATEX II 3G Ex nA nL IIC T6 |
| Specifications: | sterMIXdrive | steriMIXcontrol |
|---|---|---|
| Compatibility: | steriMIXcontrol | steriMIXdrive |
| Stirring volume: | max. 40 liters | - |
| Stirring speed: | 100 - 1200 rpm | 100 - 1200 rpm |
| Stirring power: | 20 W | 20 W |
| Acceleration: | - | adjustable, 20 / 30 / 60 / 120 sec |
| Interval: | - | adjustable, 0 - 240 sec |
| Operating conditions: | -10 °C - +150 °C | 0 °C - +40 °C |
| Dimensions: | 140 x 140 x 32 mm | 200 x 155 x 38 mm |
| Weight: | approx. 15 kg | approx. 1.9 kg |
