Accessories for MINISTIL desalination devices
BWT
Request a price

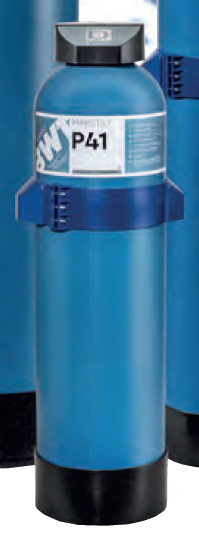

Technical data of cartridges:
The cartridges below are available empty (without resin). The resin filling in the cartridges can be purchased separately.
| Specifications: | P-12 | P-24 | P-41 |
|---|---|---|---|
| Material: | injection molded plastic | injection molded plastic | glass fiber reinforced plastic |
| Max. flow rate: | 300 l / hour | 600 l / hour | 1,800 l / hour |
| Desalination capacity 10 f°/ 20 f°: | 2,100 l / 1,050 l | 3,600 l / 1,800 l | 6,800 l / 3,400 l |
| Desalination capacity 10°nk / 20°d: | 1,170 l / 580 l | 1,800 l / 900 l | 3,800 l / 1,900 l |
| Operating pressure max: | 6 bar | 6 bar | 6 bar |
| Operating temperature max: | 30 °C | 30 °C | 30 °C |
| Power: | 230 V / 50 Hz | 230 V / 50 Hz | 230 V / 50 Hz |
| Hydraulic connection: | 3/4" | 3/4" | 3/4" |
| Dimensions (d x h): | 230 x 610 mm | 230 x 870 mm | 250 x 990 mm |
| Weight: | 15 kg | 27 kg | 50 kg |
Technical data of conductivity measuring instrument heads:
Connector head with color display for checking conductivity, suitable for all plastic Ministil cartridges. With bar chart and classic display modes. In the bar graph display, the current conductivity value is displayed in the form of a bar graph (on the right), the current conductivity value (in the middle) and the current flow power in the form of a bar graph (on the left). By making the appropriate settings, the display can show the current temperature (top center), the current residual capacity in % of the total capacity as a bar graph, a circle (middle) and the current flow rate in liters / hour. The control head gives a signal when it becomes necessary to replace the cartridge.
| Specifications: | 1iD | 2iD |
|---|---|---|
| High purity water conductivity measurement and display | ● | ● |
| Adjustable, stepless conductivity alarm signal | ● | ● |
| WLAN enabled | ● | ● |
| Flow performance measurement and display | ● | ● |
| Solenoid valve 3/4", 24 V DC | ● | |
| Power adapter: | 230 V AC / 9 V DC (7,2 W) | 230 V AC / 24 V DC (15 W) |
| Power: | 230 V / 50 Hz | 230 V / 50 Hz |
| Hydraulic connection | 3/4" | 3/4" |
| Dimensions (W x D x H): | 175 x 210 x 70 mm | 175 x 210 x 70 mm |
| Weight: | 1.6 kg | 1.6 kg |
