Automatic capper/decapper devices for LVL tube

Laboreszköz katalógus Marketplace 0Cart

LVL Technologies

Request a price

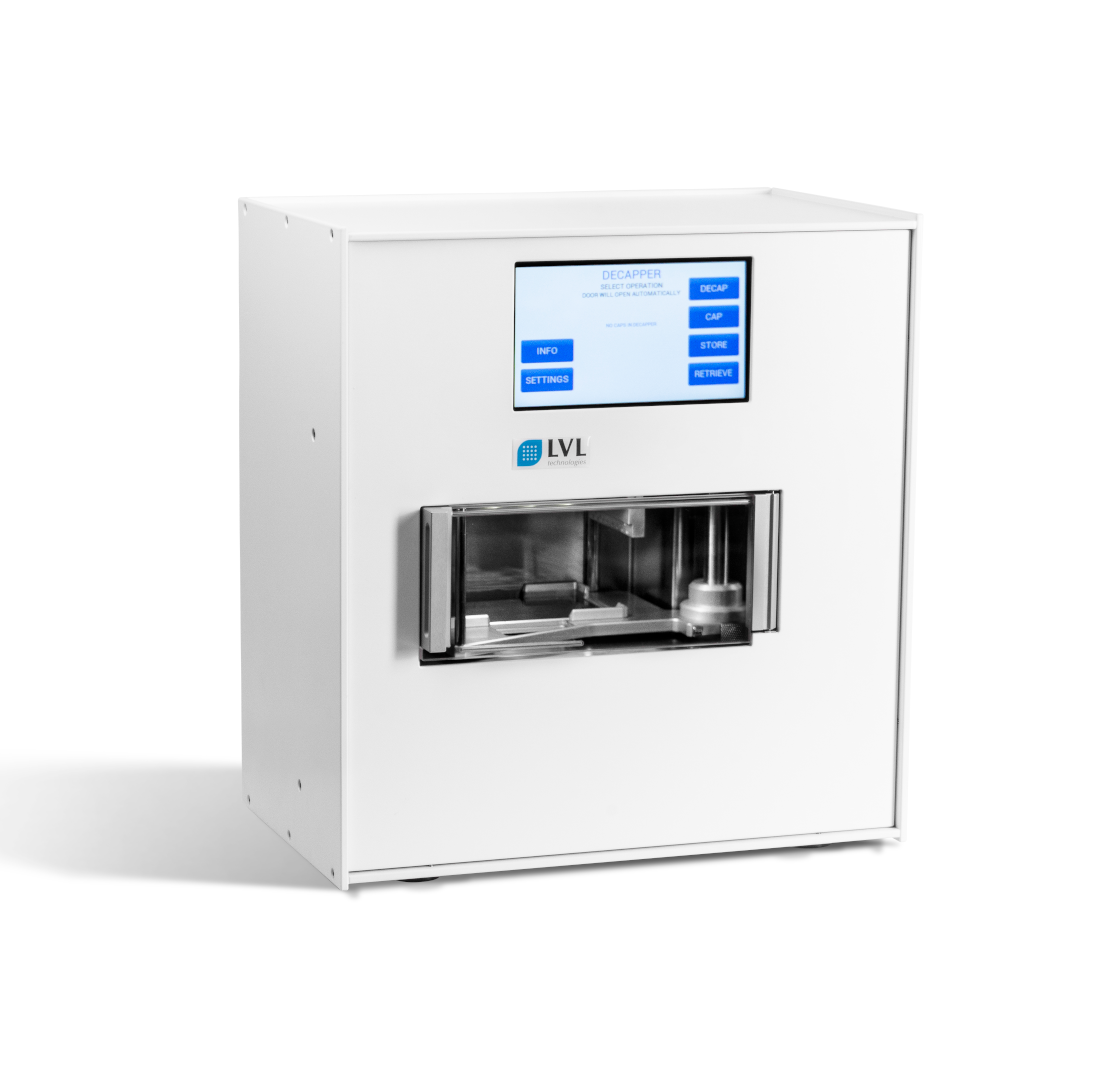

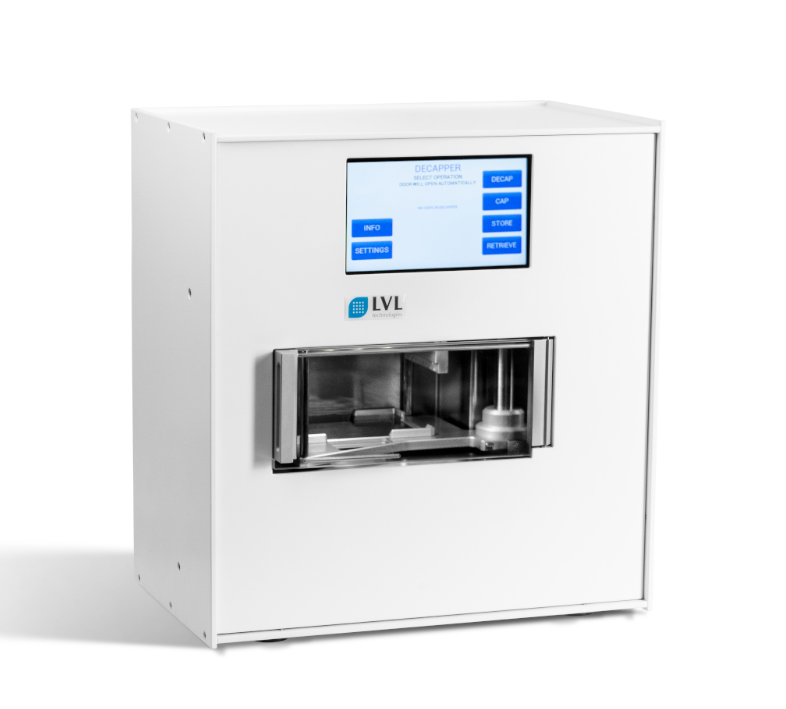

Fully automatic capper/decapper for large sample volumes. It can open or close an entire rack at once. The unscrewed caps can be transferred to a cap rack or kept in the device - to be precise, on the bits - until rewinding. The entire workflow is completed in less than a minute.

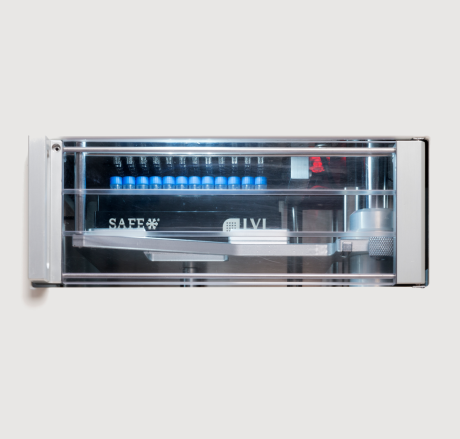

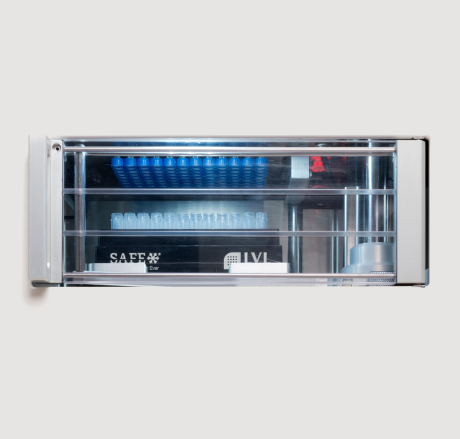

The device's "rack-to-head" technology ensures higher reliability and easier maintenance. The device identifies the inserted rack based on its barcode, detects its height, and then lifts the rack to the bits. After removing or replacing the caps, it lowers the rack to the starting position.

The touch screen control ensures easy operation, while the robust design ensures a long service life. Suitable for integration into automated systems.

The compatibility of the four different versions covers all LVL screw-capped tubes. Each version covers 1 rack type. For the 96-position SBS standard rack tubes, two types of devices are available, one for external and one for internal threaded tubes. The different types work with the correct torque for the compatible tubes.

Using the correct torque is very important for proper closure. Caps that are too loosely screwed on will not provide a leak-proof seal, while too much torque can damage the thread, which can also lead to an improper seal. The appropriate torque for each LVL tube has been determined based on the rack type (SBS 96 - 7Ncm, SBS 48 - 15Ncm, SBS 24 - 15Ncm).

More details

Specifications
Decapping time:	42 sec
Capping time:	45 sec
Control:	Touchscreen
Dimensions (h x w x d):	408 x 234 x 388 mm
Weight:	23 kg


code

Name

Compatible type

net price

amount

in stock

SAFE CAP 24 CHANNEL XT integrable, automatic 24-position capper for screw caps, externally threaded tubes

625.CDC24CHXTDD

automatic capper/decapper

SBS 24 XT external thread tubes

Request a price

"It offers a fully automated solution for capping and decapping screw caps up to 24 tubes. Ideal for laboratories where fast and reliable capping and decapping are required.The caps that have been unscrewed can remain in the device until they are screwed on or can be placed in a cap rack. Cap screws with spring steel balls for gentle use of screw caps. Innovative and low-maintenance rack-to-head technology. Automatic height and rack barcode detection. Can be used as an integrated or standalone system. With touch screen control. Capping time: approx. 45 seconds Decapping time: approx. 42 seconds Dimensions (H x W x D): 408 x 234 x 388 mm Weight: 23 kg Compatibility: - Rack: SBS 24 XT -Tubes: XXLX2000 / 4000 / 6000 / 8000"

SAFE CAP 48 CHANNEL XT integrable, automatic 48-position capper for screw caps, external thread tubes

625.CDC48CHXTDD

automatic capper/decapper

SBS 48 XT external thread tubes

Request a price

"It offers a fully automated solution for capping or decapping screw caps up to 48 tubes. Ideal for laboratories where fast and reliable capping and decapping is required. The caps that have been unscrewed can remain in the device until they are screwed on or can be placed in a cap rack. Cap screws with spring steel balls for gentle use of screw caps. Innovative and low-maintenance rack-to-head technology. Automatic height and rack barcode detection. Can be used as an integrated or standalone system. With touch screen control. Capping time: approx. 45 seconds Decapping time: approx. 42 seconds Dimensions (H x W x D): 408 x 234 x 388 mm Weight: 23 kg Compatibility: - Rack: SBS 48 XT - Tubes: XLX500 / 2000 / 4000 / 1800V"

SAFE CAP 96 CHANNEL XT integrable, automatic 96-position capper for screw caps, external thread tubes

625.CDC96CHXTDD

automatic capper/decapper

SBS 96 XT external thread tubes

Request a price

"It offers a fully automated solution for capping or decapping screw caps up to 96 tubes. Ideal for laboratories where fast and reliable capping and decapping are required. The caps that have been unscrewed can remain in the device until they are screwed on or can be placed in a cap rack. Cap screws with spring steel balls for gentle use of screw caps. Innovative and low-maintenance rack-to-head technology. Automatic height and rack barcode detection. Can be used as an integrated or standalone system. With touch screen control. Capping time: approx. 45 seconds Decapping time: approx. 42 seconds Dimensions (H x W x D): 408 x 234 x 388 mm Weight: 23 kg Compatibility: - Rack: SBS 96 XT - Tubes: SX260 / 300, MX500, LX1000"

SAFE CAP 96 CHANNEL IT integrable, automatic 96-position capper for screw caps, internal thread tubes

625.CDC96CHITDD

automatic capper/decapper

SBS 96 IT internal thread tubes

Request a price

"It offers a fully automated solution for capping and decapping screw caps up to 96 tubes. Ideal for laboratories where fast and reliable capping and decapping is required. The caps that have been unscrewed can remain in the device until they are screwed on or can be placed in a cap rack. Cap screws with spring steel balls for gentle use of screw caps. Innovative and low-maintenance rack-to-head technology. Automatic height and rack barcode detection. Can be used as an integrated or standalone system. With touch screen control. Capping time: approx. 45 seconds Decapping time: approx. 42 seconds Dimensions (H x W x D): 408 x 234 x 388 mm Weight: 23 kg Compatibility: - Rack: SBS 96 IT - Tubes: MI500, LI500"
