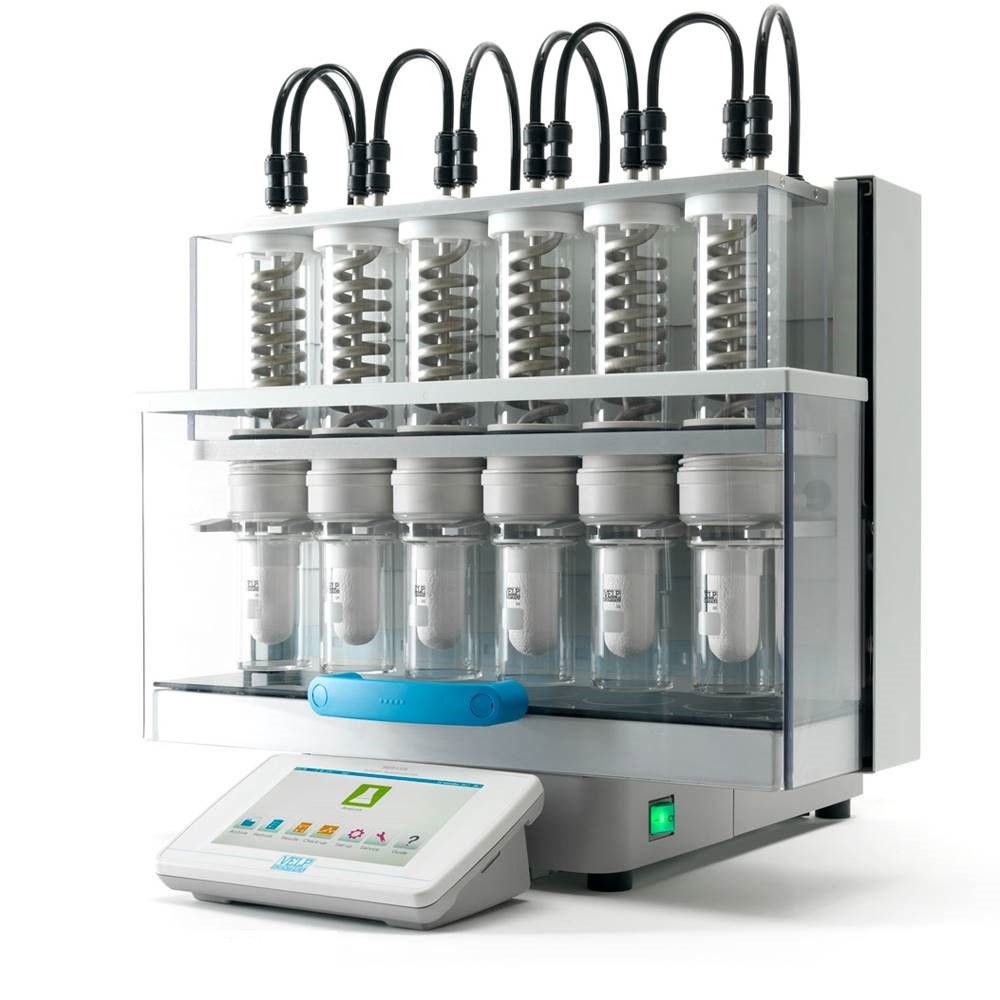

VELP SER 158/6 automatic extractor, 6 position
VELP SER 158/6 automatic extractor, 6 position

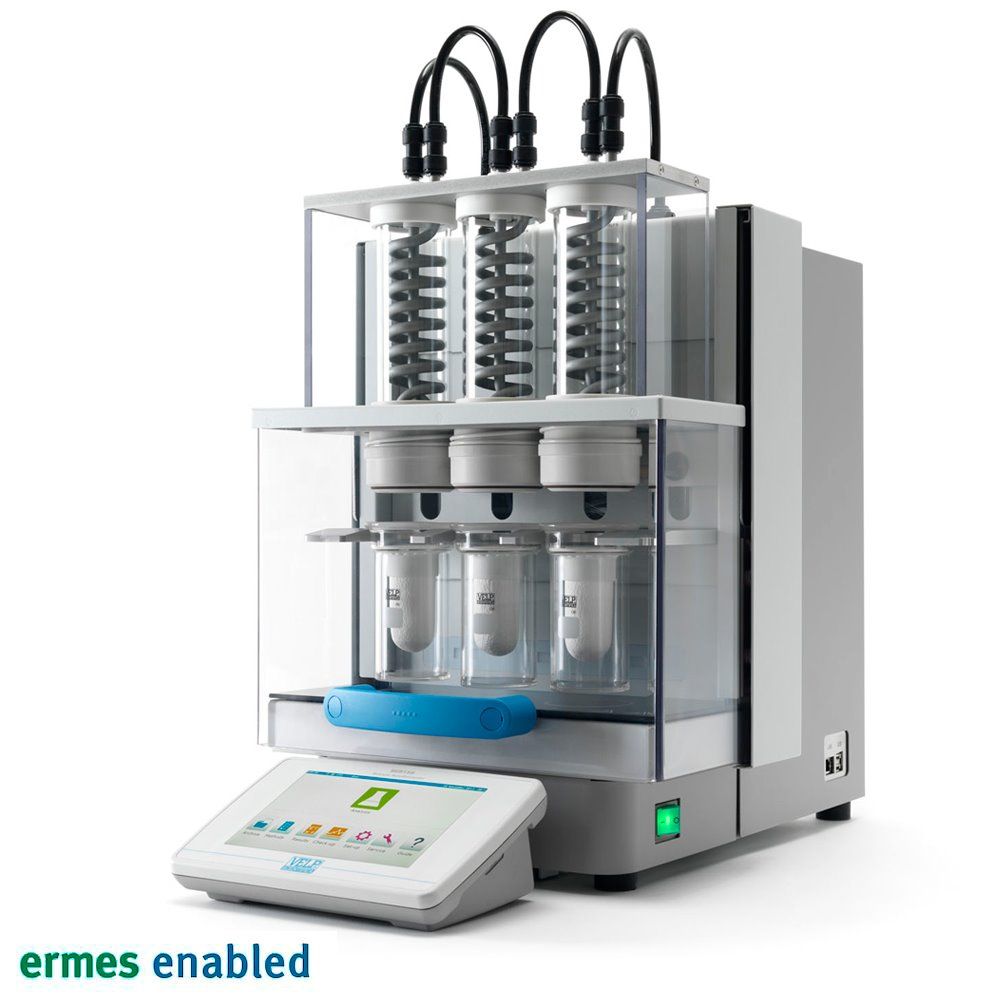

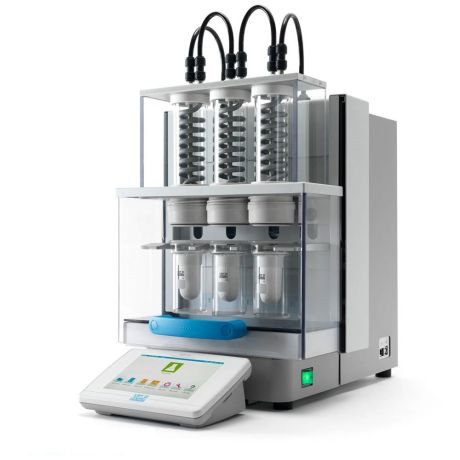

VELP SER 158/3 automatic extractor, 3 position
VELP SER 158/3 automatic extractor, 3 position
VELP SER 158/6 automatic extractor, 6 position
VELP SER 158/3 automatic extractor, 3 position

Automatic extractor

Velp Scientifica

Request a price

The VELP SER 158 series extractor family is fully automatic. After loading the samples, we start the device, at the end of the extraction, the device signals and we can take out the sample.

Main field of use:

  • Fat determination: food, feed, rubber, soil, waste water, fertilizer, textile, paper.
  • Sample preparation, e.g. for the determination of pesticides, phenols, PCBs, dioxins, plasticizers, dyes, PAH, EOX.

We can determine all extractable substances (quantitative analysis) and carry out qualitative analysis of the extracted components (qualitative analysis, e.g. chromatography). The application is based on the Randall method, according to which the sample can be plastic or solid. Steps of the method: immersion, solvent removal, washing, solvent recovery, cooling.

SER158 meets all standard requirements (AOAC, TAPPI, UNI, EPA, APHA, ASTM, AWWA, WEF).

This method has two main advantages over the "traditional" Soxhlet method:

  • can be about 5 times faster (hot solvent vs. cold solvent)
  • uses less solvent (good efficiency, >90% solvent recovery)

Due to the above, the RANDALL system extractor operates with significantly lower analysis costs than "traditional" Soxhlet extractors.



More details

Specifications: VELP SER 158/3 VELP SER 158/6
Controller: color touch screen color touch screen
Number of programs: 49  built.in, 29 user defined 49  built-in, 29 user defined
Sample weight: 0.5 - 15 g (generally 2-3g) 0.5 - 15 g (generally 2-3g)
Reproducibility (RSD): <1% <1%
Temperature range: 100 - 260°C 100 - 260°C
Solvent volume: 30 - 100 ml 30 - 100 ml
Solvent recovery: >90% >90%
Cooling water consumption: 1 liters / minute 1 liters / minute
Consumption: 850 W 1.500 W
Dimensions: 358 x 546 x 570 mm 546 x 546 x 450 mm
Weight: 29 kg 40 kg

Properties:

SER158 extrakció

Safety

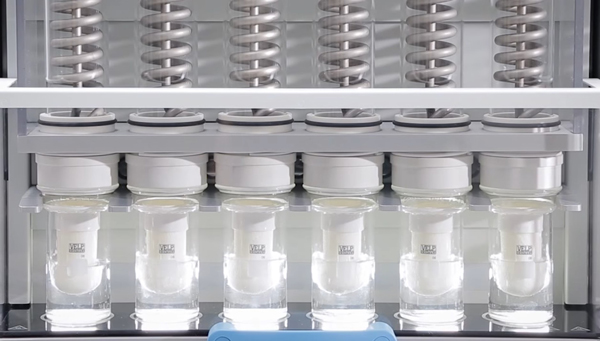

  • Unique, completely closed solvent feeding option (option). It does not burden the environment and the health of the user.
  • At the end of the process, the device automatically lifts the jars holding the samples - thus preventing the samples from burning.
  • Protective plate: protects the operator from splashing materials.
  • Used internal solvent collection tank.
  • IP55 protection

SER158 kijelző

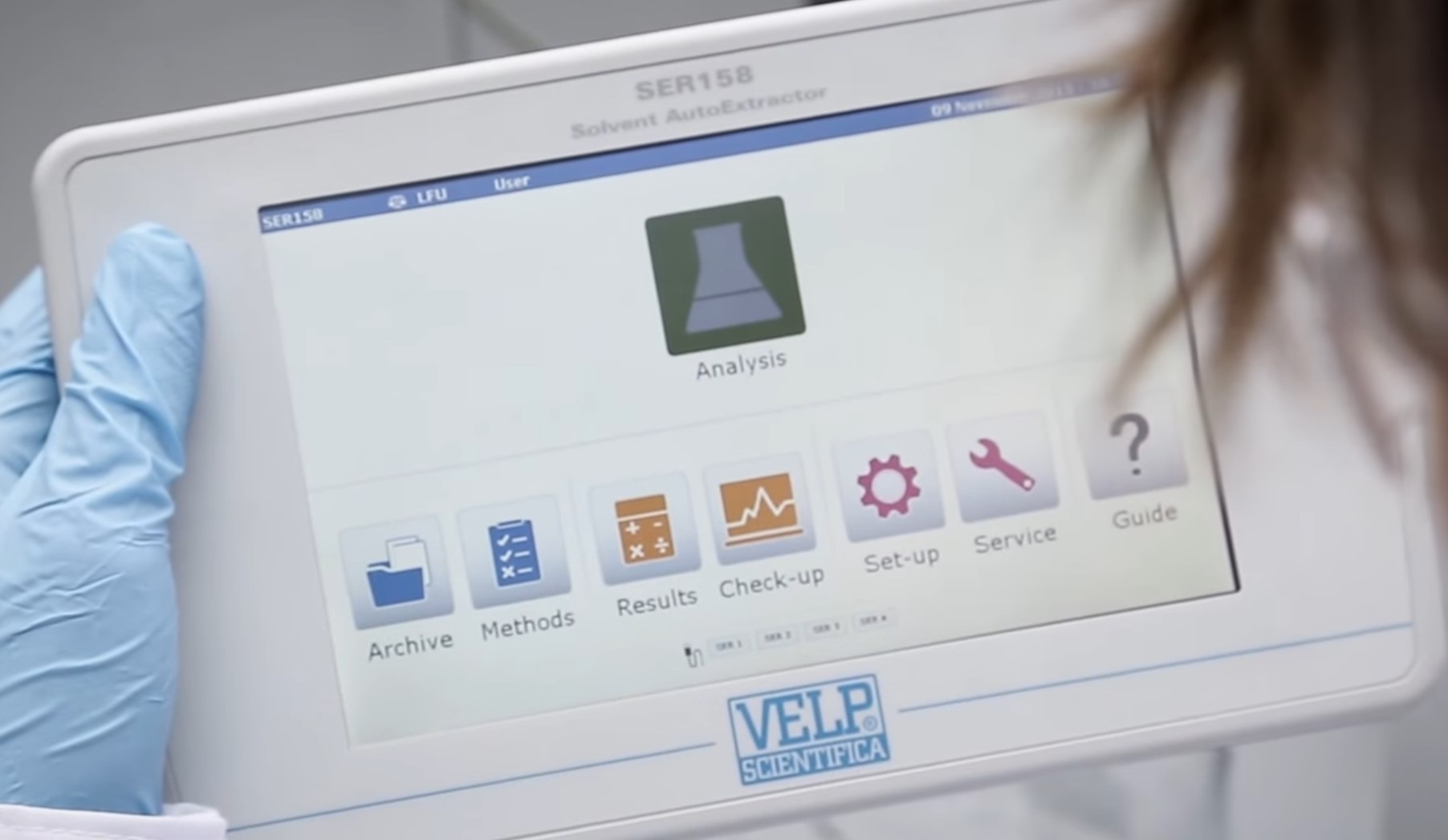

Easy-to-use control unit:

  • Controller: 7" touch screen
  • 1 controller max. It can handle 4 SER158/6 units
  • Balance connection option, USB, GLP
  • Manufacturer and user defined programs
  • Saving, evaluating and exporting data

Szabadalmaztatott titán kondenzátor

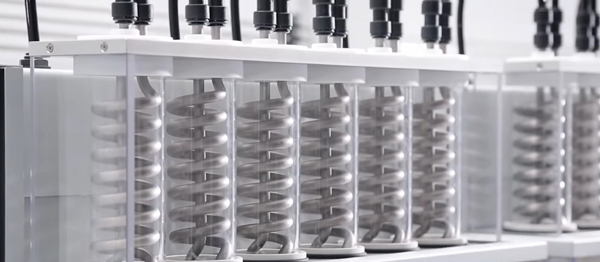

Patented titanium condenser

  • Lower water consumption thanks to its excellent heat exchanger properties.

Ermes felhő platform

ERMES connection possibility

  • The device is optionally connected to the Velp cloud service, which enables remote access (from the office, home) using a PC, smartphone or tablet, continuous monitoring, software updates, even data analysis with group rights, and the preparation of reports

SER 158 tartozékok

Wide range of accessories

  • According to the user's needs: barcode reader, extraction vessels in different sizes and materials, extraction sleeves, seals according to the used solvent, vessel holders, etc.
  • The delivered device contains all the accessories needed to get started, including 1 box (25 pcs) of extraction sleeves.
  • Additional optional accessories and sleeves required for continuous work must be ordered separately.

code
Name
Size
Places
Power
net price
amount
in stock
SER 158/3 automatic solvent extractor, 3 places
331.S303A0390
VELP SER 158/3 automatic extractor
358 x 546 x 570 mm
3 pc
850 W
Request a price
pc

"3-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

"3-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

SER 158/6 automatic solvent extractor, 6 places
331.S303A0380
VELP SER 158/6 automatic extractor
546 x 546 x 570 mm
6 pc
850 W
Request a price
pc

"6-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

"6-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

SER 158/3 automatic solvent extractor, 3 places
331.F303A0390
VELP SER 158/3 automatic extractor without controller
358 x 546 x 450 mm
3 pc
630 W
Request a price
pc

"3-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

"3-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

SER 158/6 Automatic solvent extractor, 6 places
331.F303A0380
VELP SER 158/6 automatic extractor withput controller
546 x 546 x 450 mm
6 pc
630 W
Request a price
pc

"6-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

"6-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

IKA Rotavisc viscometers
Velp automatic extractor
Back

related products

Soxhlet extractor, multiple positions
Soxhlet extractor, multiple positions
Soxhlet extractor, multiple positions
Soxhlet extractor, multiple positions

VELP's extractors work according to the RANDALL method. This is a fast, less solvent-requiring and therefore more cost-effective process than the "traditional" Soxhlet.
