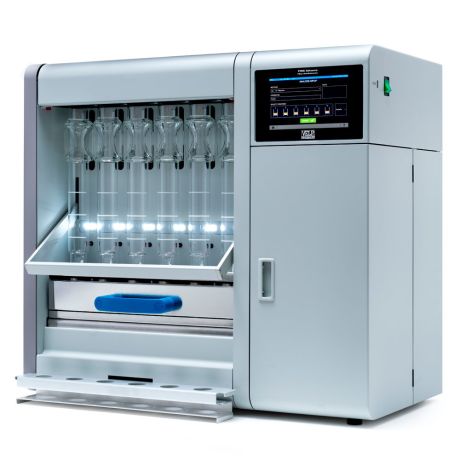

Fully automatic fiber analyser. The sample remains in the sample holder during all stages of the process (extraction, digestion, washing), thus avoiding sample and fiber loss during the process.
It is also suitable for crude fiber determination using the Weende method or detergent fiber determination with fiber fractions using the Van Soest method: NDF, ADF, ADL. Provides accurate results that comply with ISO and AOAC methods.
It requires only 2 minutes operation time per sample. All necessary solutions and chemicals stored inside the device in bottles, which are automatically heated and dispensed by the device. An LED light indicates the active column.
The 7" touch screen display ensures easy use. With pre-installed applications that comply with official methods and a protocol library suitable for save individual applications. Frequently used applications can be marked as "favorites", which can speed up daily work.
With 3 USB ports (optionally bar code reader or analytical balance can be connected). Connecting the balabnce makes data transfer and calculation of results simple and fast.
By connecting to the Velp ERMES cloud-based system, the device can be checked and controlled at any time.
Specifications:
| Specifications: | FIWE advance |
|---|---|
| Number of samples: | max 6. |
| Capacity/day: |
36 (Crude Fiber / Wendee Method) Up to 60 (Other methods) |
| Sample quantity: | 0,5 - 3 g |
| Measuring range: | 0,1 - 100% |
| Repetability: | ± 1% relative at 5%-30% fibre amount |
| Lighting: | LED |
| Reagent pre-heating time: | 5 - 7 minute |
| Time from preheated temperature to boiling: | 5 - 10 minute |
| Water consumpton: | 1,0 liter / minute |
| Protocol library: | 5 standard + 30 customizable methodes |
| Power consumption: | 2.100 W |
| Dimensions: | 735 x 420 x 666 mm |
| Weight: | 57 kg |
