BIOBASE rollable fume hood with built-in activated carbon filter

Laboreszköz katalógus Marketplace 0Cart

Fume hood with built-in carbon filter

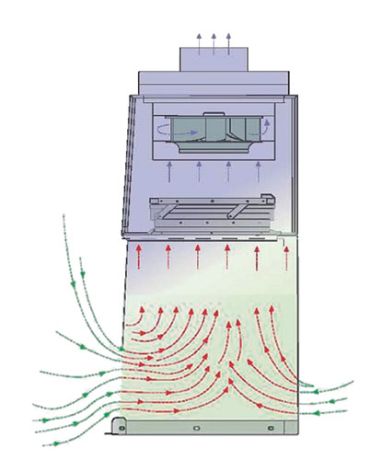

Air flow in the cabinet with carbon filter

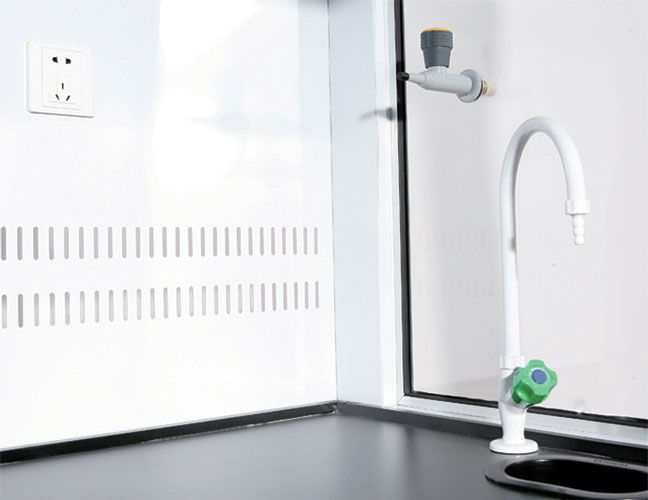

Taps for the activated carbon filtered cabinets

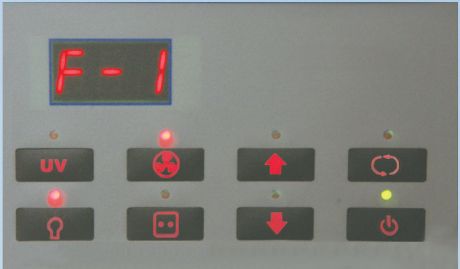

Controller of the cabinet wiht activated carbon

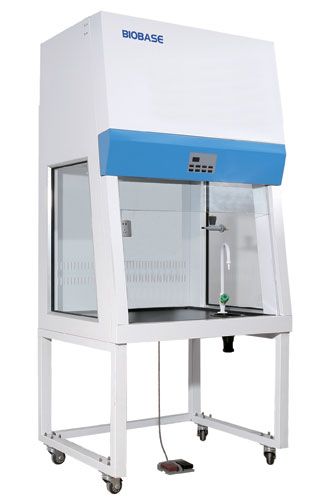

BIOBASE rollable fume hood with built-in activated carbon filter

Biobase

Request a price

The frame of the cabinet is 1.2 mm thick steel plate protected with corrosion-resistant paint.

All the air coming out of the cabinet passes through the built-in activated carbon filter, so no dangerous acid vapors or solvent vapors get into the environment.
The front (engine) window and side windows are made of tempered, 5 mm thick glass.
The work table is a chemical-resistant "physiochemical" board.
Working height: 850 mm.

Cabinet equipment:

microprocessor control, LCD display
the built-in exhaust fan, its speed can be adjusted in 9 steps
the activated carbon filter is also integrated
the window is motorized, maximum height: 520 mm.
fluorescent lighting, UV lamp,
one pc. waterproof electrical plug,
foot switch
water tap, gas tap, drain,
mounted on a rolling frame.
4 meters of flexible (300 mm) hose for connection to the external extractor.

Carbon filters can be requested with two types of filling: general and for other chemical applications (odors, solvents). The weight of the filling of the filters is adjusted to the size of the cabinets: 7.5, 9 and 12 kg.

Specifications:	FH1000(X)	FH1200(X)	FH1500(X)
Consumption:	400 W	400 W	400 W
Air floew velocity:	0,3-0,8 m/s	0,3-0,8 m/s	0,3-0,8 m/s
Noise:	≤68 dB	≤68 dB	≤68 dB
Lamp:	Fluorescent lighting and UV lamp	Fluorescent lighting and UV lamp	Fluorescent lighting and UV lamp
Workplace internal height:	750 mm	750 mm	750 mm
Internal dimensions:	880 x 840 x 2150 mm	1080 x 730 x 745 mm	1380 x 730 x 745 mm
External dimensions:	1000 x 840 x 2150 mm	1200 x 840 x 2150 mm	1500 x 840 x 2150 mm
Weight:	230 kg	253 kg	290 kg


code

Name

net price

amount

in stock

Fume hood, 80 cm internal width, with built-in activated carbon filter

19.171080

FH1000(X)

Request a price

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The front and side windows are made of tempered glass. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The speed of the built-in exhaust fan can be adjusted in 9 steps - an active carbon filter is also built in - The window is motorized, maximum height: 450 mm. - fluorescent lighting (15 W), UV lamp (20 W), - one pc. waterproof electrical plug, - foot switch - water tap, gas tap, drain, - mounted on a rolling frame. - 4 meters of flexible (300 mm) pipe for connection to the external extractor. Air speed: 0.3-0.8 m/s. Noise level: < 60 dB Energy consumption: 150 Watt Workspace dimensions: 800x750x745 mm. External dimensions: 1,000x800x2,200 mm. Weight: 230 kg"

Fume hood, 108 cm internal width, with built-in activated carbon filter

19.171100

FH1200(X)

Request a price

"The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The front and side windows are made of tempered glass. The work table is a chemical-resistant ""physiochemical"" board. Working height: 850 mm. Cabin equipment: - microprocessor control, LCD display - The speed of the built-in exhaust fan can be adjusted in 9 steps - an active carbon filter is also built in - The window is motorized, maximum height: 450 mm. - fluorescent lighting (18 W), UV lamp (30 W), - two pcs. waterproof electrical plug, - foot switch - water tap, gas tap, drain, - mounted on a rolling frame. - 4 meters of flexible (300 mm) hose for connection to the external extractor. Air speed: 0.3-0.8 m/s. Noise level < 60 dB Energy consumption: 150 Watt (+ sockets) Workspace dimensions: 1,082 x 740 x 735 mm. External dimensions: 1,200x800x2,200 mm. Weight: 320 kg"

Fume hood, 138 cm internal width, with built-in activated carbon filter

19.171140

FH1500(X)

Request a price

"Cab type: FH1500(X) The frame of the booth is 1.2 mm thick steel plate protected with corrosion-resistant paint. The front and side windows are made of tempered glass. The work table is a chemical-resistant ""physiochemical"" board. Working height: 750 mm. Cabin equipment: - microprocessor control, LCD display - The speed of the built-in exhaust fan can be adjusted in 9 steps - an active carbon filter is also built in - The window is motorized, maximum height: 520 mm. - LED lamp (16 W), UV lamp (20 W, 2x), 253.7 nm - two pcs. waterproof electrical plug (max. 500W load capacity), - foot switch - water tap, gas tap, drain, - mounted on a rolling frame. - 4 meters of flexible (300 mm) hose for connection to the external extractor. Air speed: 0.3-0.8 m/s. Noise level < 60 dB Energy consumption: 235 Watts Workspace dimensions: 1,380x750x745 mm. External dimensions: 1,500x800x2,200 mm. Weight: 280 kg"
