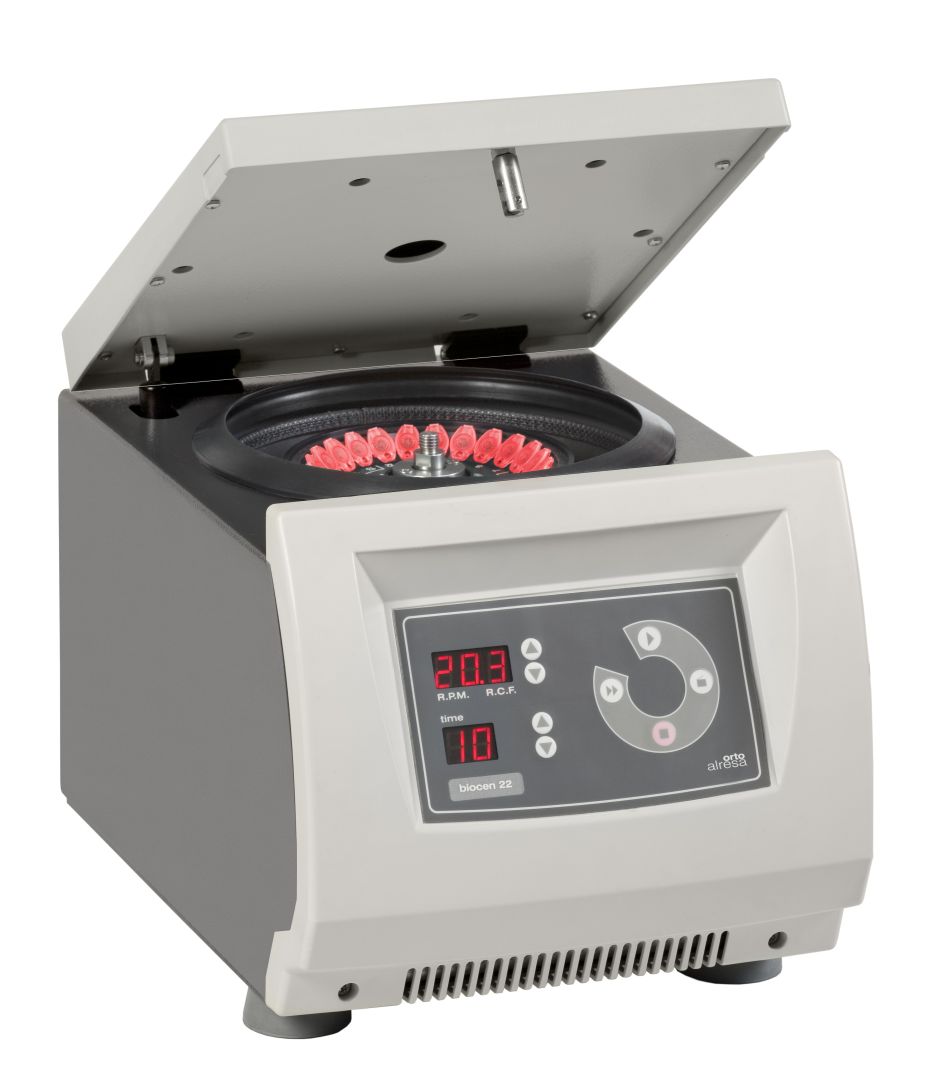

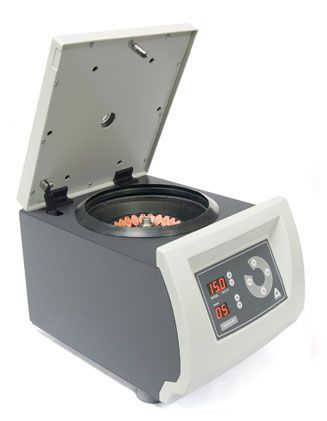

BIOCEN 22 small laboratory centrifuge and BIOCEN 22R small refrigerated laboratory centrifuge

Ortoalresa

Request a price


Small device for microbiology, genetics and molecular biology laboratories. Available with three types of hermetically sealed rotors for centrifugation of microtubes, PCR tubes or capillaries.

The control panel of the laboratory centrifuge is the same as that of the previously described MICROCEN 24 type: the digital (LED) display shows the current speed and the remaining time of operation. As long as the "short cycle" button is pressed, the centrifuge operates at maximum speed or at the selected speed. The last set parameters are stored in the memory.

The open lid, start, stop and short-cycle functions are indicated by lights. The degree of acceleration and braking of the rotor can be changed according to two operating modes - by selecting fast or gentle mode. For accelerations, see the table on the rotors and adapters page.

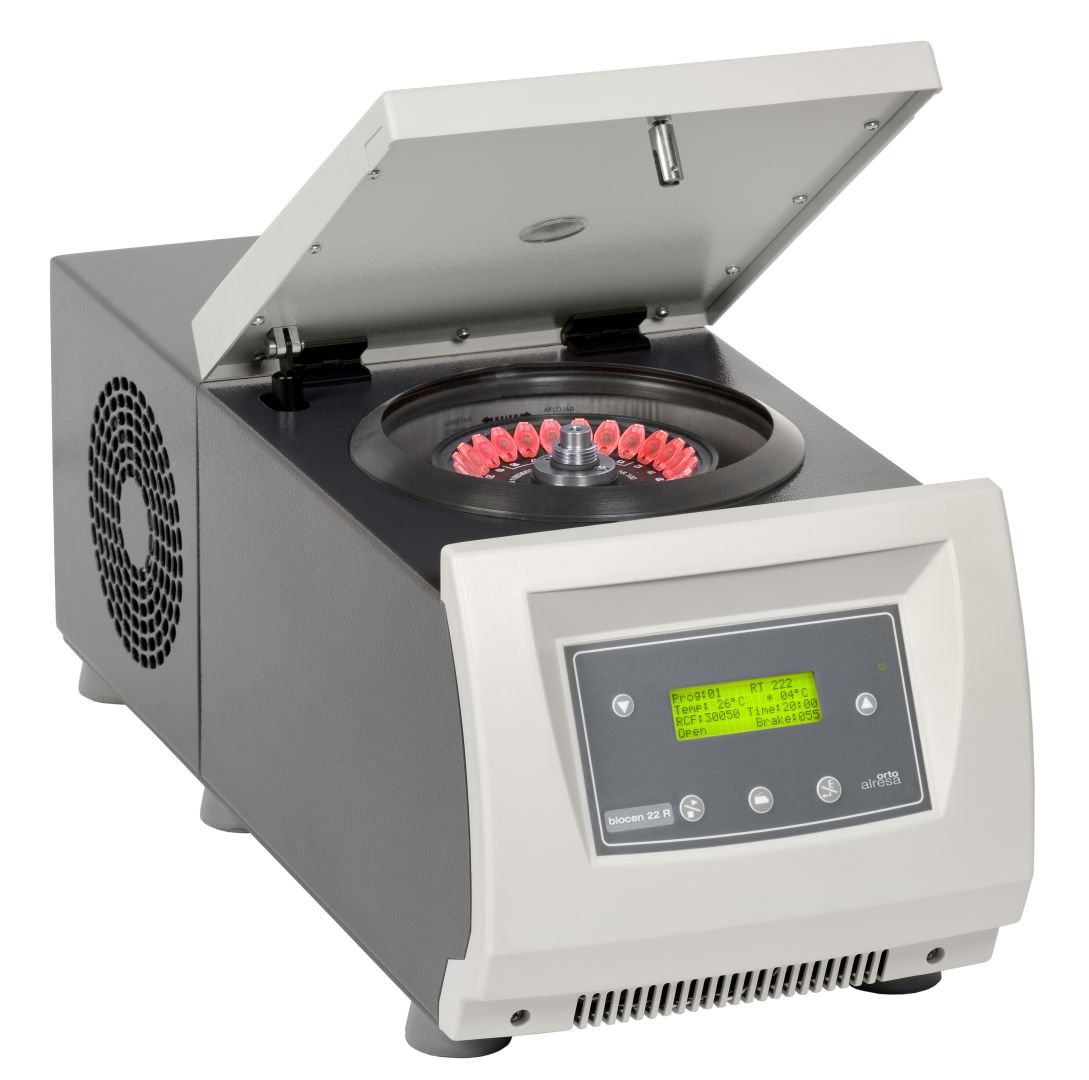

The Biocen 22R laboratory centrifuge has similar features to the Biocen 22 laboratory centrifuge. Refrigerable laboratory centrifuge temperature range: - 20 °C to +40 °C. Cooling maintains sample temperature even at maximum speed.

Specifications: BIOCEN 22 BIOCEN 22R
Consumption: 360 Watt 540 Watt
Timer: 1 – 99 minute / continuous 1 – 99 minute / continuous
Speed setting: 100 rpm 100 rpm
Max RPM: 15,000 rpm 18,100 rpm
Max. RCF: 21,885 xg (rotor dependent) 31,865 xg (rotor dependent)
Dimensions: 270 x 380 x 270 mm 270 x 650 x 280 mm
Weight: 16 kg 41 kg

More details
code
Name
net price
amount
in stock
41.CE146
BIOCEN 22 small laboratory centrifuge
Request a price
pc

Features: LED screen:• Shows RPM/ RCF and time.• Speed programming in 50 RPM/ 10 xg steps.• Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.• Timer from 1 to 99 min. programmable in 1 min. steps and hold position.• Acceleration and deceleration control in 3 steps: fast, soft and free.• Acoustic and visual messages on screen warning the user the equipment status. Easy to use: • Microprocessor controlled.• Induction motor maintenance free (brushless).• Rotors list on memory.• Noise level: below 60 dB.• Start, stop, open lid and short spin with adjustable speed buttons.• Option of free/locked adjustment of RPM/ RCF along the run.• Automatic open lid, programmable.• Low heigh for easy access.• Last values remain in memory.• Over-speed protection. Safety: • Lid provided with security systems:- Automatic lid lock system, motorized.- Emergency lid-lock release.- Locking and protection against opening along the run.- Lid dropping protection.- Port in the lid for calibration and operation checking. - Unbalance detection and switch off.• Protection safety ring between the centrifugation chamber and the housing.• Chamber of centrifugation in stainless steel (easy cleaning).• Rotors can be removed with the lid closed. Hermetic lids.• Rotors and adapters autoclavable, easy to install by the user.• Forced ventilation to reduce temperature increasing• Automatic disconnection for energy saving, with deactivation option

Features: LED screen:• Shows RPM/ RCF and time.• Speed programming in 50 RPM/ 10 xg steps.• Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.• Timer from 1 to 99 min. programmable in 1 min. steps and hold position.• Acceleration and deceleration control in 3 steps: fast, soft and free.• Acoustic and visual messages on screen warning the user the equipment status. Easy to use: • Microprocessor controlled.• Induction motor maintenance free (brushless).• Rotors list on memory.• Noise level: below 60 dB.• Start, stop, open lid and short spin with adjustable speed buttons.• Option of free/locked adjustment of RPM/ RCF along the run.• Automatic open lid, programmable.• Low heigh for easy access.• Last values remain in memory.• Over-speed protection. Safety: • Lid provided with security systems:- Automatic lid lock system, motorized.- Emergency lid-lock release.- Locking and protection against opening along the run.- Lid dropping protection.- Port in the lid for calibration and operation checking. - Unbalance detection and switch off.• Protection safety ring between the centrifugation chamber and the housing.• Chamber of centrifugation in stainless steel (easy cleaning).• Rotors can be removed with the lid closed. Hermetic lids.• Rotors and adapters autoclavable, easy to install by the user.• Forced ventilation to reduce temperature increasing• Automatic disconnection for energy saving, with deactivation option

41.CE148
BIOCEN 22 R small laboratory centrifuge, refrigerated
Request a price
pc

Features: LCD screen:• Shows RPM and RCF, time, temperature and acceleration/deceleration (PCBS).• Speed programming in 10 RPM/ 10 xg steps.• Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.• Timer from 1 to 99 min. programmable in 5 sec. steps and hold position.• PCBS: Progressive controlled acceleration and braking system up to 175 selectableramps that prevents sample homogenization after separation.• 16 programmable memories.• Several acoustic and visual messages warning the user the device situation. Easy to use: • Microprocessor controlled.• Induction motor maintenance free (brushless).• Rotors list on memory.• Noise level: below 65 dB.• Start, stop, open lid and short spin with adjustable speed buttons.• Option of free/locked adjustment of RPM/ RCF along the run.• Low heigh for easy access.• Last values remain in memory.• Automatic rotor recognition. Over-speed protection Safety: • Lid provided with security systems:- Automatic lid lock system, motorized.- Emergency lid-lock release.- Locking and protection against opening along the run.- Lid dropping protection.- Port in the lid for calibration and operation checking.• Unbalance detection and switch off.• Protection safety ring between the centrifugation chamber and the housing.• Chamber of centrifugation in stainless steel (easy cleaning).• Rotors can be removed with the lid closed. Hermetic lids.• Rotors and adapters autoclavable, easy to install by the user.• Automatic disconnection for energy saving up to 8 h Refrigeration: • Remains the refrigeration after centrifugation process.• Precooling program with rotor spinning and temperature selectable.• Guarantee 4 °C at maximum RPM.• Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C steps.• Temperature sensor inside the chamber.• Gas R 449A HFO (CFC free).

Features: LCD screen:• Shows RPM and RCF, time, temperature and acceleration/deceleration (PCBS).• Speed programming in 10 RPM/ 10 xg steps.• Timer countdown/up from “0” or at “set RPM/ RCF” for reproducible tests.• Timer from 1 to 99 min. programmable in 5 sec. steps and hold position.• PCBS: Progressive controlled acceleration and braking system up to 175 selectableramps that prevents sample homogenization after separation.• 16 programmable memories.• Several acoustic and visual messages warning the user the device situation. Easy to use: • Microprocessor controlled.• Induction motor maintenance free (brushless).• Rotors list on memory.• Noise level: below 65 dB.• Start, stop, open lid and short spin with adjustable speed buttons.• Option of free/locked adjustment of RPM/ RCF along the run.• Low heigh for easy access.• Last values remain in memory.• Automatic rotor recognition. Over-speed protection Safety: • Lid provided with security systems:- Automatic lid lock system, motorized.- Emergency lid-lock release.- Locking and protection against opening along the run.- Lid dropping protection.- Port in the lid for calibration and operation checking.• Unbalance detection and switch off.• Protection safety ring between the centrifugation chamber and the housing.• Chamber of centrifugation in stainless steel (easy cleaning).• Rotors can be removed with the lid closed. Hermetic lids.• Rotors and adapters autoclavable, easy to install by the user.• Automatic disconnection for energy saving up to 8 h Refrigeration: • Remains the refrigeration after centrifugation process.• Precooling program with rotor spinning and temperature selectable.• Guarantee 4 °C at maximum RPM.• Temperature range from -20°C (-4°F) to 40°C (104°F) in 1°C steps.• Temperature sensor inside the chamber.• Gas R 449A HFO (CFC free).
