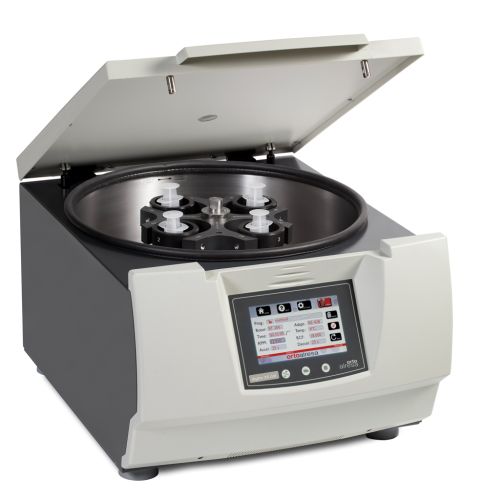

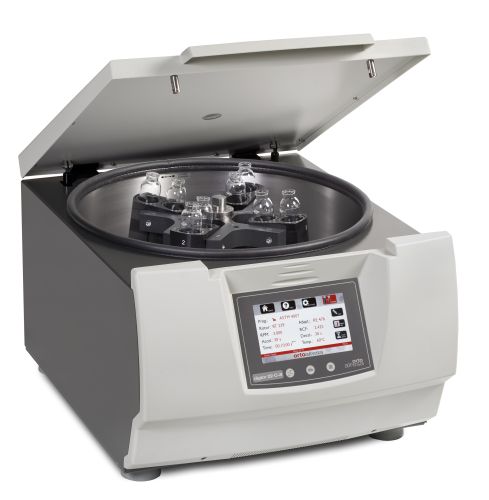

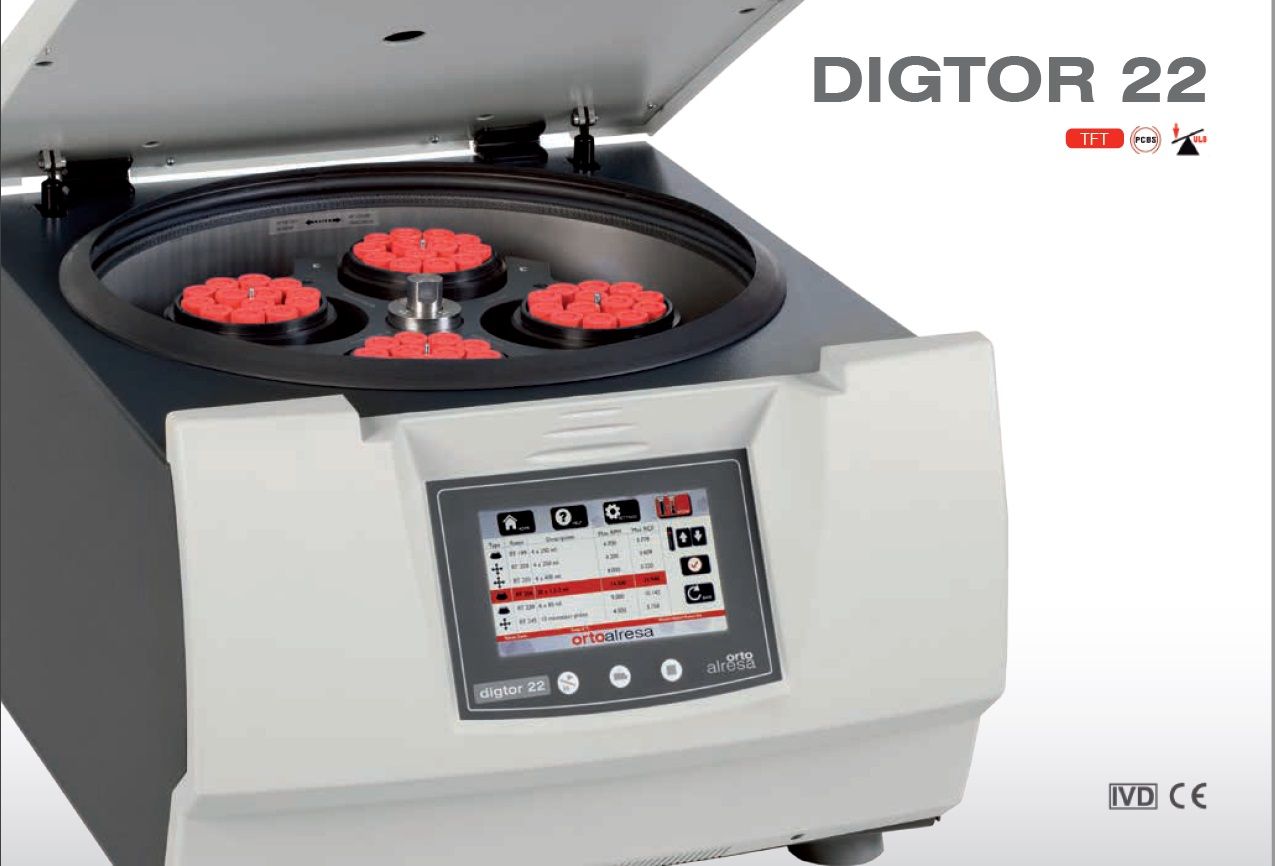

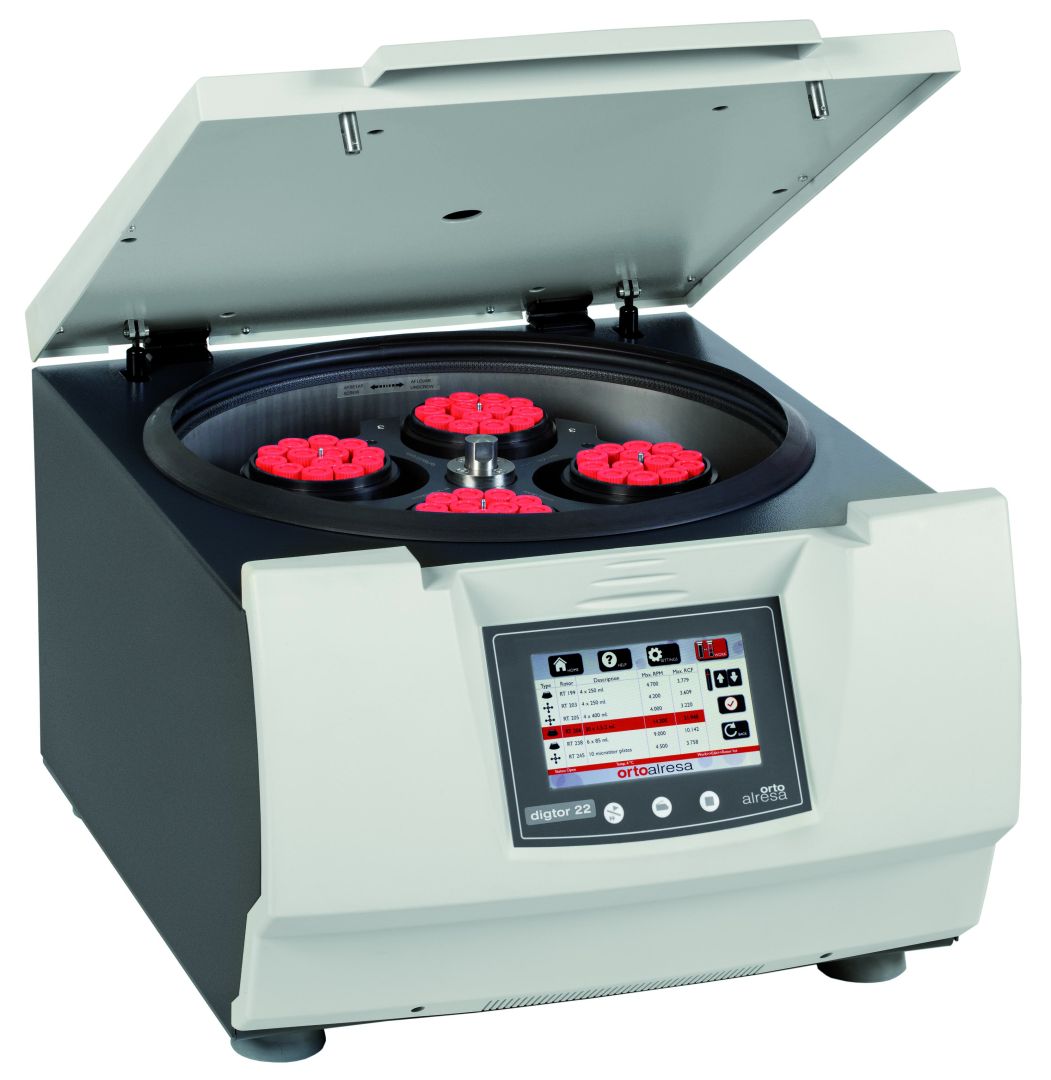

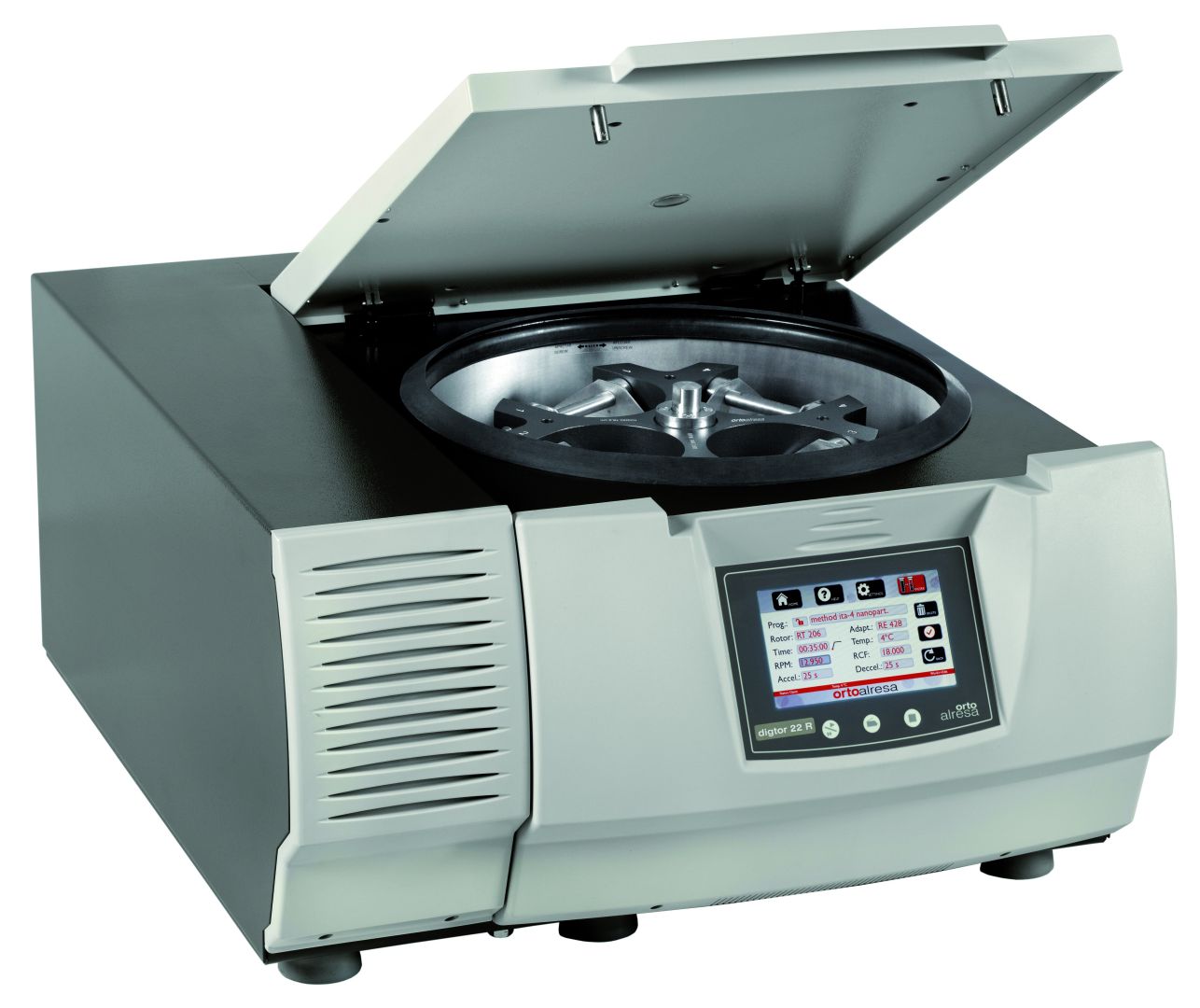

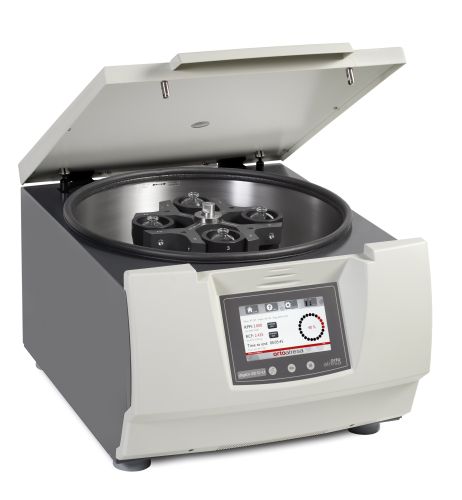

DIGTOR 22 and DIGTOR 22 R benchtop laboratory centrifuge
Ortoalresa
Request a price
DIGTOR 22 and MAGNUS 22 are Orto Alresa's largest capacity centrifuges, designed for large volumes (4 x 750 ml) and for centrifuging higher sample numbers. These centrifuges are also suitable for centrifuging blood bags. Their services are identical to the CONSUL 22 and CONSUL 22 R types. The maximum speed of the centrifuge is determined by the selected rotor.
Like the floor standing Magnus 22 centrifuge, Orto Alresa's Digtor 22 type centrifuge also has a touch screen controller, which, in addition to easy setting and monitoring of parameters, can store 100 password-protected programs. The color display is easy to read even from a distance of 3 meters.
Capacity:
- 4 x 750 ml,
- 52 x 15 ml centrifuge tube (with swing out rotor)
- 20 x 50 ml centrifuge tube (with swing out rotor)
- 8 x 50 ml centrifuge tube (with angle rotor)
| Specifications: | DIGTOR 22 | DIGTOR 22 R |
|---|---|---|
| Consumption: | 1,020 Watt | 1,450 Watt |
| Timer: | 1 sec – 99 hour / continuous | 1 sec – 99 hour / continuous |
| Time unit: | 1 sec | 1 sec |
| Speed setting: | 100 rpm | 100 rpm |
| Max. RCF / max. RPM: |
21,948 xg / 14,300 rpm (rotor dependent)
|
21,948 xg / 14,300 rpm (rotor dependent) |
| Refrigating range: | - | -20 – +40 °C |
| Temperature setting: | - | 1 °C |
| Dimensions: | 530 x 640 x 400 mm | 720 x 780 x 400 mm |
| Weight: | 71 kg | 113 kg |
related products

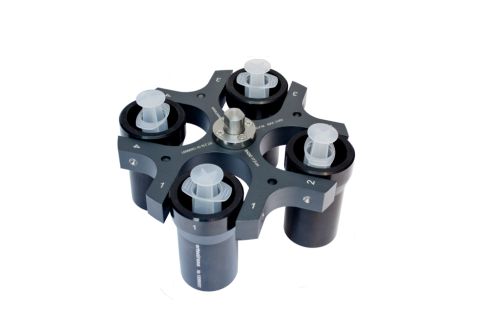

Angle or swing out rotor and tube adapters for Orto Alresa DIGTOR 22 and 22R type centrifuges. Capacity: 4 x 750 ml, 52 x 15 ml, microplate rotor, microtube rotor.
