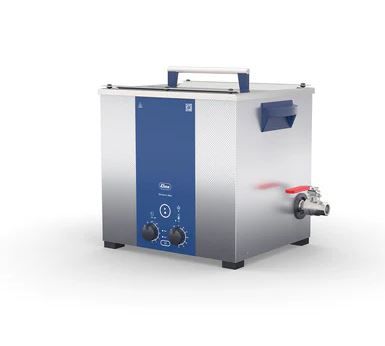

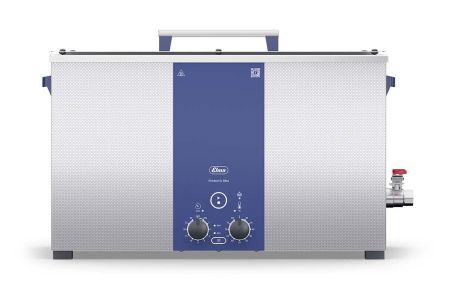

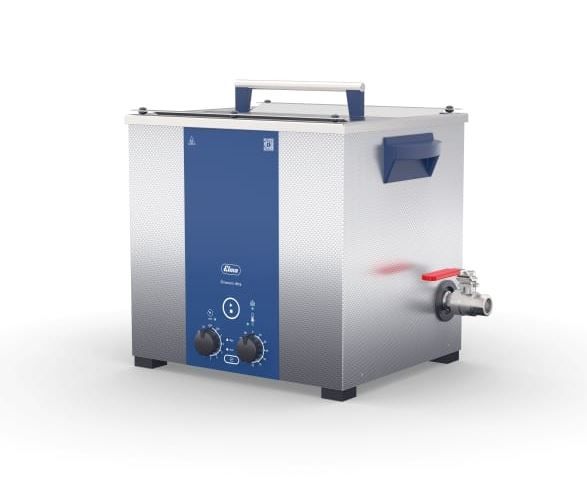

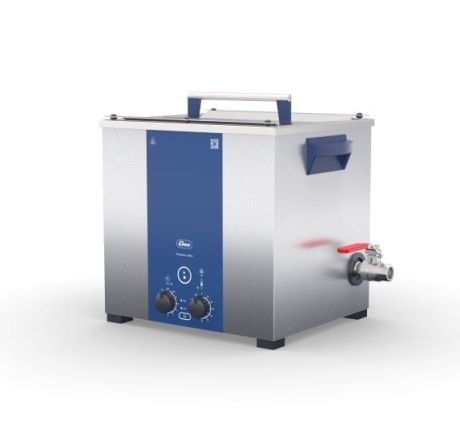

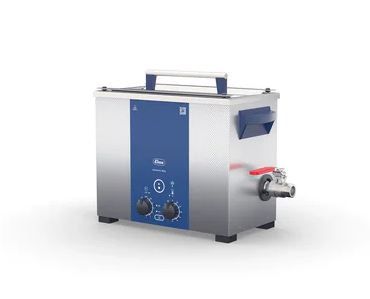

Elmasonic Xtra industrial ultrasonic water baths
Elma
Request a price
Table-top heated ultrasonic water baths designed for continuous use. Simple, user-friendly operation in 5 sizes.
The rotary knobs allow you to easily set the cleaning time (1-30 minutes or continuous operation) and the bath temperature (30 - 80 °C or heating off). Optical and acoustic signal at the end of the cleaning cycle. With dry-running protection. The device automatically switches off after 6 hours of continuous operation or if the bath temperature exceeds 90 °C.
They operate at a frequency of 37 kHz. With 2 selectable operating modes: dynamic (default) for high-intensity and powerful cleaning and ECO for quieter, gentler cleaning.
More detailsTechnical data:
| Specifications: | Xtra 40 | Xtra 60 | Xtra 120 | Xtra 180 | Xtra 300 |
|---|---|---|---|---|---|
| Volume: | 5.0 litre | 6.3 litre | 14.2 litre | 19.7 litre | 30.0 litre |
| Recommended filling volume: | 4.0 litre | 5.1 litre | 12.1 litre | 16.7 litre | 25.4 litre |
| Basket max. loading: | 3.0 kg | 5.0 kg | 7.0 kg | 8.0 kg | 10.0 kg |
| Temperature range: | +30 - +80 °C | +30 - +80 °C | +30 - +80 °C | +30 - +80 °C | +30 - +80 °C |
| Drain connection thread: | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" |
| Noise level: | <80 dB | <80 dB | <80 dB | <80 dB | <80 dB |
| Power consumption: | 540 Watt | 560 Watt | 1020 Watt | 1260 Watt | 1530 Watt |
| Heating power: | 400 Watt | 400 Watt | 800 Watt | 1000 Watt | 1200 Watt |
| Tank dimension (W x D x H): | 235 x 135 x 150mm | 300 x 135 x 150 mm | 300 x 235 x 190 mm | 330 x 295 x 190 mm | 500 x 295 x 190 mm |
| Device dimensions (W x D x H): | 435 x 215 x 330 mm | 500 x 215 x 330 mm | 500 x 315 x 380 mm | 530 x 380 x 380 mm | 700 x 380 x 380 mm |
| Weight: | 6.8 kg | 7.9 kg | 11.3 kg | 13.2 kg | 17.8 kg |
