IKA C-MAG HS and HS digital heating magnetic stirrers

Laboreszköz katalógus Marketplace 0Cart

IKA C-MAG HS 4 heating magnetic stirrer

IKA C-MAG HS 7 heating magnetic stirrer

IKA C-MAG HS 10 heating magnetic stirrer

IKA C-MAG HS 4 digital heating magnetic stirrer

IKA C-MAG HS 7 digital heating magnetic stirrer

IKA C-MAG HS 10 digital heating magnetic stirrer

IKA C-MAG HS 7 Digital package

IKA C-MAG HS and HS digital heating magnetic stirrers

IKA

Request a price

The devices equipped with modern electronics are available in two designs and three sizes. The temperature is displayed on a digital display for all types. A microprocessor ensures that the temperature is kept stable. The temperature can be set between 50 and 500 °C.

The devices are equipped with protection against overheating, which switches off the heating if the temperature of the plate reaches 550°C. A flashing LED warns of the hotness of the plate.

The mixing surface is made of glass ceramic, which is well separated (lower) from the control panel, thus protecting it from possible liquid splashes.

The speed of the magnetic stirrer can be set on an analog scale - with a rotary knob. For HS7 and HS10 size devices, it is also possible to control the temperature with an external sensor (ETS-D5 ± 0.5). This sensor is optional. When using the sensor, the current temperature is shown on the display with a resolution of 0.1°K.

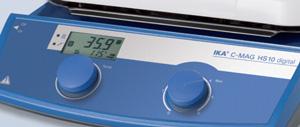

For the digital models, the PT1000 type sensor is included with the devices. At the same time, the accessories needed to hold the sensor must be ordered separately. The digital models have an LCD display from which the current or target temperature can be read.

The "C-MAG HS 7 Digital" package mentioned in the last row of the table includes the device and items for external temperature measurement at a favorable price.

More details

Technical data of Ika heatable magnetic stirrer:

Specifications:	C-MAG HS 4/ digital	C-MAG HS 7/ digital	C-MAG HS 10/ digital
Consumption:	250 W	1000 W	1500 W
Stirring volume:	5 liters	10 liters	15 liters
Speed:	100 - 1500 rpm	100 - 1500 rpm	50 - 1500 rpm
Stirring surface:	100 x 100 mm	180 x 180 mm	260 x 260 mm
Dimensions:	150 x 260 x 105 mm	220 x 330 x 105 mm	300 x 415 x 105 mm
Weight:	3 kg	5 kg	6 kg

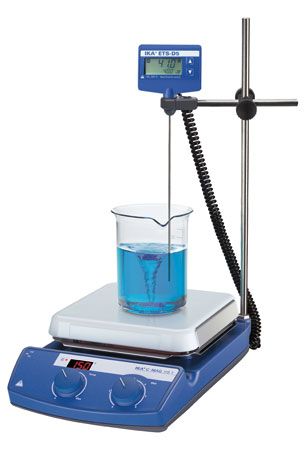

C-MAG HS 7 digital pack

Thanks to IKA's special promotion, we offer the C-MAG HS 7 digital package, which provides direct, sensor temperature control, at a discounted price, which includes the C-MAG HS 7 digital heated magnetic stirrer with an improved display.

A C-MAG HS 7 digital pack included:

C-MAG HS 7 digital heating magnetic stirrer
ETS D5 type temperature sensor
sensor support stand
magnetic stirring rod


code

Name

net price

amount

in stock

56.3581000

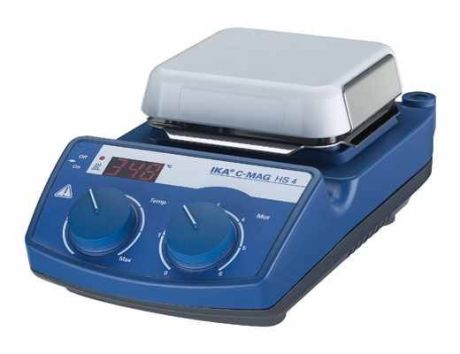

C-MAG HS 4

Request a price

Digital temperature display. Overheating protection. Temperature range: 50-500 °C Precision: ±10 °K. Power: 250 W. Max volume: 5 litre Stirring speed: 100 - 1500 rpm Speed adjust on scale. Heating surface: 100 × 100 mm Exterior size: 150 x 105 x 260 mm Weight: 3 kg

C-MAG HS 4 Digitális fűthető mágneses keverő

56.4240200

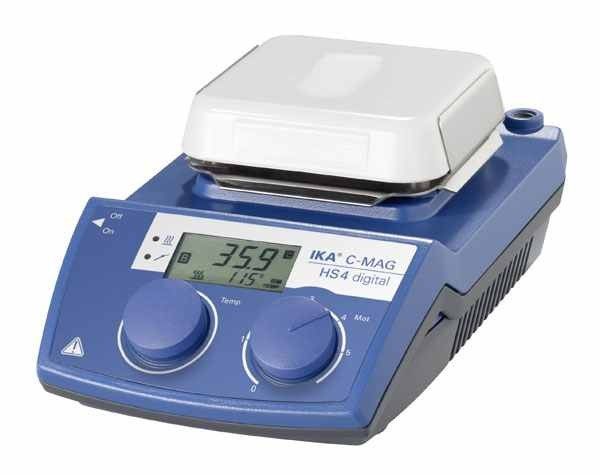

C-MAG HS 4 digital

Request a price

Digitális kijelző a hőmérséklet beállításához és megjelenítéséhez. A fűtőfelület anyaga kerámia. Túlfűtés elleni védelem, amely 550 °C-on kikapcsol. Fűtés hőmérséklet tartománya: 50-500 °C Hőmérséklet pontossága: ±1 °K Hőmérséklet pontossága szenzorral: ±0,5 °K PT1000 típusú szenzor jár a készülékhez. Csatlakozó a PT1000 típusú külső szenzorhoz. Fűtési teljesítmény: 250 W Maximális keverési térfogat: 5 liter Fordulatszám: 100 - 1.500 ford./perc A fordulatszám beállítása analóg skálán történik. Fűtőfelület mérete: 100 × 100 mm (a lap széle körben egy sávban kevésbé melegszik fel) Készülék méret: 150 x 105 x 260 mm. Tömeg: 3 kg

56.3581200

C-MAG HS 7

Request a price

Digital display for setting and displaying the temperature. The material of the heating surface is ceramic. Protection against overheating. Possibility of connecting an external sensor. Heating temperature range: 50-500 °C Temperature accuracy: ±10 °K. (An accuracy of ±0.5° is also available with an external sensor) . Connector for the optional ETS-D5 type external sensor. Heating power: 1,000 W. Maximum mixing volume: 10 liters Speed: 100 - 1,500 rpm The speed is set on an analog scale. Heating surface size: 180 × 180 mm (the edge of the sheet heats up less in a circle) Device size: 220 x 105 x 330 mm. Weight: 5 kg

56.3487000

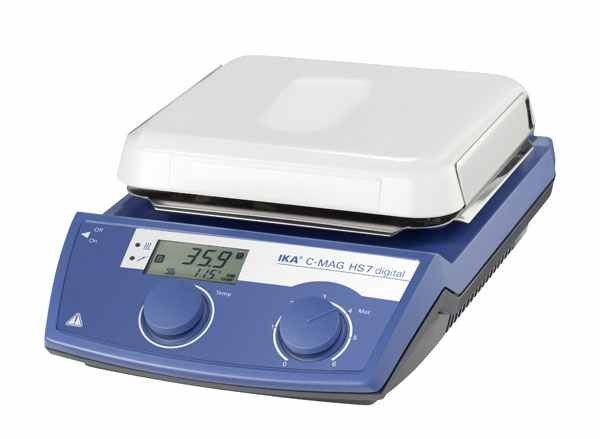

C-MAG HS 7 digital

Request a price

Digital display for setting and displaying temperature, digital display of error codes. The heating surface is made of ceramic. Overheating protection, which switches off at 550 ° C. Heating temperature range: 50-500 ° C Temperature accuracy: ± 1 ° K Temperature accuracy with sensor: ± 0.5 ° K The device comes with a PT1000 sensor. Connector for PT1000 external sensor. Heating power: 1000 W. Maximum mixing volume: 10 liters Speed: 100 - 1,500 rpm The speed is set on an analogue scale. Heating surface size: 180 × 180 mm (less heating in one band around the edge of the sheet) Device size: 220 x 105 x 330 mm. Weight: 5 kg

56.3581400

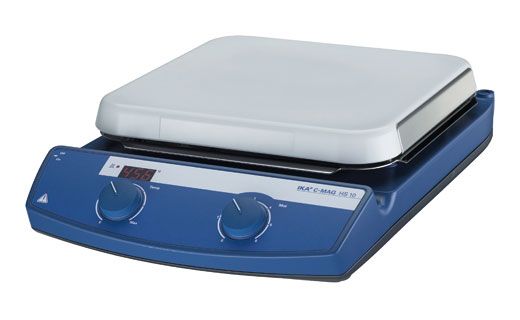

C-MAG HS 10

Request a price

Digital display for setting and displaying the temperature. The material of the heating surface is ceramic. Protection against overheating. Possibility of connecting an external sensor. Flashing light indicating the heat of the heating plate. Heating temperature range: 50-500 °C Temperature accuracy: ±10 °K. (An accuracy of ±0.5° is also available with an external sensor) . Connector for the optional ETS-D5 type external sensor. Heating power: 1,500 W. Maximum mixing volume: 15 liters Speed: 100 - 1,500 rpm The speed is set on an analog scale. Heating surface size: 260 × 260 mm (the edge of the sheet heats up less in a circle) Device size: 300 x 105 x 415 mm. Weight: 6 kg

C-MAG HS 10 Digitális fűthető mágneses keverő

56.4240400

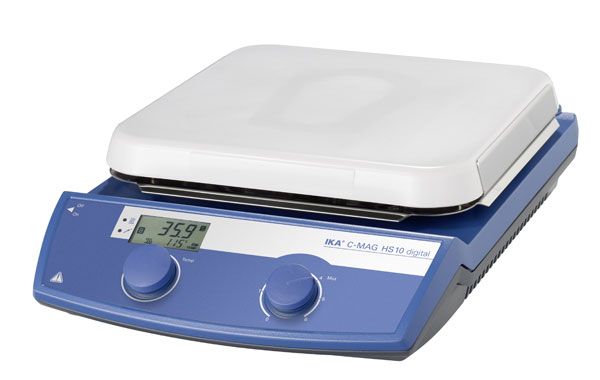

C-MAG HS 10 digital

Request a price

Digitális kijelző a hőmérséklet beállításához és megjelenítéséhez. A fűtőfelület anyaga kerámia. Túlfűtés elleni védelem, amely 550 °C-on kikapcsol. Fűtés hőmérséklet tartománya: 50-500 °C Hőmérséklet pontossága: ±1 °K Hőmérséklet pontossága szenzorral: ±0,5 °K PT1000 típusú szenzor jár a készülékhez. Csatlakozó a PT1000 típusú külső szenzorhoz. Maximális keverési térfogat: 15 liter Fordulatszám: 100 - 1.500 ford./perc A fordulatszám beállítása: analóg skálán történik. Fűtőfelület mérete: 260 × 260 mm (a lap széle körben egy sávban kevésbé melegszik fel) Készülék méret: 300 x 105 x 415 mm. Tömeg: 6 kg

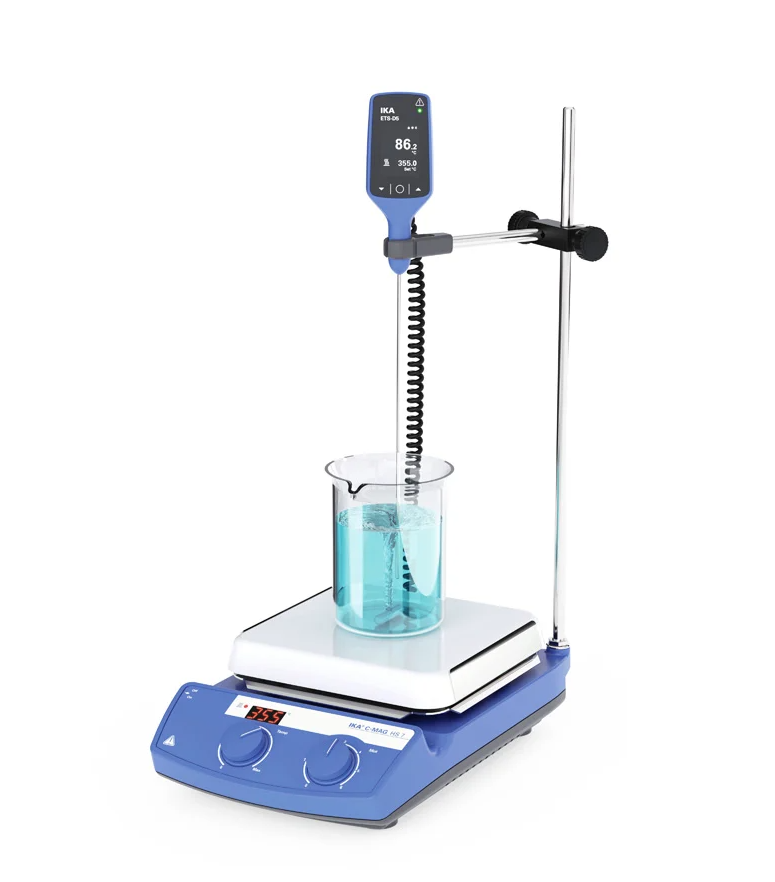

C-MAG HS 7 fűthető mágneses keverő digitális csomag

56.9015900

C-MAG HS 7 digital pack

Request a price

- ETS-D5 elektronikus kontakhőmérővel - Szenzortartó rúddal - kettősdióval a szenzor rögzítéséhez Digitális kijelző a hőmérséklet beállításához és megjelenítéséhez. A fűtőfelület anyaga kerámia.Túlfűtés elleni védelem. Külső szenzor csatlakozás lehetősége. Fűtés hőmérséklet tartománya: 50-500 °C Beépített védelem mely 550 °C-on kikapcsol. Hőmérséklet pontossága szenzorral: ±0,5 °K. Fűtési teljesítmény: 1.000 W. Motor teljesítménye: 15/1,5 W Maximális keverési térfogat: 10 liter Fordulatszám: 100 - 1.500 ford./perc Beállítása analóg skálán történik. Fűtőfelület mérete: 180 × 180 mm (a lap széle körben egy sávban kevésbé melegszik fel) Készülék méretei: 220 x 105 x 330 mm. Tömeg: 5 kg
