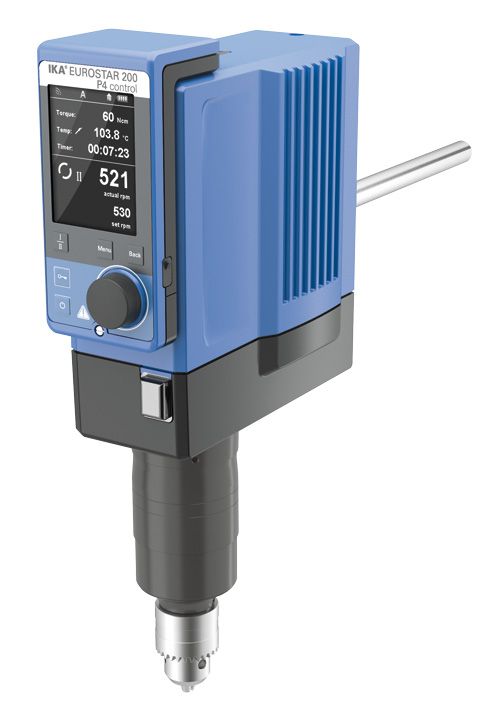

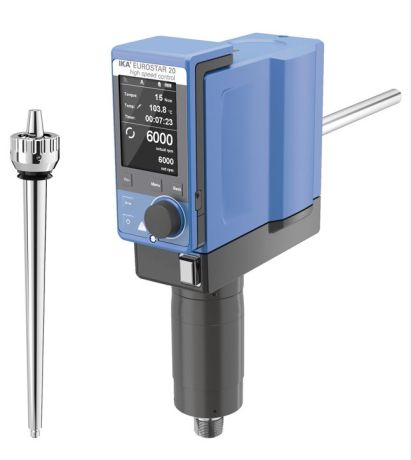

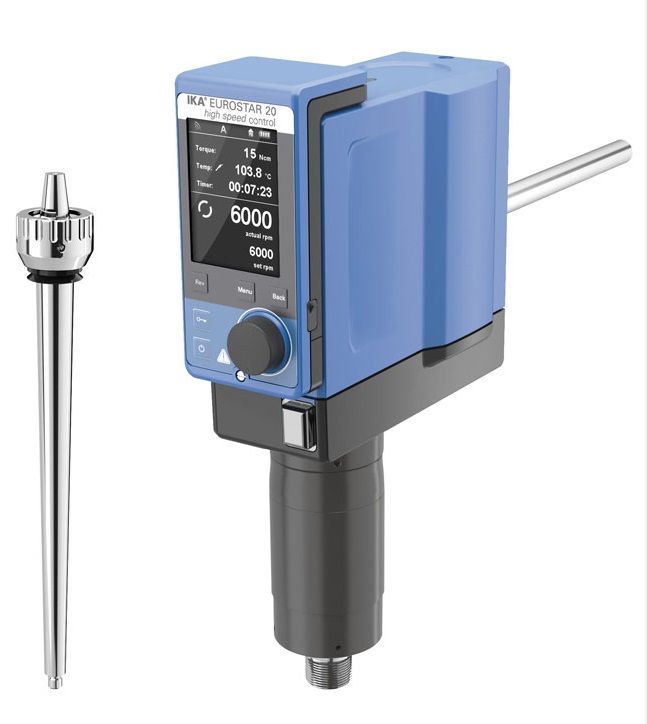

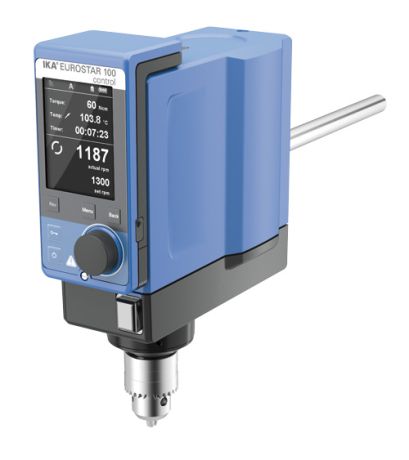

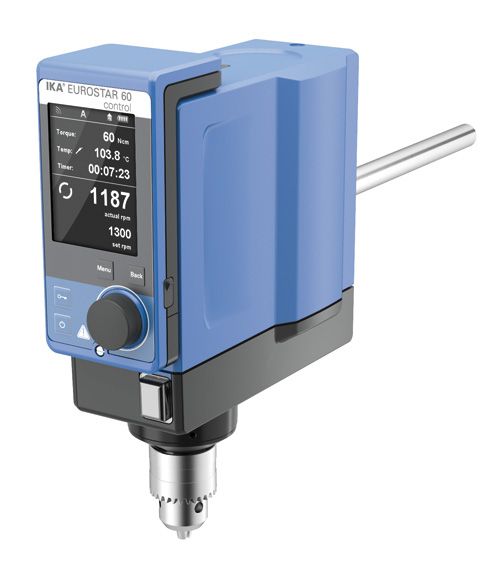

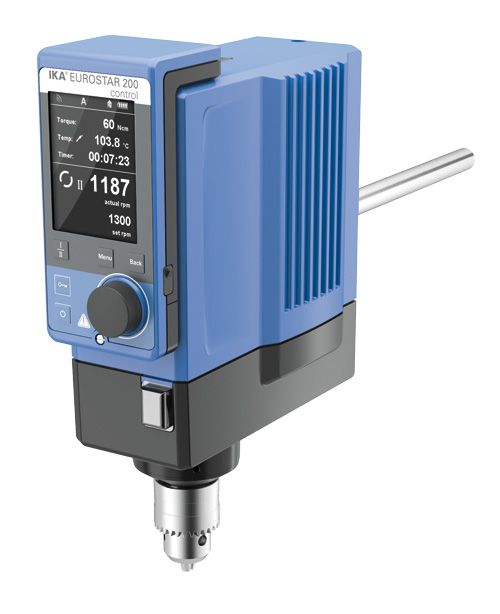

IKA EUROSTAR control overhead stirrer series
IKA
Request a price
The overhead stirrers of the EUROSTAR control series are quiet, have a good design and are uniquely equipped with a wireless controller that can be detached from the device. The digital TFT display controller can simultaneously display the speed (set and actual), the remaining time, the applied torque and the temperature measured by the built-in temperature sensor. On the basis of the continuous, automatic compensation between the set and the actual speed, even stirring can be ensured even when stirring liquids of variable viscosity.
The overhead stirrers have an RS232 and USB output, thanks to which you can connect to a computer and document it. It can also be used for stirring high-viscosity materials.
Many traditional and through-the-device stirring shafts can be ordered for the devices, which must be fixed in a chuck with a key lock. The overhead stirrer must be mounted on a stand.
Features:
- Multilingual digital TFT display
- Infinitely adjustable speed
- Timer function
- Programmable operation
- Overload protection
- Error code indication
Technical data of EUROSTAR control series:
| Eurostar control series: | Control 20 | Control 60 | Control 100 | Control 200 | Control 200 P4 |
|---|---|---|---|---|---|
| Consumption: | 176 Watt | 176 Watt | 186 Watt | 130 Watt | 134 Watt |
| Max. viscosity: | 10,000 mPas | 50,000 mPas | 70,000 mPas | 100,000 mPas | 150,000 mPas |
| Max. torque: | 20 Nc | 60 Ncm | 100 Ncm | 200 Ncm | 660 Ncm |
| Stirring volume: | 20 l | 40 l | 100 l | 100 l | 100 l |
| Speed: | 0-6000 rpm | 0-2000 rpm | 0- 1300 rpm | 0-2000 rpm | 0-530 rpm |
| Dimensions: | 86 x 325 x 230 mm | 86 x 230 x 267 mm | 86 x 230 x 267 mm | 91 x 231 x 297 mm | 91 x 230 x 379 mm |
| Weight: | 4.7 kg | 4.7 kg | 4.7 kg | 4.9 kg | 5.8 kg |
