IKA MINISTAR control and IKA MINISTAR digital overhead stirrers

IKA

Request a price

The IKA MINISTAR series is a compact and powerful overhead stirrer.

It is suitable for mixing liquids of low and medium viscosity (750 - 60,000 mPas) and small and medium volumes (2 - 50 liters).

With microprocessor control, it keeps the speed constant, depending on the model, at speeds of 0/30 - 500/2000. Both the actual and the set speed can be adjusted continuously. The speed remains constant even after changing the viscosity. Any change in viscosity can be detected by measuring the change in torque.

The device is equipped with overload protection. The USB interface enables the operation and documentation of all parameters, as well as firmware updates.

IKA MINISTAR control features:

Chemical resistant housing
Glass surface, bright character LCD display
Adjustable vibration detection
PT 1000 temperature sensor connector
Timer and countdown function

IKA MINISTAR digital features:

Chemical resistant housing
LED display with glass surface

More details

Technical data for the IKA MINISTAR control and digital series:

Specifications:	Ministar 20 control	Ministar 40 control	Ministar 80 control	Ministar 20 digital	Ministar 40 digital	Ministar 80 digital
Consumption:	60 Watt	60 Watt	60 Watt	60 Watt	60 Watt	60 Watt
Max. viscosity:	10,000 mPas	30,000 mPas	60,000 mPas	10,000 mPas	30,000 mPas	60,000 mPas
Max. torque:	20 Ncm	40 Ncm	80 Ncm	20 Ncm	40 Ncm	80 Ncm
Stirring volume:	15 l	25 l	50 l	15 l	25 l	50 l
Speed:	0-2000 rpm	0-1000 rpm	0-500 rpm	0-2000 rpm	0-1000 rpm	0-500 rpm
Dimensions:	70 x 144 x 130 mm	70 x 144 x 130 mm	70 x 144 x 130 mm	70 x 193 x 147 mm	70 x 193 x 147 mm	70 x 193 x 147 mm
Weight:	1.56 kg	1.72 kg	1.72 kg	1.56 kg	1.72 kg	1.72 kg


code

Name

net price

amount

in stock

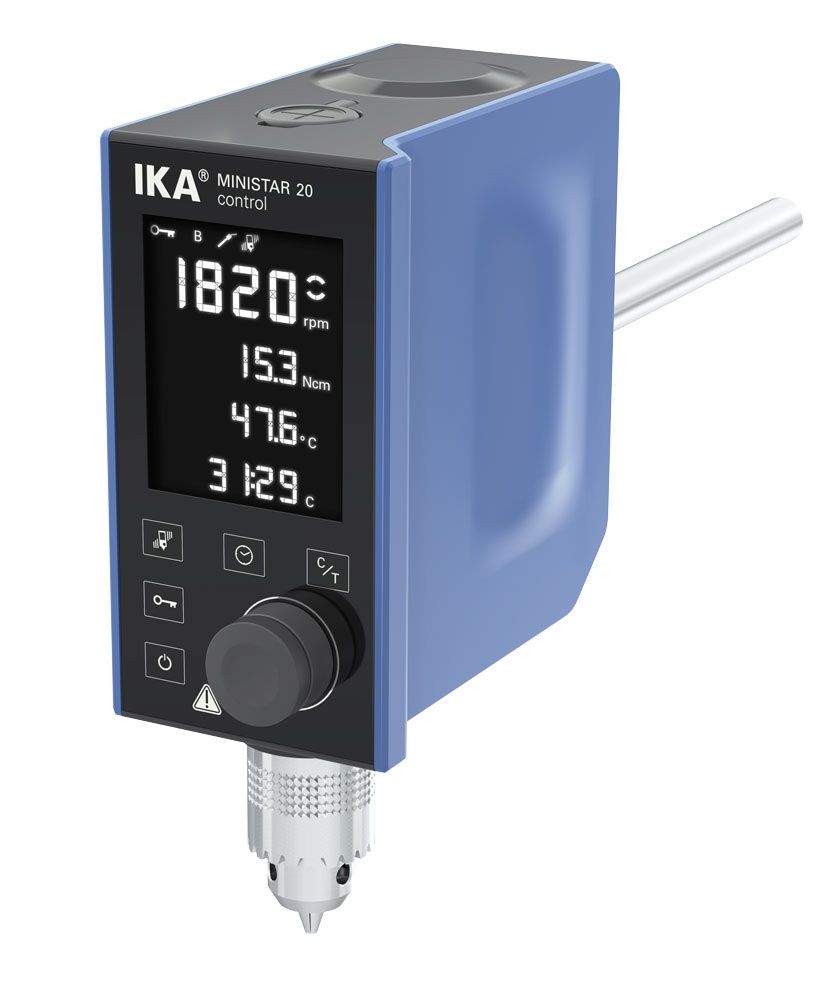

MINISTAR 20 control overhead stirrer, for low viscosity liquids

56.25001988

IKA MINISTAR 20 control

Request a price

with overload protection. Compact, powerful. Power: 69 W (42 W at the mixer shaft) Max. Viscosity: 10,000 mPas, max. torque: 20 Ncm, Mixing volume: 15 liters Speed: 0-2,000 rpm Device size (width x depth x height): 70 x 144 x 130 mm. Weight: 1.56 kg Stand, stirrers must be ordered separately.

MINISTAR 40 control overhead stirrer, for medium viscosity liquids

56.25001989

IKA MINISTAR 40 control

Request a price

with overload protection. Compact, powerful. Power: 69 W (42 W at the mixer shaft) Max. Viscosity: 30,000 mPas, max. torque: 40 Ncm, Mixing volume: 25 liters Speed: 0-1,000 rpm Device size (width x depth x height): 70 x 144 x 130 mm. Weight: 1.72 kg Stand, stirrers must be ordered separately.

MINISTAR 80 control overhead stirrer, for medium viscosity liquids

56.25001990

IKA MINISTAR 80 control

Request a price

with overload protection. Compact, powerful. Power: 69 W (42 W at the mixer shaft) Max. Viscosity: 60,000 mPas, max. torque: 80 Ncm, Mixing volume: 50 liters Speed: 0-500 rpm Device size (width x depth x height): 70 x 144 x 130 mm. Weight: 1.72 kg Stand, stirrers must be ordered separately.

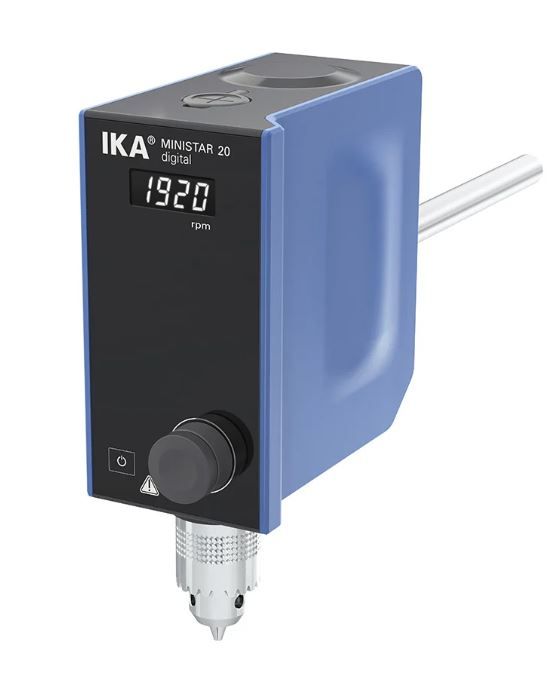

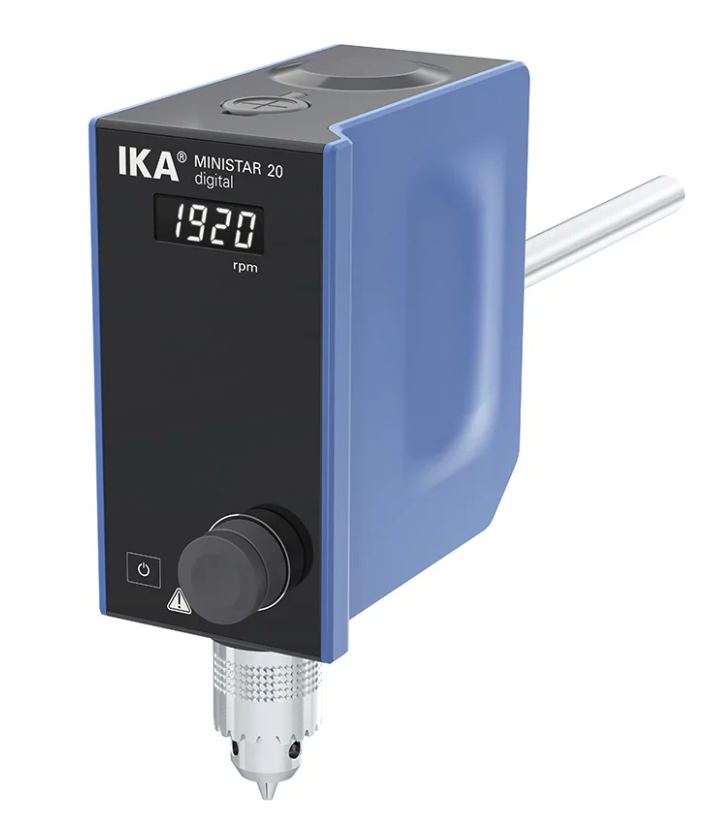

MINISTAR 20 digital elektronikus pálcás keverő motor

56.0025004885

IKA MINISTAR 20 digital

Request a price

LED kijelzővel. Teljesítmény: 46 W Viszkozitás max: 1.0000 mPas Fordulatszám: 0/50 - 2.000 fordulat/perc Max forgatónyomaték: 20 Ncm Max keverési térfogat: 15 l Készülék méret: 70 x 193 x 147 mm Tömeg: 1,56 kg A szükséges kiegészítőket, keverő pálca, tartó állvány és rögzítők külön kell megrendelni.

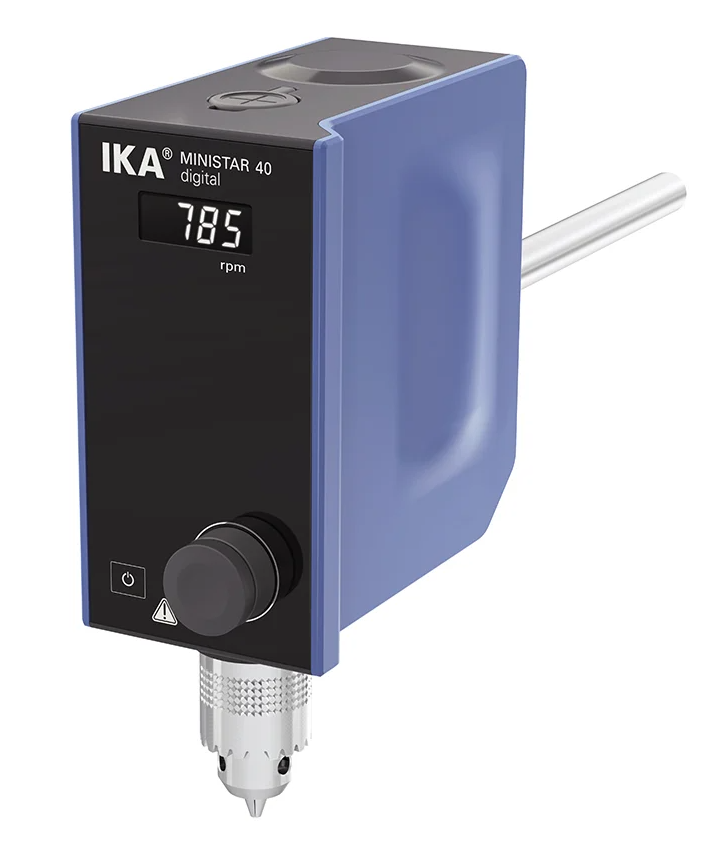

MINISTAR 40 digital elektronikus keverőfej

56.0025004886

IKA MINISTAR 40 digital

Request a price

LED kijelzővel. Teljesítmény: 46 W Viszkozitás max: 3.0000 mPas Fordulatszám: 0/50 - 1.000 fordulat/perc Max forgatónyomaték: 40 Ncm Max keverési térfogat: 25 l Készülék méret: 70 x 193 x 147 mm Tömeg: 1,72 kg

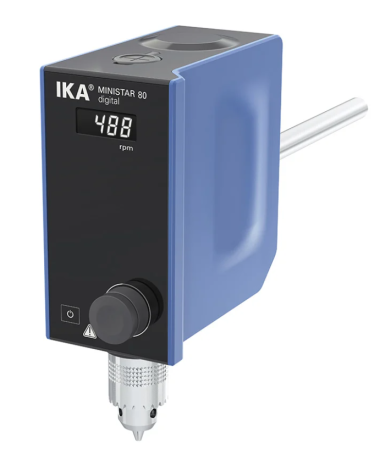

MINISTAR 80 digital elektronikus keverőfej

56.0025004887

IKA MINISTAR 80 digital

Request a price

"LED kijelzővel, Teljesítmény: 46 W Viszkozitás max: 60.000 mPas Fordulatszám: 0/50 - 500 fordulat/perc Max forgatónyomaték: 80 Ncm Max keverési térfogat: 50 l Készülék méret: 70 x 193 x 147 mm Tömeg: 1,72 kg"
