KNF SIMDOS digital membrane liquid dispensers

Laboreszköz katalógus Marketplace 0Cart

KNF SIMDOS 10 compact membrane liquid dispensers

KNF SIMDOS 02 dosing pump

KNF SIMDOS digital membrane liquid dispensers

KNF

Request a price

Small, extremely easy-to-use liquid dispenser with backlit LCD display and liquid-proof push buttons. It is practically maintenance-free.

Specifications:	Simdos 10	Simdos 02
Dosage range:	1 - 1000 ml	30 µl - 999 ml
Dosing speed:	1- 100 ml/min	0,03- 20 ml/min
Accuracy:	+/-2%	+/-2%
Repeatability:	+/-1%	+/-1%
Suction height:	3 mWg	2mWg
Pressure height:	60 mWg	60 mWg
Pipe connection:	4/6 mm	4/6 mm
External dimensions:	150 x 93 x 144 mm	150 x 93 x 144 mm
Power consumption:	24 W	10 W
Weight:	0,9 kg	0,9 kg

RC (=RCplus) series devices have 4-20 mA analog control and an RS232 port.

More details

Material use:

Code / Part	Pump head	Membrane	Valves	Filter housing
KT	PP	PTFE coat	FFKM Kalrez	PEEK
TT	PVDF	PTFE coat	FFKM Kalrez	PVDF
FT	PTFE	PTFE coat	FFKM Kalrez	PEEK
ST	stainless steel	PTFE coat	FFKM Kalrez	PEEK


code

Name

net price

amount

in stock

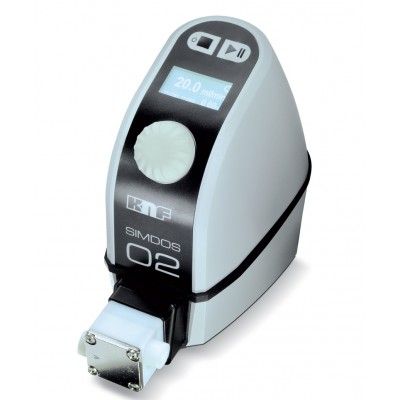

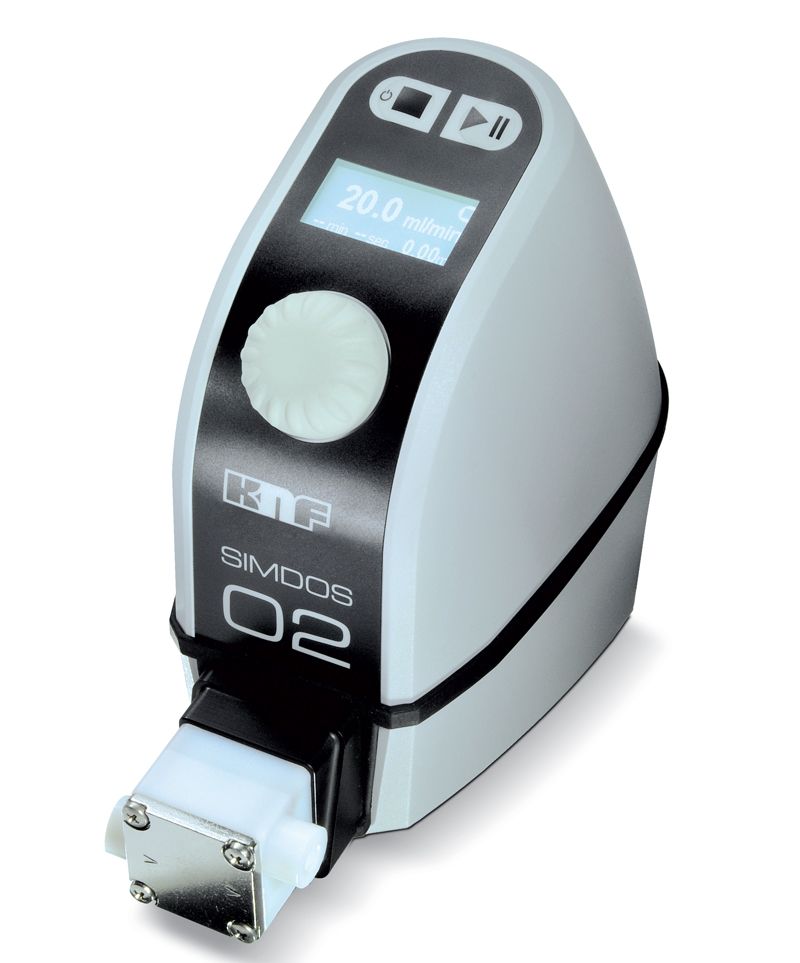

Simdos 02 digital membrane liquid dispenser

33.FEM102KT18S

Simdos 02 precision membrane liquid dispenser

Request a price

"small size, backlit LCD display, easy to use. Dosing rate: 0.03 - 20 ml/min, Dosing volume: 30 µl - 999 ml Accuracy: ±2 % (nominal value) Repeatability: ±1% Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PP pump head, PTFE-covered membrane, FFKM valves. For pipes with a diameter of 4/6 mm. Weight: 0.9 kg External dimensions: 150 x 93 x 144 mm"

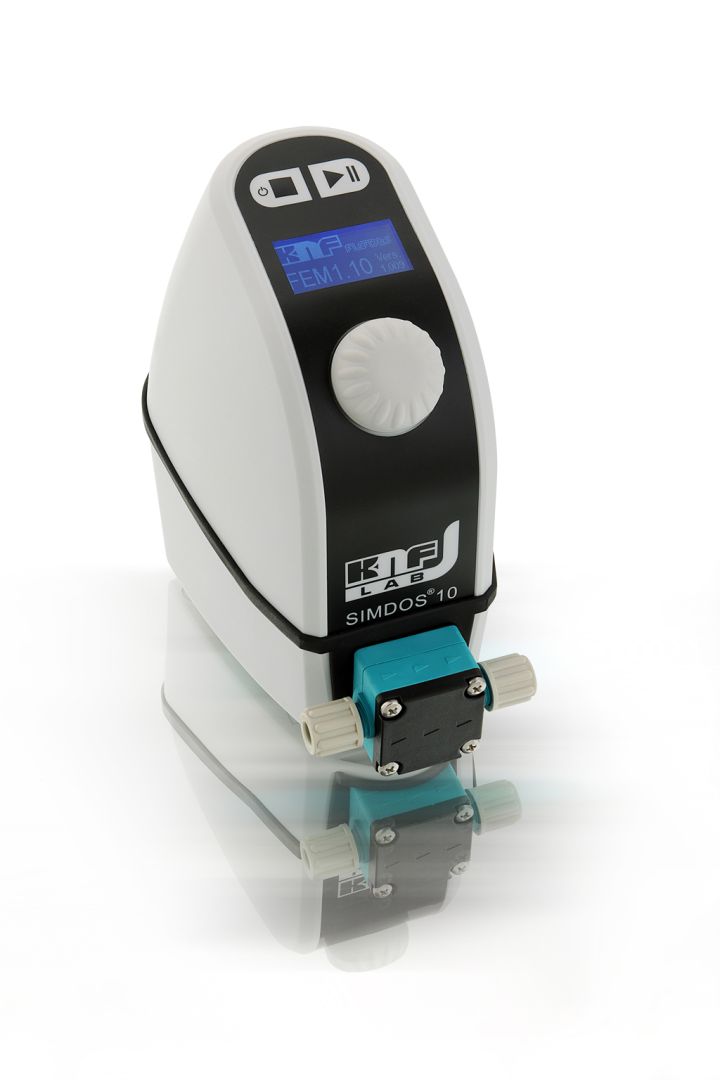

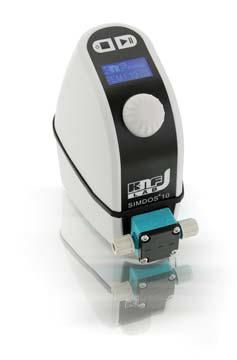

Simdos 10 digital membrane liquid dispenser

33.FEM110KT18RC

Simdos 10 membrane liquid dispenser with external control option

Request a price

"small size, backlit LCD display, easy to use. Control port (analog). Dosing rate: 1 - 100 ml/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PP pump head, PTFE-covered membrane, FFKM valves. Weight: 0.9 kg External dimensions: 134 x 93 x 145 mm"

Simdos 10 digital membrane liquid dispenser, medium chemical resistance

33.FEM110TT18RC

Simdos 10 membrane liquid dispenser with external control option, medium chemical resistance

Request a price

"small size, backlit LCD display, easy to use. Control port (analog). Dosing rate: 1 - 100 ml/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PVDF pump head, PTFE-covered membrane, FFKM valves. Weight: 0.9 kg External dimensions: 134 x 93 x 145 mm"

Simdos 10 digital membrane liquid dispenser, chemical resistant

33.FEM110FT18RC

Simdos 10 membrane liquid dispenser with external control option, chemical resistant

Request a price

"small size, backlit LCD display, easy to use. Control port (analog). Dosing rate: 1 - 100 ml/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PTFE pump head, PTFE-covered membrane, FFKM valves. Weight: 0.9 kg External dimensions: 134 x 93 x 145 mm"

33.FEM110FT18S

Simdos 10 membrane liquid dispenser chemical resistant

Request a price

"small size, backlit LCD display, easy to use. Dosing rate: 1 - 100 ml/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PTFE pump head, PTFE-covered membrane, FFKM valves. For pipes with a diameter of 4/6 mm. Weight: 0.9 kg External dimensions: 134 x 93 x 145 mm"

33.FEM102KT18RC

Simdos 02 precision membrane liquid dispenser with external control option

Request a price

"small size, backlit LCD display, easy to use. Dosing rate: 0.03-20 ml/min, Dosing volume: 30 µl - 999 ml Accuracy: ±2 % (nominal value) Repeatability: ±1% Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PP pump head, PTFE-covered membrane, FFKM valves. For pipes with a diameter of 4/6 mm. Weight: 0.9 kg External dimensions: 150 x 93 x 144 mm"

Simdos 02 digital membrane liquid dispenser, chemical resistant

33.FEM102FT18S

Simdos 02 precision membrane liquid dispenser is chemical resistant

Request a price

"small size, backlit LCD display, easy to use. Dosing rate: 0.03-20 ml/min, Dosing volume: 30 µl - 999 ml Accuracy: ±2 % (nominal value) Repeatability: ±1% Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PTFE pump head, PTFE-covered membrane, FFKM valves. For pipes with a diameter of 4/6 mm. Weight: 0.9 kg External dimensions: 150 x 93 x 144 mm"

33.FEM110KT18S

Simdos 10 membrane liquid dispenser

Request a price

"small size, backlit LCD display, easy to use. Dosing rate: 1 - 100 ml/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PP pump head, PTFE-covered membrane, FFKM valves. For pipes with a diameter of 4/6 mm. Weight: 0.9 kg External dimensions: 134 x 93 x 145 mm"

33.FEM110TT18S

Simdos 10 membrane liquid dispenser is moderately chemical resistant

Request a price

"small size, backlit LCD display, easy to use. Dosing rate: 1 - 100 ml/min, (+/- 1 %) Programmable: 1 second - 99 hours 59 minutes Max pressure: 6 bar. Max viscosity: 150 cSt (with reduced power: 500 cSt) IP 65 protection. PVDF pump head, PTFE-covered membrane, FFKM valves. Weight: 0.9 kg External dimensions: 134 x 93 x 145 mm"
