"automatic, chemical-resistant vacuum system with the components listed below: - double-head diaphragm pump (N 820.3 FT.18) - base plate, separator vessel - vertical condenser, good recovery - vacuum control valve (mechanical) - digital vacuum display - safety valve - main switch PTFE pump head, PTFE diaphragm, FFPM valves. Air delivery: 20 l/minute (1.2m3/hour) Final vacuum: 8 mbar Weight: 14.5 kg The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm. This connecting pipe and water cooling pipes do not belong to this item!"

"automatic, chemical-resistant vacuum system with the components listed below: - double-head diaphragm pump (N 840.3 FT.18) - base plate, separator vessel - vertical condenser, good recovery - vacuum control valve (mechanical) - digital vacuum display - safety valve - main switch PTFE pump head, PTFE diaphragm, FFPM valves. Air delivery: 34 l/min (2.04 m3/hour) Final vacuum: 8 mbar Weight: 17.8 kg The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm. This connecting pipe and water cooling pipes do not belong to this item!"

"automatic, chemical-resistant vacuum system with the components listed below: - double-head diaphragm pump (N 842.3 FT.18) - base plate, separator vessel - vertical condenser, good recovery - vacuum control valve (mechanical) - digital vacuum display - safety valve - main switch PTFE pump head, PTFE diaphragm, FFPM valves. Air delivery: 34 l/min Final vacuum: 2 mbar Weight: 18.6 kg The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm. This connecting pipe and water cooling pipes do not belong to this item!"

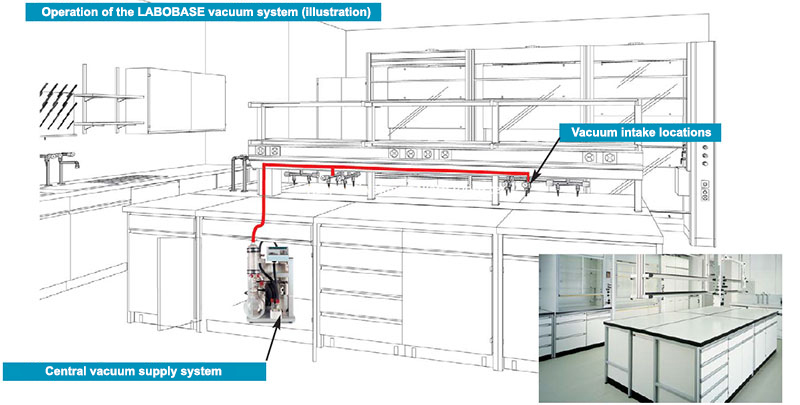

"automatic, chemical-resistant vacuum system with the components listed below: - Digital vacuum control unit - valves and electric power supply - it serves several workplaces (e.g. it can be installed under the table and can suck a multi-outlet vacuum line. - double-head diaphragm pump (N 840.3 FT.40.18) - base plate, separator vessel - vertical condenser, good recovery Particularly suitable for solvent distillation (Rotadesz). PTFE pump head, PTFE diaphragm, FFPM valves. Air delivery: 34 l/min Final vacuum: 10 mbar Weight: 22.9 kg The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm. This connecting pipe and water cooling pipes do not belong to this item!"

"automatic, chemical-resistant vacuum system with the components listed below: - Digital vacuum control unit - valves and electric power supply - it serves several workplaces (e.g. it can be installed under the table and can suck a multi-outlet vacuum line. - double-head diaphragm pump (N 860.3 FTE) - base plate, separator vessel - vertical condenser, good recovery Particularly suitable for solvent distillation (Rotadesz). PTFE pump head, PTFE diaphragm, FFPM valves. Air delivery: 60 l/min Final vacuum: 4 mbar Weight: 25.0 kg The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm. This connecting pipe and water cooling pipes do not belong to this item!"

"Especially suitable for solvent distillation (Rotadest). PTFE pump head, PTFE membrane, FFPM valves. Air delivery: 20 l/min, 1.2 m?/h. Final vacuum: 8 mbar Weight: 16 kg Dimensions W x H x D [mm]: 289 x 506 x 397 The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm, the stub to be connected to the cooling circuit is made for a pipe with an internal diameter of 8 mm. This connecting pipe and water cooling pipes do not belong to this lot!"

"automatic, chemical-resistant vacuum system with the components listed below: - Automatic vacuum control unit - valves and electric power supply - it serves several workplaces (e.g. it can be installed under the table and can suck a multi-outlet vacuum line. - double-head diaphragm pump (N 840.3 FT.18) - base plate, separator vessel - vertical condenser, good recovery Particularly suitable for solvent distillation (Rotadesz). PTFE pump head, PTFE diaphragm, FFPM valves. Air delivery: 34 l/min Air delivery 2.04 m?/h. Final vacuum: 8 mbar Weight: 19.3 kg Power: 250 W. Dimensions W x H x D [mm]: 289 x 506 x 417. The stub to be connected to the rotadest is made for a pipe with an internal diameter of 10 mm, the stub to be connected to the cooling circuit is made for a pipe with an internal diameter of 8 mm. This connecting pipe and water cooling pipes do not belong to this item!"

"Vacuum system with Teflon pump head and diaphragm and FFPM valve. Automatic and accurate source point recognition. High recovery even with low-boiling solvents. Compact design pump. Equipped with an external pressure regulator, it can also be safely used under a chemical booth. 4 operating modes (pressure control, automatic vacuum control corresponding to the solvent in the case of an evaporator, power control, emptying). Status LED. Air delivery: 20 l/per, 1.2 m2/hour Final vacuum: 6 mbar Pressure: 0.1 bar Protection: IP 30 Weight: 13.35 kg Size: 347 x 416 x 260 mm (L x H x W) ATEX compliant gas transmission system (Ex) II 3/-G Ex h IIB+H2 T3 Gc"

"Vacuum system with Teflon pump head and diaphragm and FFPM valve. Air delivery: 34 l/per, 2.04 m2/hour Final vacuum: 6 mbar Pressure: 0.1 bar Protection: IP 30 Weight: 15.75 kg Size: 366 x 416 x 274 mm (L x H x W)"

"Vacuum system with Teflon pump head and diaphragm and FFPM valve. Air delivery: 20 l/per, 1.2 m2/hour Final vacuum: 6 mbar Pressure: 0.1 bar Protection: IP 30 Weight: 10.7 kg Size: 282 x 234 x 260 mm (L x H x W)"

Flow Rate (max.): 34 l/min Ultimate Vacuum (max.): 6 mbar (abs.) Vacuum system comprising chemically resistant diaphragm vacuum pump, base plate and two separator flasks on suction and pressure side Modular expandable 100% oil-free transfer – thereby pure transferring, evacuation and compression of gases High level of vapor and condensate compatibility Pump head: TFM™ PTFE, diaphragm: PTFE-coated, valves: FFPM Ideal for extremely aggressive / corrosive gases and vapors Integrated gas ballast valve 3-color status display for in operation / stand-by / error Integrated rotational speed control Environmentally friendly Start against ultimate vacuum of the pump Protection: IP 30 Weight: 13.1 kg Size: 299 x 250 x 274 mm (L x H x W) ATEX compliant to (Ex) II 3/-G Ex h IIB+H2 T3 Gc internal atmosphere only

"Vacuum system with Teflon pump head and diaphragm and FFPM valve. Air delivery: 20 l/per, 1.2 m2/hour Final vacuum: 6 mbar Pressure: 0.1 bar Protection: IP 30 Weight: 11.7 kg Dimensions: 323 x 416 x 260 mm (L x H x W)"

"Vacuum system with PPS pump head, Teflon-coated membrane and FFPM valve. Air delivery: 21 l/per, 1.26 m3/hour Final vacuum: 2 mbar Weight: 15.2 kg Size: 366 x 423 x 294 mm (L x H x W)"
