Homepage Product MEMMERT carbon dioxide incubators (ICOmed series)
MEMMERT carbon dioxide incubators (ICOmed series)
MEMMERT carbon dioxide incubators (ICOmed series)

MEMMERT carbon dioxide incubators (ICOmed series)

Memmert

Request a price

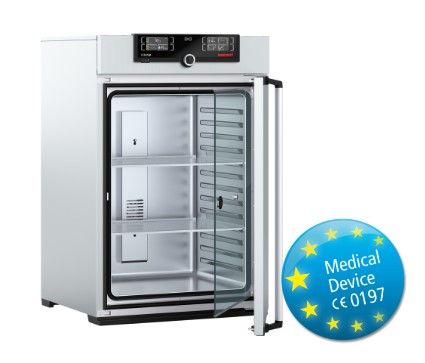

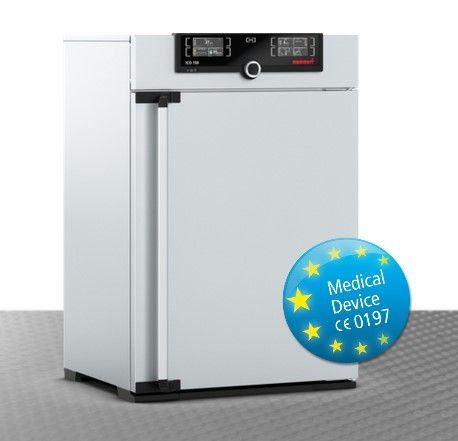

MEMMERT's ICOmed series devices are modern, direct-heated CO2 incubators, which are made of stainless steel inside and out. The efficiency of the heating is ensured by the heating elements located on the four sides. The protection against overheating is independent of the control system, ensuring the protection of samples even in the event of a possible failure of the control.

Maximum CO2 stability is ensured by an infrared sensor. The temperature and humidity can be easily adjusted on the microprocessor controller. Each type has weekly programming, the basic configuration is equipped with a parallel printer output. A USB or Ethernet port is also available as an option.

All devices are equipped with a state-of-the-art diagnostic system, which warns with sound and light signals of conditions different from the set ones, such as low / high temperature, low / high CO2 level, open door, empty CO2 bottle, humidity error, empty water tank (for active humidity control).

On the "basic device" the humidity can be regulated between 88 and 97% RH (optionally up to 40-97%).
The CO2 range is 0-10% for the basic device, which can optionally be requested from 0-20% (see options).

More details

The interior of CO2 incubators is easy to clean because the chamber is made of electro-polished stainless steel and the corners are rounded. The internal glass door allows insight into the inside of the devices without changing the internal conditions.

The built-in fan ensures uniform conditions without turbulence at all points in the chamber. The built-in sterile filter ensures that dirt does not enter the interior. Optimal temperature distribution is also facilitated by the perforated shelves.

Technical data of Memmert's carbon dioxide incubators:

Specifications*: ICOmed 50 ICOmed 105 ICOmed 150 ICOmed 240
Size: 56 liters 107 liters 156 liters 241 liters
Consumption: 1100 watt 1300 Watt 1500 Watt 1650 Watt
Temperature range: 18 (ambient temp. + 5°C) – 50 ºC 18 (ambient temp. + 5°C) – 50 ºC 18 (ambient temp. + 5°C) – 50 ºC 18 (ambient temp. + 5°C) – 50 ºC
Temperature settigs: per 0.1 ºC per 0.1 ºC per 0.1 ºC per 0.1 ºC
Temperature stability: ± 0.1 ºC ± 0.1 ºC ± 0.1 ºC ± 0.1 ºC
Temperature homogenity: ± 0.3 ºC ± 0.3 ºC ± 0.3 ºC ± 0.3 ºC
CO2 range: 0-20% 0-20% 0-20% 0-20%
O2 range: 1 - 20% (optional) 1 - 20% (optional) 1 - 20% (optional) 1 - 20% (optional)
Humidity range:  93% ±2.5% (40-97% optional) 93% ±2.5% (40-97% optional) 93% ±2.5% (40-97% optional) 93% ±2.5% (40-97% optional)
Number of moistening tanks:  1 pc 1 pc 1 pc 1 pc
Number of attached (max) shelves:  1 pc (5) 2 pc (6) 2 pc (10) 2 pc (12)
Internal dimensions: (WxDxH), cm  40 x 42.5 x 33 56 x 48 x 40 56 x 70 x 40 60 x 81 x 50
External dimensions:(mm):  559 x 795 x 521 719 x 850 x 591 719 x 1070 x 591 759 x 1180 x 691
Weight:  55 kg 70 kg 90 kg 110 kg
*The technical parameters given above depend on the equipment of the device. Ask for our detailed description!

Medical technical compliance

Orvostechnikai megfelelőségMemmert INCOMed series carbon dioxide thermostats comply with 93/42/EEC II. of the requirements for the products described in Part 3 of the Annex. The above products are designed according to the directive 93/42/EEC (for the manufacture of medical devices) (class II.b).

code
Name
net price
amount
in stock
ICO50 med carbon dioxide incubator, 56 liters, two controls
23.ICO50med

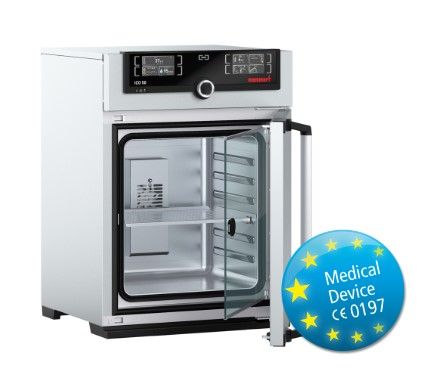

MEMMERT ICOmed 50 type CO2 incubator
Request a price Sale product
pc

"inner wall and door heating, made of stainless steel inside and out, with an inner glass door. Its features can be expanded modularly. Equipped with a vibration-free fan. New touch screen control (Digital parameter setting, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoCONTROL PC software, SB-port for program upload and optional user identification, 2 PT100 temperature sensors). Option (C2): battery-protected controller, so CO2 regulation and data registration work even in the event of a mains power failure. Temperature range: 20-+50°C (from approx. +5°C to 50°C) Setting accuracy: 0.1°C Temperature homogeneity: ±0.3°C CO2 range: 0 - 20 %, with IR sensor Adjustment accuracy: 0.1% Homogeneity of CO2 over time: ±0.2% Evaporating tray: 1 pc. Humidity with lower evaporation tray: 93% ±2.5% RH thanks to the Peltier system. Active humidity control: 40-97% RH (Optional, with the K7 option) Number of shelves: 1, number of seats: 5 Internal dimensions: 400 x 330 x 425 mm (W x D x H) External dimensions: 559 x 521 x 791 mm Weight: 55 kg Power: 1,000 W Sterilization cycle at 160°C without removing sensors. Medical CE conformity."

"inner wall and door heating, made of stainless steel inside and out, with an inner glass door. Its features can be expanded modularly. Equipped with a vibration-free fan. New touch screen control (Digital parameter setting, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoCONTROL PC software, SB-port for program upload and optional user identification, 2 PT100 temperature sensors). Option (C2): battery-protected controller, so CO2 regulation and data registration work even in the event of a mains power failure. Temperature range: 20-+50°C (from approx. +5°C to 50°C) Setting accuracy: 0.1°C Temperature homogeneity: ±0.3°C CO2 range: 0 - 20 %, with IR sensor Adjustment accuracy: 0.1% Homogeneity of CO2 over time: ±0.2% Evaporating tray: 1 pc. Humidity with lower evaporation tray: 93% ±2.5% RH thanks to the Peltier system. Active humidity control: 40-97% RH (Optional, with the K7 option) Number of shelves: 1, number of seats: 5 Internal dimensions: 400 x 330 x 425 mm (W x D x H) External dimensions: 559 x 521 x 791 mm Weight: 55 kg Power: 1,000 W Sterilization cycle at 160°C without removing sensors. Medical CE conformity."

ICO150 med carbon dioxide incubator, 156 liters, two controls
23.ICO150med
MEMMERT ICOmed 150
Request a price Sale product
pc

"Inner wall and inner glass door are heated (all six inner surfaces are heated), made of stainless steel inside and out. Equipped with a vibration-free fan. New touch-screen control (Digital parameter setting, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoCONTROL PC software, USB port for program upload and optional user identification, 2 PT100 temperature sensors). Option (23.C2): battery-protected controller, so CO2 regulation and data registration work even in the event of a mains power failure. In the event of an error, a message can be sent to a mobile phone (option). Temperature range: 20-+50°C (from approx. +5°C to 50°C) Setting accuracy: 0.1°C Temperature homogeneity: ±0.3°C CO2 range: 0 - 20 %, with IR sensor Adjustment accuracy: 0.1% Homogeneity of CO2 over time: ±0.2% Evaporating tray: 1 pc. Humidity with lower evaporation tray: 93% ±2.5% RH thanks to the Peltier system. Active humidity control: 40-97% RH (Optional, with option 23.K7) Number of shelves: 2, number of seats: 10 Internal dimensions: 560 x 400 x 700 mm (W x D x H) External dimensions: 719 x 591 x 1066 mm Weight: 90 kg Power: 2,000 W Sterilization cycle: 60 minutes at 180°C without removing sensors. Medical CE conformity."

"Inner wall and inner glass door are heated (all six inner surfaces are heated), made of stainless steel inside and out. Equipped with a vibration-free fan. New touch-screen control (Digital parameter setting, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoCONTROL PC software, USB port for program upload and optional user identification, 2 PT100 temperature sensors). Option (23.C2): battery-protected controller, so CO2 regulation and data registration work even in the event of a mains power failure. In the event of an error, a message can be sent to a mobile phone (option). Temperature range: 20-+50°C (from approx. +5°C to 50°C) Setting accuracy: 0.1°C Temperature homogeneity: ±0.3°C CO2 range: 0 - 20 %, with IR sensor Adjustment accuracy: 0.1% Homogeneity of CO2 over time: ±0.2% Evaporating tray: 1 pc. Humidity with lower evaporation tray: 93% ±2.5% RH thanks to the Peltier system. Active humidity control: 40-97% RH (Optional, with option 23.K7) Number of shelves: 2, number of seats: 10 Internal dimensions: 560 x 400 x 700 mm (W x D x H) External dimensions: 719 x 591 x 1066 mm Weight: 90 kg Power: 2,000 W Sterilization cycle: 60 minutes at 180°C without removing sensors. Medical CE conformity."

ICO240 med carbon dioxide incubator, 241 liters, two controls
23.ICO240med
MEMMERT ICOmed 240 type CO2 incubator
Request a price Sale product
pc

"internal wall and internal glass door heating (all six internal surfaces are heated), made of stainless steel inside and out. Equipped with a vibration-free fan. New touch screen control (Digital parameter setting, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoCONTROL PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Option (C2): battery-protected controller, so CO2 regulation and data registration work even in the event of a mains power failure. In the event of an error, a message can be sent to a mobile phone. Temperature range: 18-+50°C (from approx. +5°C to 50°C) Setting accuracy: 0.1°C Temperature homogeneity over time at +37 °C: ±0.1 K Temperature homogeneity in space: at +37 °C: ±0.3 K CO2 range: 0 - 20 %, with IR sensor Homogeneity of CO2 over time: ±0.2% Adjustment accuracy: 0.1% Evaporating tray: 1 pc. Humidity with lower evaporation tray: 93% ±2.5% RH thanks to the Peltier system. Active humidity control: 40-97% RH (Optional, with the K7 option) Number of shelves: 2, number of seats: 12 Internal dimensions: 600 x 500 x 810 mm (W x D x H) External dimensions: 759 x 691 x 1180 mm Weight: 110 kg Power: 1650 W Sterilization cycle at 180°C without removing sensors (60 minutes). Medical CE conformity."

"internal wall and internal glass door heating (all six internal surfaces are heated), made of stainless steel inside and out. Equipped with a vibration-free fan. New touch screen control (Digital parameter setting, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoCONTROL PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Option (C2): battery-protected controller, so CO2 regulation and data registration work even in the event of a mains power failure. In the event of an error, a message can be sent to a mobile phone. Temperature range: 18-+50°C (from approx. +5°C to 50°C) Setting accuracy: 0.1°C Temperature homogeneity over time at +37 °C: ±0.1 K Temperature homogeneity in space: at +37 °C: ±0.3 K CO2 range: 0 - 20 %, with IR sensor Homogeneity of CO2 over time: ±0.2% Adjustment accuracy: 0.1% Evaporating tray: 1 pc. Humidity with lower evaporation tray: 93% ±2.5% RH thanks to the Peltier system. Active humidity control: 40-97% RH (Optional, with the K7 option) Number of shelves: 2, number of seats: 12 Internal dimensions: 600 x 500 x 810 mm (W x D x H) External dimensions: 759 x 691 x 1180 mm Weight: 110 kg Power: 1650 W Sterilization cycle at 180°C without removing sensors (60 minutes). Medical CE conformity."

Main features of the Memmert ICOmed controller

Memmert ICO szén-dioxid inkubátor vezérlő

Memmert ICOmed series
ControlCOCKPIT controller settings: Temperature (Celsius or Fahrenheit), CO2 concentration, program time, relative humidity (option), time zone, time adjustment, O2 concentration (option)
Two Pt100 temperature sensors, so the device remains functional even if one of the sensors fails
USB port for program uploading and user identification (the latter can be ordered as an option)
Display of device temperature in approx. From a memory capable of storing 1 week of data
Ethernet network connection port for sending out logging data for program uploading, program control and real-time monitoring.
Multiple temperature protection: electronic monitoring systems, mechanical temperature limiter, automatic temperature monitor. Specifying minimum and maximum values ​​for temperature
Stainless steel with inner and outer zinc coating, color touch screen for control
High-capacity network cable
Parameter log with enough memory for 10 years
Real-time digital clock, timer (can be set between 1 minute and 99 days at 23:00)
Start temperature timer function, which starts the countdown only when the appropriate temperature is reached.
Possibility of 3-point temperature calibration, direct entry of calibration of other parameters

Comparison of functions of display versions.
