Memmert ICH260
Memmert ICH260
Memmert ICH750
Memmert ICH750
Memmert ICH260
Memmert ICH750

Memmert climatic chamber for stability tests (Memmert ICH series)

Memmert

Request a price


Memmert's ICH device was developed for testing the stability of pharmaceutical products (according to the ICH Q1A standard), has a new-generation, two-display, touch-screen controller, and is equipped with AtmoControl software that provides remote monitoring and programming.



Memmert légköpenyes fűtésThe chamber of the device is heated and cooled through a large surface air jacket on four sides. Thanks to the hermetically sealed chamber, the ICH does not require water supply, after it has reached the set humidity by moistening.



Memmert HCP megvilágítássalWith an illumination option (Memmert ICH L), which is capable of 6000 lux illumination with 4 cold light lamps and 2 UV lamps (315-400 nm), the device is also suitable for photostability testing (according to ICH Q1B).



Memmert ICH C provides digital carbon dioxide control from 0-20%..

More details

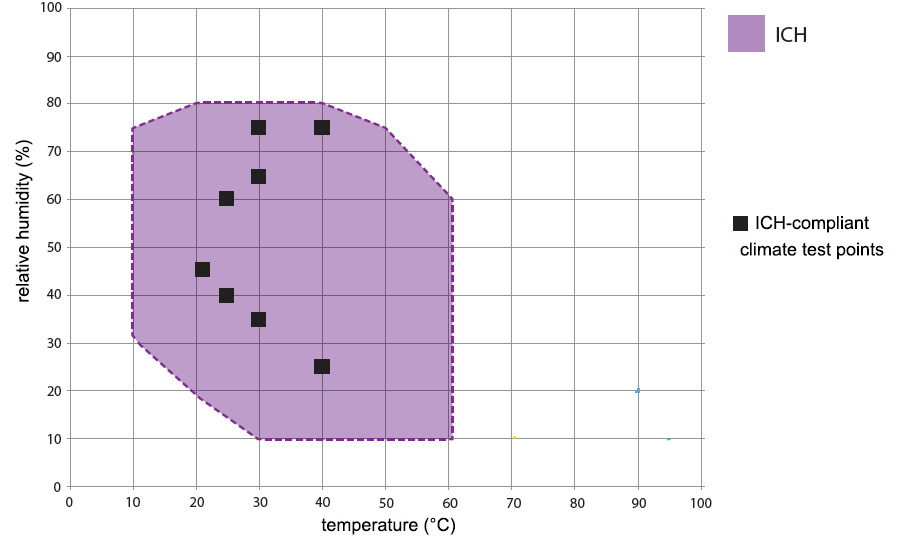

Memmert ICH climatic chamber temperature-humidity control range

The control range of the chamber is designed with ICH tests in mind.

Memmert ICH klimatikus kamra

Technical data of Memmert climatic chambers:

Specifications: ICH ICH L / ICH C
Temperature range without humidity control: -10°C - +60°C 0°C - +60°C
Temperature range with humidity control: +10°C - +60°C +10°C - +60°C
Humidity: 10 - 80% rh 10 - 80% rh
CO2 content control: - - / 0-20%
Temperature control accuracy: ±0,1°C ±0,1°C
Humidity control accuracy: 0,5 %rh 0,5 %rh
CO2 control accuracy: - - / 0,1 %
Chamber volume: 108, 256, 749 liters 108, 256, 749 liters
Voltage: 230 V, regardless of the type 230 V, regardless of the type

code
Volume
Type
Weight
Power
Inner size
External size
net price
amount
in stock
23.ICH110
108 l
ICH110
109 kg
1350 W
56 x 40 x 48 cm
75 x 64 x 124 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Turbulence-free internal ventilation with two displays. Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Temperature range without humidification: -10 to +60°C Temperature range with humidification: +10 - +60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 5. Shelf capacity: 20 kg Total load capacity: 150 kg. Mounted on castors (2 can be fixed). 40 mm hole on the back of the cabinet with a silicone plug. Power: 1,350 W Internal dimensions: 560 x 480 x 400 mm (W x H x D) External dimensions: 745 x 1,233 x 634 mm Weight: 109 kg."

"with an interior, made of stainless steel inside and out. Turbulence-free internal ventilation with two displays. Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Temperature range without humidification: -10 to +60°C Temperature range with humidification: +10 - +60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 5. Shelf capacity: 20 kg Total load capacity: 150 kg. Mounted on castors (2 can be fixed). 40 mm hole on the back of the cabinet with a silicone plug. Power: 1,350 W Internal dimensions: 560 x 480 x 400 mm (W x H x D) External dimensions: 745 x 1,233 x 634 mm Weight: 109 kg."

23.ICH110L
108 l
ICH110L with lighting
109 kg
1450 W
56 x 40 x 48 cm
75 x 64 x 124 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Dual display Turbulence-free internal ventilation with internal lighting (ICH Q1B). Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Lighting: 4 cold light (6500 K) lamps, 2 UV (315-400 nm) lamps. (changeable, can be ordered with up to 6 UV lamps) Temperature range: 0 - 60°C Operating range with lighting: +10 - 60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 5. Shelf capacity: 20 kg Total load capacity: 150 kg. Mounted on castors (2 can be fixed). Power: 1350 W Internal dimensions: 560 x 480 x 400 mm (W x H x D) External dimensions: 745 x 1233 x 634 mm Weight: 109 kg."

"with an interior, made of stainless steel inside and out. Dual display Turbulence-free internal ventilation with internal lighting (ICH Q1B). Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Lighting: 4 cold light (6500 K) lamps, 2 UV (315-400 nm) lamps. (changeable, can be ordered with up to 6 UV lamps) Temperature range: 0 - 60°C Operating range with lighting: +10 - 60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 5. Shelf capacity: 20 kg Total load capacity: 150 kg. Mounted on castors (2 can be fixed). Power: 1350 W Internal dimensions: 560 x 480 x 400 mm (W x H x D) External dimensions: 745 x 1233 x 634 mm Weight: 109 kg."

23.ICH260
256 l
ICH260
153 kg
1350 W
64 x 50 x 80 cm
83 x 74 x 156 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Turbulence-free internal ventilation with two displays. Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Temperature range without humidification: -10 - 60°C Temperature range with humidification: +10 - 60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 9. Shelf capacity: 20 kg Total load capacity: 200 kg. Mounted on castors (2 can be fixed). Power: 1,350 W Internal dimensions: 640 x 800 x 500 mm (W x H x D) External dimensions: 824 x 1552 x 656 mm Weight: 160 kg. ICH chambers comply with the following standards: ICH - WHO - EMA - ASEAN - GMP - GLP - GCCP."

"with an interior, made of stainless steel inside and out. Turbulence-free internal ventilation with two displays. Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Temperature range without humidification: -10 - 60°C Temperature range with humidification: +10 - 60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 9. Shelf capacity: 20 kg Total load capacity: 200 kg. Mounted on castors (2 can be fixed). Power: 1,350 W Internal dimensions: 640 x 800 x 500 mm (W x H x D) External dimensions: 824 x 1552 x 656 mm Weight: 160 kg. ICH chambers comply with the following standards: ICH - WHO - EMA - ASEAN - GMP - GLP - GCCP."

23.ICH260L
256 l
ICH260L with lighting
153 kg
1450 W
64 x 50 x 80 cm
83 x 74 x 156 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Dual display Turbulence-free internal ventilation with internal lighting (ICH Q1B). Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Lighting: 4 cold light (6500 K) lamps, 2 UV (315-400 nm) lamps. (changeable, can be ordered with up to 6 UV lamps) Temperature range: 0 - 60°C Operating range with lighting: +10 - 60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 7. Shelf capacity: 20 kg Total load capacity: 200 kg. Mounted on castors (2 can be fixed). Power: 700 W Internal dimensions: 640 x 800 x 500 mm (W x H x D) External dimensions: 824 x 1552 x 656 mm Weight: 160 kg."

"with an interior, made of stainless steel inside and out. Dual display Turbulence-free internal ventilation with internal lighting (ICH Q1B). Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensors, sound and visual warning signals, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB stick). Lighting: 4 cold light (6500 K) lamps, 2 UV (315-400 nm) lamps. (changeable, can be ordered with up to 6 UV lamps) Temperature range: 0 - 60°C Operating range with lighting: +10 - 60°C Adjustment accuracy: 0.1°C Temperature difference: ±0.3°C Relative humidity: 10 - 80 % (adjustable humidification and discharge) 2 pcs. supplied with grid shelf. Total number of shelves: 7. Shelf capacity: 20 kg Total load capacity: 200 kg. Mounted on castors (2 can be fixed). Power: 700 W Internal dimensions: 640 x 800 x 500 mm (W x H x D) External dimensions: 824 x 1552 x 656 mm Weight: 160 kg."

23.ICH750
749 l
ICH750
249 kg
1350 W
104 x 60 x 120 cm
123 x 84 x 195 cm
Request a price Sale product
pc

with 749 liter stainless steel interior. Stainless steel exterior, touch screen control panel, internal glass door. Controller features: timing from 1 min to 99 day 23 hours, program steps (temperature and humidity profile), real time clock, ethernet port for log and PC control, full access to AtmoControl pc software, HeatBalance function, USB port for program loading and optional USER identification, 2 pcs PT100, advance thermal protection. Air jacket: air jacket heating system for gentle all-around heating Cooling: energy-saving use of CFC-free cooling/heating system (refrigerant R134a) Working temperature range: from -10°C up to +60°C without humidity, from +10°C up to +60°C with humidity Setting accuracy temperature: 0.1°C Supplied with 2 shelves. Max. 14 pc. Max capacity per shelf: 30 kg. Max. load: 200 kg. Active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % Chamber size: 1040 x 600 x 1200 mm (W x D x H) Outer dimension: 1224 x 834 x 1950 mm Power: 1350 W

with 749 liter stainless steel interior. Stainless steel exterior, touch screen control panel, internal glass door. Controller features: timing from 1 min to 99 day 23 hours, program steps (temperature and humidity profile), real time clock, ethernet port for log and PC control, full access to AtmoControl pc software, HeatBalance function, USB port for program loading and optional USER identification, 2 pcs PT100, advance thermal protection. Air jacket: air jacket heating system for gentle all-around heating Cooling: energy-saving use of CFC-free cooling/heating system (refrigerant R134a) Working temperature range: from -10°C up to +60°C without humidity, from +10°C up to +60°C with humidity Setting accuracy temperature: 0.1°C Supplied with 2 shelves. Max. 14 pc. Max capacity per shelf: 30 kg. Max. load: 200 kg. Active humidifying and de-humidifying adjustable from 10-80 % rh with digital display of relative humidity - resolution of display 0.1 %, setting accuracy 0.5 % Chamber size: 1040 x 600 x 1200 mm (W x D x H) Outer dimension: 1224 x 834 x 1950 mm Power: 1350 W

23.ICH750L
749 l
ICH750L with lighting
249 kg
1530 W
104 x 60 x 120 cm
123 x 84 x 195 cm
Request a price Sale product
pc

with 749 l interior, made of stainless steel inside and out. Dual display Turbulence-free internal ventilation with internal lighting (ICH Q1B). Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensor, audible and visual alarms, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB sticks). Illumination: 4 cold light (6500 K) lamps, 2 UV (315-400 nm) lamps. (can be changed, can be ordered with up to 6 UV lamps) Temperature range: 0 to 60 ° C Operating range with lighting: +10 - 60 ° C Setting accuracy: 0.1 ° C Temperature difference: ± 0.3 ° C Relative humidity holds: 10 - 80% (adjustable humidification and dehumidification) Supplied with 2 shelves. Total number of shelves that can be placed: 14 pcs. Shelf load capacity: 30 kg Total load capacity: 200 kg. Mounted on castors (2 can be fixed). Power: 1,530 W Internal size: 1040 x 600 x 1200 mm (W x H x D) External dimensions: 1224 x 834 x 1950 mm Weight: 249 kg.

with 749 l interior, made of stainless steel inside and out. Dual display Turbulence-free internal ventilation with internal lighting (ICH Q1B). Advanced control and documentation functions (real-time clock control, 2 Pt100 temperature and humidity sensor, audible and visual alarms, USB port, LAN output, internal memory, computer documentation and control with AtmoCONTROL software, USB sticks). Illumination: 4 cold light (6500 K) lamps, 2 UV (315-400 nm) lamps. (can be changed, can be ordered with up to 6 UV lamps) Temperature range: 0 to 60 ° C Operating range with lighting: +10 - 60 ° C Setting accuracy: 0.1 ° C Temperature difference: ± 0.3 ° C Relative humidity holds: 10 - 80% (adjustable humidification and dehumidification) Supplied with 2 shelves. Total number of shelves that can be placed: 14 pcs. Shelf load capacity: 30 kg Total load capacity: 200 kg. Mounted on castors (2 can be fixed). Power: 1,530 W Internal size: 1040 x 600 x 1200 mm (W x H x D) External dimensions: 1224 x 834 x 1950 mm Weight: 249 kg.

Main features of Memmert ICH stability chamber with two displays

Memmert ICH stabilitás kamra vezérlő

Memmert ICH series
ControlCOCKPIT control settings: Temperature (Celsius or Fahrenheit), fan speed, position of the fresh air control butterfly valve, program time, relative humidity, time zone, time adjustment, lighting (option)
Two Pt100 temperature sensors, so the device remains functional even if one of the sensors fails
HeatBALANCE function: for changing the spatial distribution of heating temperature. It enables the setting of different heating performance of the upper and lower heating fibers
USB port for program uploading and user identification (the latter can be ordered as an option)
Display of device temperature in approx. From a memory capable of storing 1 week of data
Ethernet network connection port for sending out logging data for program uploading, program control and real-time monitoring.
Multiple temperature protection: electronic monitoring systems, mechanical temperature limiter, automatic temperature monitor. Specifying minimum and maximum values ​​for temperature
Stainless steel with inner and outer zinc coating, color touch screen for control
High-capacity network cable
Parameter log with enough memory for 10 years
Real-time digital clock, timer (can be set between 1 minute and 99 days at 23:00)
Start temperature timer function, which starts the countdown only when the appropriate temperature is reached.
Possibility of 3-point temperature calibration, direct entry of calibration of other parameters

Comparison of functions of display versions.

Incubator for stability testing (Memmert ICH)
Memmert ICH 110 datasheet
Memmert ICH 260 datasheet
Memmert ICH 750 datasheet
Incubator for stability testing with lightinh (Memmert ICH L)
Memmert ICH 110 L datasheet
Memmert ICH 260 L datasheet
Memmert ICH 750 L datasheet
Incubator for stability testing with CO2 control (Memmert ICH C)
Memmert ICH 110 C datasheet
Memmert ICH 260 C datasheet
Memmert ICH 750 C datasheet
