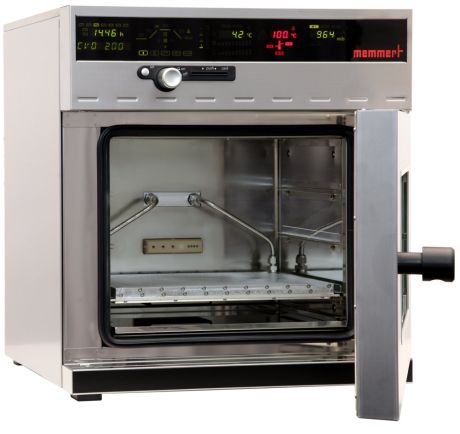

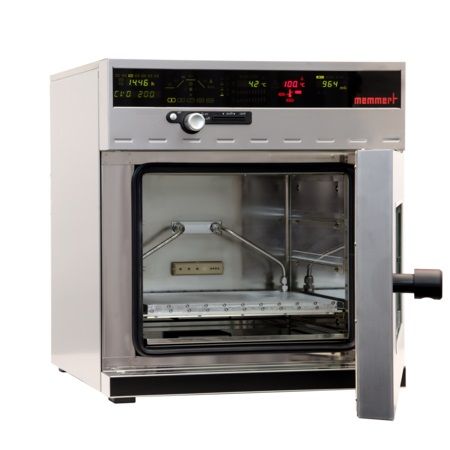

Memmert VO200cool cooled vacuum drying cabinet
Memmert VO200cool cooled vacuum drying cabinet

Memmert cooled vacuum drying cabinets (VOCool series)

Memmert

Request a price


The version equipped with a liquid-cooled shelf for VO-series vacuum drying cabinets, which can cool a sample placed in a vacuum chamber to +5°C as standard, with an optional accessory up to 0°C. The cooling performance is ensured by the economical and reliable Peltier element cooling system.

Type Memmert VO200cool Memmert VO400cool
Size 29 liter 49 liter
Thermostating range:
+5 - +90 °C*
+5 - +90 °C*
Vacuum range:
0.01 mbar
0.01 mbar
Accuracy of temperature maintenance:
≤ ± 0.3
≤ ± 0.3
Temperature homogeneity on the shelf:
≤ ± 1
≤ ± 1
Number of shelves:
1
1
Shelves load capacity:
20 kg
20 kg

*With an optional accessory, a lower temperature value of 0°C is also available.

More details
code
Volume
Type
Power
Inner size
External size
net price
amount
in stock
23.VO200C
29 l
Memmert VO200cool
400 W
39 x 25 x 31cm
55 x 60 x 65 cm
Request a price
pc

"with interior, special glass security door. Advanced control and documentation functions (real-time clock control, Pt100 temperature and digital pressure sensor, sound and visual warning signals, USB port (optional LAN), printer output, internal memory, computer documentation and control with Celsius software, card writer-reader). Equipped with economical Peltier element cooling. Temperature range: +5 - 90°C Temporal homogeneity on the shelf: <±0.3°C Temperature difference: <± 1°C (at 20°C and 50 mbar) Permitted final vacuum: 0.01 mbar 1 pc. with chip card (but without the chip card reader) and 1 pc. delivered with a shelf. Total number of shelves that can be placed: 1 pc. Shelf capacity: 20 kg Total load capacity of the cabinet: 20 kg Power: 400 W Internal dimensions: 385 x 250 x 305 mm (W x D x H) External dimensions: 550 x 400 x 600 mm The vacuum pump cabinet for the device, and the support stand for easy handling, must be ordered separately!"

"with interior, special glass security door. Advanced control and documentation functions (real-time clock control, Pt100 temperature and digital pressure sensor, sound and visual warning signals, USB port (optional LAN), printer output, internal memory, computer documentation and control with Celsius software, card writer-reader). Equipped with economical Peltier element cooling. Temperature range: +5 - 90°C Temporal homogeneity on the shelf: <±0.3°C Temperature difference: <± 1°C (at 20°C and 50 mbar) Permitted final vacuum: 0.01 mbar 1 pc. with chip card (but without the chip card reader) and 1 pc. delivered with a shelf. Total number of shelves that can be placed: 1 pc. Shelf capacity: 20 kg Total load capacity of the cabinet: 20 kg Power: 400 W Internal dimensions: 385 x 250 x 305 mm (W x D x H) External dimensions: 550 x 400 x 600 mm The vacuum pump cabinet for the device, and the support stand for easy handling, must be ordered separately!"

23.VO400C
49 l
Memmert VO400cool
500 W
39 x 33 x 39 cm
55 x 68 x 73 cm
Request a price
pc

"with interior, special glass security door. Advanced control and documentation functions (real-time clock control, Pt100 temperature and digital pressure sensor, sound and visual warning signals, USB port (optional LAN), printer output, internal memory, computer documentation and control with Celsius software, card writer-reader). Temperature range: +5 - 90°C Temporal homogeneity on the shelf: <±0.3°C Temperature difference: <± 1°C (at 20°C and 50 mbar) Permitted final vacuum: 0.01 mbar 1 pc. with chip card (but without the chip card reader) and 1 pc. delivered with a shelf. Total number of shelves that can be placed: 1 pc. Shelf capacity: 20 kg Total load capacity of the cabinet: 20 kg Power: 500 W Internal dimensions: 385 x 330 x 385 mm (W x D x H) External dimensions: 550 x 480 x 680 mm The vacuum pump cabinet for the device and the support stand (at the bottom of the picture) for easy handling must be ordered separately!"

"with interior, special glass security door. Advanced control and documentation functions (real-time clock control, Pt100 temperature and digital pressure sensor, sound and visual warning signals, USB port (optional LAN), printer output, internal memory, computer documentation and control with Celsius software, card writer-reader). Temperature range: +5 - 90°C Temporal homogeneity on the shelf: <±0.3°C Temperature difference: <± 1°C (at 20°C and 50 mbar) Permitted final vacuum: 0.01 mbar 1 pc. with chip card (but without the chip card reader) and 1 pc. delivered with a shelf. Total number of shelves that can be placed: 1 pc. Shelf capacity: 20 kg Total load capacity of the cabinet: 20 kg Power: 500 W Internal dimensions: 385 x 330 x 385 mm (W x D x H) External dimensions: 550 x 480 x 680 mm The vacuum pump cabinet for the device and the support stand (at the bottom of the picture) for easy handling must be ordered separately!"
