Memmert UF-750 TS átadó szárítószekrény
Memmert UF-750 TS átadó szárítószekrény

Memmert pass throug drying ovens (UF TS series)

Memmert

Request a price

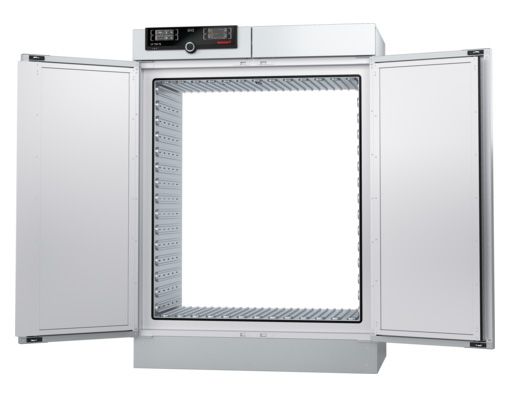

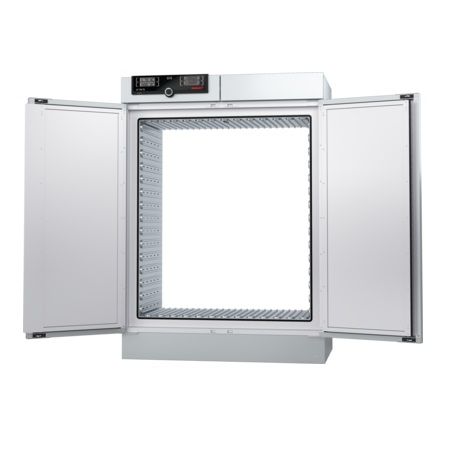

Memmert's two-door drying ovens with transfer system were developed to supply clean rooms for biotechnology, pharmaceutical and electronics manufacturers. The devices can be ordered in four sizes.

The devices, renewed in 2016, are equipped with a touch screen controller and have all the functions of the plus series chambers with two displays.

Üvegablakok átadó kamrába

The devices can also be ordered with optional viewing glass windows (2 pieces per door).

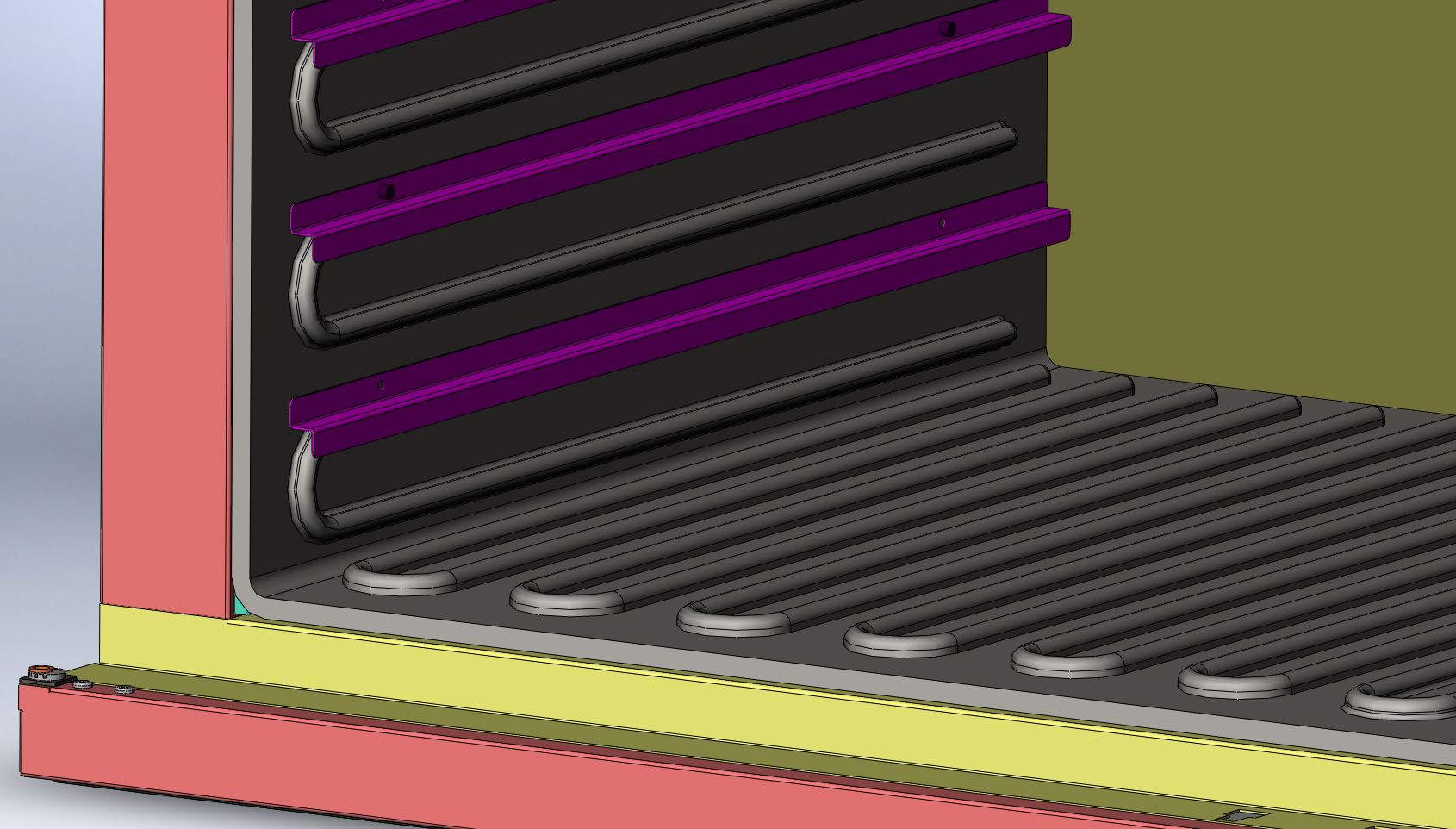

megerősítet polcok tartója Memmert kamrában



For greater productivity, the load capacity of the shelves can be optionally increased to 60 kg per shelf.

More details

Specifications: UF160TS UF260TS UF450TS UF750TS
Size: 161 liters 256 liters 449 liters 749 liters
Number of doors (per side): 1 pc 1 pc 2 pc 2 pc
Thermostating range: +20 - +300°C +20 - +300°C +20 - +300°C +20 - +300°C
Insertable max. shelf/grid 8 pc 9 pc 8 pc 14 pc
Shelf max. load capacity 20 kg 20 kg 30 kg 30 kg
Transmitter max. load capacity 210 kg 300 kg 300 kg 300 kg
Weight: 120 kg 138 kg 213 kg 260 kg



code
Volume
Type
Power
Inner size
External size
net price
amount
in stock
23.UF160TS
161 l
Memmert UF160TS
3200 W
56 x 72 x 40 cm
83 x 130 x 80 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +300 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 8. Chamber max. load capacity: 210 kg, 20 kg per standard shelf. Power: 3,200 W Internal dimensions: 560 x 720 x 400 mm (W x H x D) External dimensions: 745 x 1,104 x 584 mm, height increases by an additional 133 mm Weight: 120 kg Models 160 and 260 come with a single-leaf door."

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +300 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 8. Chamber max. load capacity: 210 kg, 20 kg per standard shelf. Power: 3,200 W Internal dimensions: 560 x 720 x 400 mm (W x H x D) External dimensions: 745 x 1,104 x 584 mm, height increases by an additional 133 mm Weight: 120 kg Models 160 and 260 come with a single-leaf door."

23.UF260TS
256 l
Memmert UF260TS
3400 W
64 x 80 x 50 cm
93 x 138 x 93 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +300 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 9. Chamber max. load capacity: 300 kg, 20 kg per standard shelf. Power: 3,400 W Internal dimensions: 640 x 800 x 500 mm (W x H x D) External dimensions: 824 x 1,183 x 684 mm, height increases by an additional 133 mm Weight: 138 kg Models 160 and 260 come with a single-leaf door."

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +300 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 9. Chamber max. load capacity: 300 kg, 20 kg per standard shelf. Power: 3,400 W Internal dimensions: 640 x 800 x 500 mm (W x H x D) External dimensions: 824 x 1,183 x 684 mm, height increases by an additional 133 mm Weight: 138 kg Models 160 and 260 come with a single-leaf door."

23.UF450TS
449 l
Memmert UF450TS
5800 W / 3N
104 x 72 x 60 cm
133 x 145 x 105 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +250 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 8. Chamber max. load capacity: 300 kg, 30 kg per standard shelf. Power: 5,800 W (3 phases) Internal dimensions: 1,040 x 720 x 600 mm (W x H x D) External dimensions: 1,224 x 1,247 x 784 mm, height increases by an additional 133 mm Weight: 213 kg"

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +250 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 8. Chamber max. load capacity: 300 kg, 30 kg per standard shelf. Power: 5,800 W (3 phases) Internal dimensions: 1,040 x 720 x 600 mm (W x H x D) External dimensions: 1,224 x 1,247 x 784 mm, height increases by an additional 133 mm Weight: 213 kg"

23.UF750TS
749 l
Memmert UF750TS
7000 W / 3N
104 x 120 x 60 cm
133 x 192 x 105 cm
Request a price Sale product
pc

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +300 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 14. Chamber max. load capacity: 300 kg, 30 kg per standard shelf. Power: 7,000 W (3 phases) Internal dimensions: 1,040 x 1,200 x 600 mm (W x H x D) External dimensions: 1,224 x 1,726 x 784 mm, the height is increased by an additional 133 mm. Weight: 260 kg"

"with an interior, made of stainless steel inside and out. Version equipped with two doors, ideal for transferring samples requiring heat treatment between individual rooms. Plus program controller (Digital temperature and timing adjustment, delayed timing, advanced program step control, Ethernet port for data output and control, AtmoControl PC software, HeatBALANCE function, USB port for program upload and user identification, 2 PT100 temperature sensors). Temperature range: +20 (min. ambient temperature +10°C) - +300 °C Temperature accuracy: ± 0.1 °C (< 99°-C) With fan, 2 pcs. supplied with grid shelf. Total number of shelves: 14. Chamber max. load capacity: 300 kg, 30 kg per standard shelf. Power: 7,000 W (3 phases) Internal dimensions: 1,040 x 1,200 x 600 mm (W x H x D) External dimensions: 1,224 x 1,726 x 784 mm, the height is increased by an additional 133 mm. Weight: 260 kg"

Main features of the Memmert hot air sterilizer with two displays

Memmert két kijelzős vezérlő

Memmert SNplus, SFplus series
ControlCOCKPIT control settings: Temperature (Celsius or Fahrenheit), fan speed, position of the fresh air control butterfly valve, program time, relative humidity, time zone, time adjustment, lighting (option)
Two Pt100 temperature sensors, so the device remains functional even if one of the sensors fails
HeatBALANCE function: for changing the spatial distribution of heating temperature. It enables the setting of different heating performance of the upper and lower heating fibers
USB port for program uploading and user identification (the latter can be ordered as an option)
Display of device temperature in approx. From a memory capable of storing 1 week of data
Ethernet network connection port for sending out logging data for program uploading, program control and real-time monitoring.
Multiple temperature protection: electronic monitoring systems, mechanical temperature limiter, automatic temperature monitor. Specifying minimum and maximum values ​​for temperature
Stainless steel with inner and outer zinc coating, color touch screen for control
High-capacity network cable
Parameter log with enough memory for 10 years
Real-time digital clock, timer (can be set between 1 minute and 99 days at 23:00)
Start temperature timer function, which starts the countdown only when the appropriate temperature is reached.
Possibility of 3-point temperature calibration, direct entry of calibration of other parameters

Comparison of functions of display versions.
