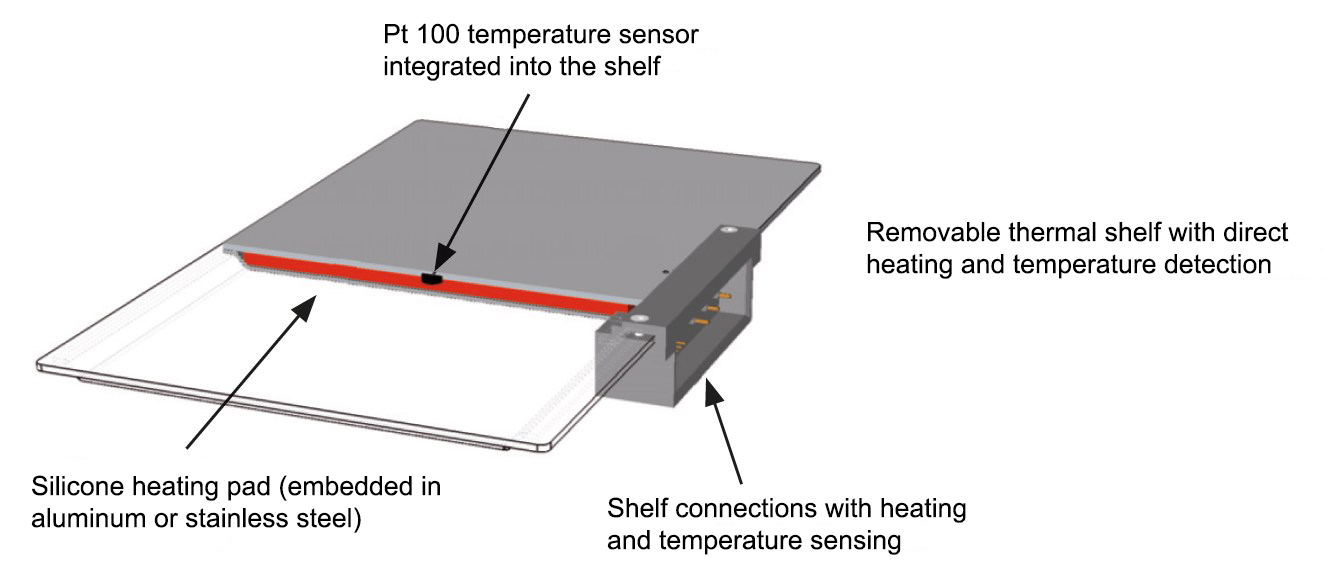

Memmert's vacuum drying cabinets, which offer significantly faster technology than traditional drying technology, have digital vacuum control, shelf heating and separate calibration for each shelf. The devices can be programmed and monitored via the AtmoCONTROL icon-driven software via an ethernet connection.
More detailsA vacuum pump (PMP module) located in a sound-insulated chamber can be ordered for the device as an option, with the intelligent control of which up to 70% energy savings can be achieved.
If required, an inert gas inlet and additional shelves can be connected to the device.
Specifications: | VO 29 | VO 49 | VO 101 |
---|---|---|---|
Volume: | 29 liters | 49 liters | 101 liters |
Consumption: | 420 Watt (820 Watt with all shelves) | 1,020 Watt (2,020 Watt with all shelves) | 1,220 Watt (2,420 Watt with all shelves) |
Temperature range: | 20 (ambient temp. + 5°C) – 200 ºC | 20 (ambient temp. + 5°C) – 200 ºC | 20 (ambient temp. + 5°C) – 200 ºC |
Tempreature setting: | per 0.1 ºC | per 0.1 ºC | per 0.1 ºC |
Temperature stability: | ± 0.3 ºC | ± 0.3 ºC | ± 0.3 ºC |
Temperature homogenity: | ± 2 ºC | ± 2 ºC | ± 2 ºC |
Vacuum range: | 5-1,100 mbar | 5-1,100 mbar | 5-1,100 mbar |
Allowed vacuum: | 0.01 mbar | 0.01 mbar | 0.01 mbar |
Number of tray slots: | 1 pc | 2 pc (4 pc with premium module) | 2 pc (4 pc with premium module) |
Internal dimensions: (WxDxH): | 385 x 305 x 205 cm | 385 x 385 x 330 cm | 545 x 465 x 400 cm |
External dimesnions: | 550 x 607 x 400 cm | 550 x 687 x 480 cm | 710 x 767 x 550 cm |
Weight:: | 55 kg | 83 kg | 110 kg |
Main features of the Memmert VO vacuum drying cabinet controller
Memmert VO series |
---|
ControlCOCKPIT control settings: Temperature (Celsius or Fahrenheit), vacuum value, program time, time zone, time adjustment |
Temperature display per shelf |
USB port for program uploading and user identification (the latter can be ordered as an option) |
Display of device temperature in approx. From a memory capable of storing 1 week of data |
Ethernet network connection port for sending out logging data for program uploading, program control and real-time monitoring. |
Multiple temperature protection: electronic monitoring systems, mechanical temperature limiter, automatic temperature monitor. Specifying minimum and maximum values for temperature |
Stainless steel with inner and outer zinc coating, color touch screen for control |
High-capacity network cable |
Parameter log with enough memory for 10 years |
Real-time digital clock, timer (can be set between 1 minute and 99 days at 23:00) |
Start temperature timer function, which starts the countdown only when the appropriate temperature is reached. |
Possibility of 3-point temperature calibration, direct entry of calibration of other parameters |
Vacuum source for the vacuumable cabinet with control, if required with a soundproof chamber.
