NÜVE ND 12 water distiller, wall mounted or benchtop

Nüve distilling devices

Nüve

Request a price

A kettle made of stainless steel is built into all NÜVE water distillers. In the selection of devices, both routine laboratories and institutions dealing with research/development will find something suitable for their purposes.
In their appearance, these devices do not even resemble the usual complicated structures made of glass. NÜVE distillers are compact, small-space, attractive-looking devices that can be placed on the table or mounted on the wall.

The devices perform single distillation and use normal tap water to produce distilled water. The total water consumption is about ten times that of the produced distilled water.

NS103

Economic model for wall mounting. It is equipped with protection against water loss, the pressure of the incoming water can be checked with a manometer.

More details

ND series

Devices that can be mounted on a wall or installed on a table. Their operation is fully automatic, controlled by a microprocessor. The useful volume of the boiler tank is 13 liters. The heaters are completely covered by water at a height of 10 centimeters. There is still almost three times the free volume (27 cm high) above the boiled water to prevent the liquid phase from passing into the condensing tank.

Calcium dissolved in water is significantly reduced by the Silfos filter in the boiler tank and on the heating elements. The boiler, condensing tank and heaters are also made of stainless steel. In the event of a water supply problem, the device automatically switches to safety mode. The conductivity of distilled water is approx. 2.5 µSiemens/cm at 20°C.

The devices collect distilled water in an internal tank. The capacity of the tank (half full, full) is indicated by LEDs. Additional LEDs warn of too low or high water pressure or heater failure.

All metal parts of the devices - with the exception of the outer casing - are made of stainless steel. The outer casing is protected from corrosion by a coating applied by electrostatic powder spraying.


code

Size

Distillate

Water consumption

Power consumption

net price

amount

in stock

NÜVE NS 103 economical water distiller, 3.5l/h, wall mounted

35.NS103

360 x 225 x 545 mm

3.5 liters/hour

<35 liters/hour

2,5 kW

Request a price

"The device didistiller in one go! Externally painted steel plate casing, internal tanks and heaters are made of stainless steel. Cooling water consumption: 35 liters/hour Protection: in case of low water level or water supply failure. LED warning in case of low water level. Manometer (0-100 mbar): for regulating and reading the inlet water pressure. Wall-mounted. Conductivity of didistillered water: approx. 2.5 µSiemens/cm at 20°C, which depends on the quality of the feed water. CO2 degassing on the gas outlet pipe. Power: 2,500 W (1 phase) Size: 410 x 260 x 565 mm Weight: 11 kg It does not have an internal water collection tank. The price of the device does not include the costs of commissioning! It is the responsibility of the customer to supply the water, to establish the drain and the mains power supply!"

35.ND4

770 x 400 x 600 mm

4 liters/hour

<40 liters/hour

3 x 1 kW

Request a price

Microprocessor control, fully automatic operation. It can be mounted on a wall or placed on a table. The device distills simply!! Externally painted aluminum sheet cover, the internal structure, the boiler and condensing tanks, as well as the heaters are made of stainless steel. Built-in shore (replaceable) to reduce calcification, safety mode in case of water shortage. With an 8 liter internal storage tank (stainless steel) for storing distilled water. The conductivity of distilled water is approx. 2.5 µSiemens/cm at 20°C depending on the quality of the incoming water. Level indicators: storage tank half and storage tank full. It can also be used in continuous (flowing) operation. Cooling water consumption: approx. 40 litres/hour. Energy supply: 3 x 1 kW, 3 phases. Size: 820 x 395 x 650 mm. (WxDxH). The price of the device does not include the costs of commissioning! It is the responsibility of the customer to supply the water, to establish the drain and the mains power supply! The picture is an illustration! (We do not have a photo of the 4 liter device).

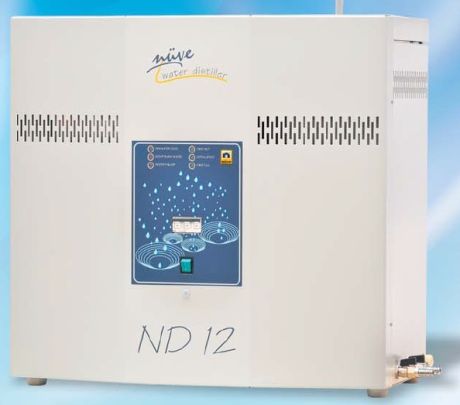

ND 12 Water distiller, with 12L / hour capacity

35.ND12

770 x 400 x 600 mm

12 liters/hour

<120 liters/hour

3 x 3 kW

Request a price

Microprocessor controlled, fully automatic distiller. It can be install either on the wall, or simply placed on the bench. Internal tank with volume of 24 litre. Water level indication in the tank: half & full tank. Quality of distilled water: ~2,5 μSiemens/cm at 20°C, depending on the quality of the tap water. Water consumption: <130 L/hour. Dimensions: 770 x 400 x 660 mm. Power supply: 3 x 3 kW, 3 phases.
