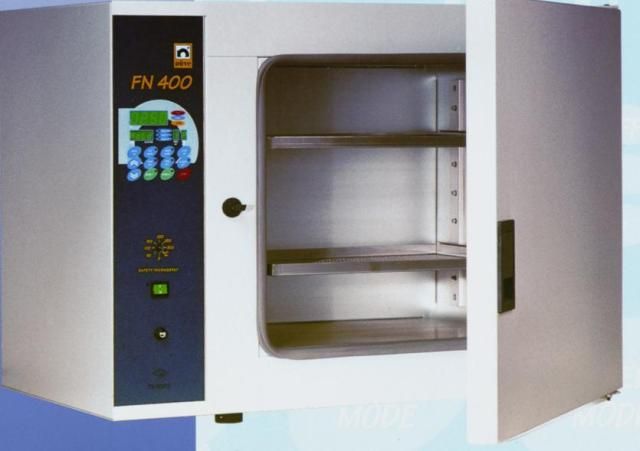

NÜVE drying cabinets, FN 400, (FN and KD series)
NÜVE drying cabinets, FN 400, (FN and KD series)

NÜVE drying cabinets (FN and KD series)

Nüve

Request a price


NÜVE's drying cabinets (hot air sterilizers) are available in a wide range of sizes and at a good performance/price ratio. FN series: they are made in eight sizes, 22-120 liter versions, for drying and hot air sterilization tasks. Equipment built with programmable, microprocessor (PID) control and user-friendly controls. The temperature, operating time and delayed start (Delay) and temperature maintenance (Hold) can be set digitally on the control panel.
Depending on the type, their interior is anodized aluminum or stainless steel. The triple thermal insulation and the air jacket heating system ensure a stable and homogeneous temperature in the chamber. Some models have fan air mixing for more intensive ventilation and the best possible temperature distribution. The devices are equipped with protection against overheating.

FN 032/055/120 type: the stainless steel interior is easy to clean and resistant to most chemicals.

FN 300/400/500 type: they have an anodized aluminum interior.

FN 300P/400P/500P type: equipment made with stainless steel interior and fan air mixing.

KD 200 and 400 type: large drying cabinets of 193 and 375 liters with microprocessor (PID) control, user-friendly interface and digital display.

Adjustable parameters: temperature, operating time, temperature maintenance and delay time. Their interior is made of stainless steel, the uniform temperature distribution of which is ensured by the high-performance fan. They are equipped with protection against overheating.

Specifications: FN series KD 200 / KD 400
Thermostating range: k.h.+5 – 250 °C 70 – 250 °C
Controller accuracy*: ±1 °C ±2 °C
Temperature inhomogenity*: ±2 °C ±4 °C
Voltage: 220 V 400 V, 3 phase
*average value: depends on the size and ventilation of the device.

code
Volume
Type
Power
Inner size
External size
Shelf / Places
net price
amount
in stock
35.FN300
22 l
FN300
500 W
30 x 24 x 30 cm
56 x 38 x 46 cm
2 / 6 pc
Request a price
pc

anodized aluminum interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. 2 pcs. delivered with a shelf. Max. temperature: 250 °C Internal dimensions: 300 x 240 x 300 mm External dimensions: 555 x 380 x 460 mm. Manufacturer: NÜVE

anodized aluminum interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. 2 pcs. delivered with a shelf. Max. temperature: 250 °C Internal dimensions: 300 x 240 x 300 mm External dimensions: 555 x 380 x 460 mm. Manufacturer: NÜVE

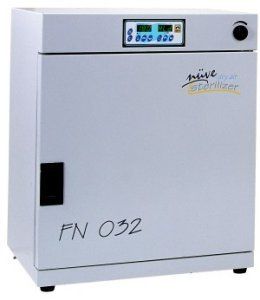

35.FN032
32 l
FN032
600 W
33 x 30 x 33 cm
56 x 48 x 68 cm
2 / 6 pc
Request a price
pc

"stainless steel interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. 2 pcs. delivered with a shelf. Max. temperature: 70 - 250 °C Internal dimensions: 330 x 300 x 330 mm External dimensions: 690 x 500 x 540 mm. Power: 700 W"

"stainless steel interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. 2 pcs. delivered with a shelf. Max. temperature: 70 - 250 °C Internal dimensions: 330 x 300 x 330 mm External dimensions: 690 x 500 x 540 mm. Power: 700 W"

35.FN400P
42 l
FN400P
800 W
42 x 33 x 36 cm
78 x 63 x 68 cm
2 / 7 pc
Request a price
pc

"stainless steel interior, painted steel exterior. With microprocessor programmable controller. One PC program can be stored in the controller. Fan air mixing, two pcs. shelf. Max. temperature: 250 °C. Internal dimensions: 420x280x360 mm"

"stainless steel interior, painted steel exterior. With microprocessor programmable controller. One PC program can be stored in the controller. Fan air mixing, two pcs. shelf. Max. temperature: 250 °C. Internal dimensions: 420x280x360 mm"

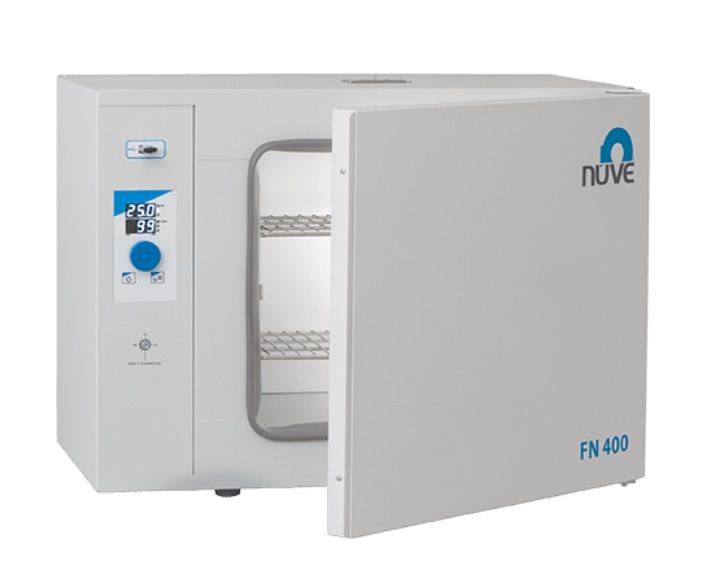

35.FN400
44 l
FN400
800 W
42 x 37 x 36 cm
70 x 58 x 54 cm
2 / 7 pc
Request a price
pc

"anodized aluminum interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. Supplied with 2 shelves. Max. temperature: 250 °C Controller accuracy: +-1 °C Internal size: 420x320 mm."

"anodized aluminum interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. Supplied with 2 shelves. Max. temperature: 250 °C Controller accuracy: +-1 °C Internal size: 420x320 mm."

35.FN055
55 l
FN055
1000 W
41 x 39 x 44 cm
65 x 55 x 72 cm
2 / 7 pc
Request a price
pc

"Stainless steel interior, painted steel exterior. With PID microprocessor programmable controller. One pc. program can be stored in the controller. Large digital display: temperature, time. Password protected menu. Programmable cutting limits. USB data recording. Timing: 1 minute - 99.9 hours Triple insulation. Adjustable safety thermostat. 2 pcs. delivered with a shelf. Max. temperature: 70 - 250 °C Internal dimensions: 410 x 370 x 360 mm External dimensions: 645 x 565 x 710 mm. Manufacturer: NÜVE"

"Stainless steel interior, painted steel exterior. With PID microprocessor programmable controller. One pc. program can be stored in the controller. Large digital display: temperature, time. Password protected menu. Programmable cutting limits. USB data recording. Timing: 1 minute - 99.9 hours Triple insulation. Adjustable safety thermostat. 2 pcs. delivered with a shelf. Max. temperature: 70 - 250 °C Internal dimensions: 410 x 370 x 360 mm External dimensions: 645 x 565 x 710 mm. Manufacturer: NÜVE"

35.FN500P
110 l
FN500P
1600 W
50 x 45 x 50 cm
79 x 66 x 67 cm
2 / 10 pc
Request a price

 Temperature range: 70°C to 250°C  Interior chamber: Stainless Steel  N-Prime™ programmable PID microprocessor control system  Easy programming with one button, just turn and push  Large bright digital display for temperature and time  Password protected menu to secure the operation  Programmable alarm limits  Internal memory up to 125 days  Data recording on memory stick by means of USB port  Timer: 1 min. to 99,9 hours and hold position  Delayed start timer: 1 min. to 99,9 hours  Adjustable safety thermostat  Two shelves  230V - 50/60 Hz

 Temperature range: 70°C to 250°C  Interior chamber: Stainless Steel  N-Prime™ programmable PID microprocessor control system  Easy programming with one button, just turn and push  Large bright digital display for temperature and time  Password protected menu to secure the operation  Programmable alarm limits  Internal memory up to 125 days  Data recording on memory stick by means of USB port  Timer: 1 min. to 99,9 hours and hold position  Delayed start timer: 1 min. to 99,9 hours  Adjustable safety thermostat  Two shelves  230V - 50/60 Hz

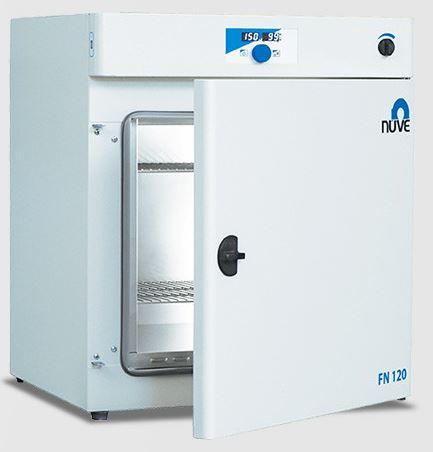

35.FN120
120 l
FN120
1600 W
50 x 50 x 48 cm
73 x 66 x 85 cm
2 / 10 pc
Request a price
pc

"Stainless steel interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. Supplied with 2 shelves. A total of 10 shelves can be placed. Large digital display: temperature, time. Password protected menu. Programmable cutting limits. USB data recording. Timing: 1 minute - 99.9 hours Triple insulation. Adjustable safety thermostat. 2 pcs. delivered with a shelf. Temperature range: 70 - 250 °C, Power: 1600 W Internal dimensions: 500 x 480 x 500 mm External dimensions: 730 x 670 x 850 mm Weight: 62 kg"

"Stainless steel interior, painted steel exterior. With microprocessor programmable controller. One pc. program can be stored in the controller. Supplied with 2 shelves. A total of 10 shelves can be placed. Large digital display: temperature, time. Password protected menu. Programmable cutting limits. USB data recording. Timing: 1 minute - 99.9 hours Triple insulation. Adjustable safety thermostat. 2 pcs. delivered with a shelf. Temperature range: 70 - 250 °C, Power: 1600 W Internal dimensions: 500 x 480 x 500 mm External dimensions: 730 x 670 x 850 mm Weight: 62 kg"

35.FN500
120 l
FN500
1600 W
49 x 49 x 50 cm
79 x 62 x 67 cm
2 / 10 pc
Request a price
pc

 Temperature range: 70°C to 250°C  Interior chamber: Anodic oxidated aluminum  N-Prime™ programmable PID microprocessor control system  Easy programming with one button, just turn and push  Large bright digital display for temperature and time  Password protected menu to secure the operation  Programmable alarm limits  Internal memory up to 125 days  Data recording on memory stick by means of USB port  Timer: 1 min. to 99,9 hours and hold position  Delayed start timer: 1 min. to 99,9 hours  Adjustable safety thermostat  Two shelves  230V - 50/60 Hz

 Temperature range: 70°C to 250°C  Interior chamber: Anodic oxidated aluminum  N-Prime™ programmable PID microprocessor control system  Easy programming with one button, just turn and push  Large bright digital display for temperature and time  Password protected menu to secure the operation  Programmable alarm limits  Internal memory up to 125 days  Data recording on memory stick by means of USB port  Timer: 1 min. to 99,9 hours and hold position  Delayed start timer: 1 min. to 99,9 hours  Adjustable safety thermostat  Two shelves  230V - 50/60 Hz

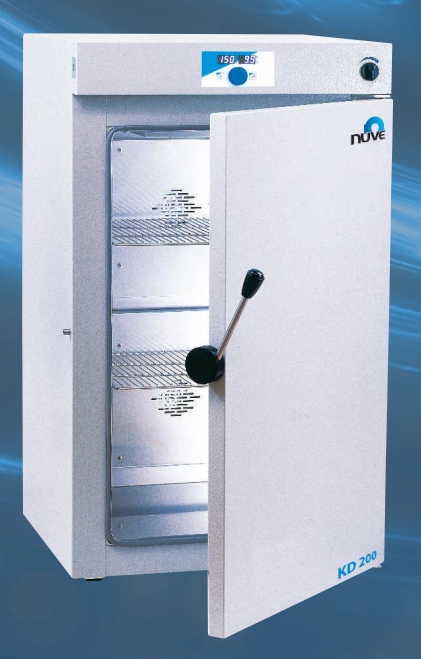

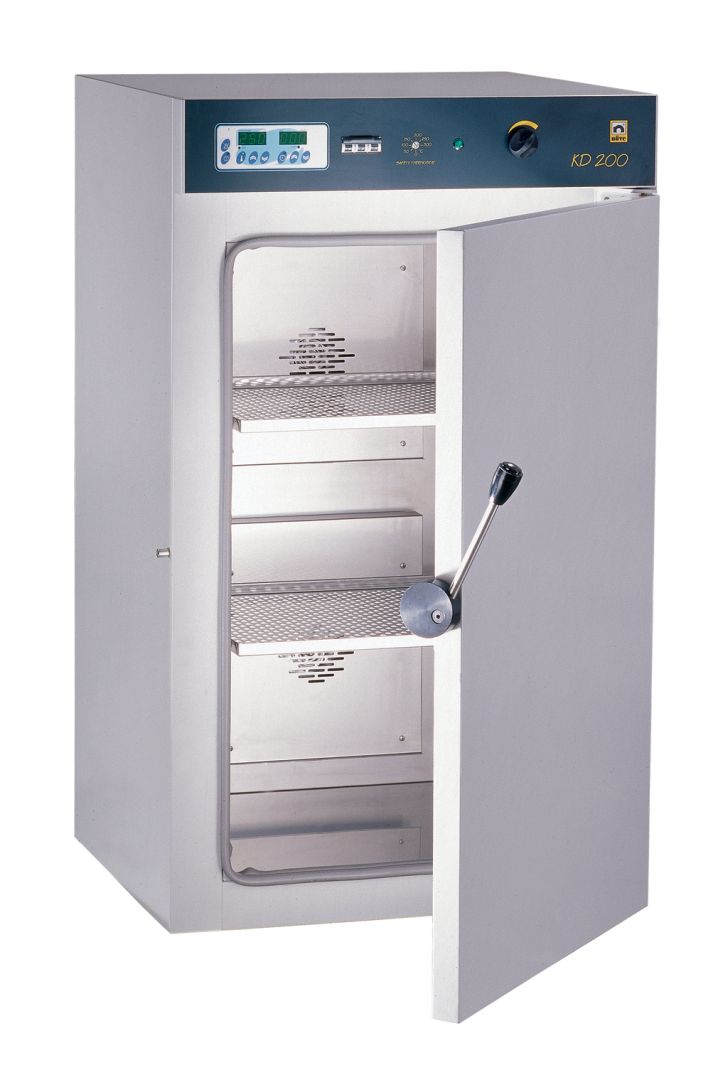

35.KD200
193 l
KD200
3000 W
50 x 46 x 85 cm
65 x 68 x 114 cm
2 / 10 pc
Request a price
pc

"with interior space. Interior: stainless steel, with painted steel outer covering. Double fan air mixing, processor control with timing, protection against overheating. Temperature range: +70 - +250 °C Temperature accuracy: ±2.0 °C. Supplied with 2 shelves, 7 shelf spaces. Power: 3,100 W Power supply: 400 V, 3 phases. Internal dimensions: 500 x 460 x 850 mm. External dimensions: 655 x 680 x 1,140 mm. Weight: 90 kg"

"with interior space. Interior: stainless steel, with painted steel outer covering. Double fan air mixing, processor control with timing, protection against overheating. Temperature range: +70 - +250 °C Temperature accuracy: ±2.0 °C. Supplied with 2 shelves, 7 shelf spaces. Power: 3,100 W Power supply: 400 V, 3 phases. Internal dimensions: 500 x 460 x 850 mm. External dimensions: 655 x 680 x 1,140 mm. Weight: 90 kg"

35.KD400
375 l
KD400
4000 W
50 x 56 x 135 cm
65 x 78 x 164 cm
2 / 10 pc
Request a price
pc

"with interior space. Fan air mixing, microprocessor control, protection against overheating. Internal size: 500x575x1350 (WxDxH) External dimensions: 690x790x1620. Temperature range: +70 - +250 °C. Interior: stainless steel, with painted steel outer covering. Temperature accuracy: ±2.0 °C. Supplied with 2 shelves. Power supply: 400 V, 50-60 Hz, 3 phases + N + G Power: 4,100 W. Net/packaged weight: 140/160 kg."

"with interior space. Fan air mixing, microprocessor control, protection against overheating. Internal size: 500x575x1350 (WxDxH) External dimensions: 690x790x1620. Temperature range: +70 - +250 °C. Interior: stainless steel, with painted steel outer covering. Temperature accuracy: ±2.0 °C. Supplied with 2 shelves. Power supply: 400 V, 50-60 Hz, 3 phases + N + G Power: 4,100 W. Net/packaged weight: 140/160 kg."
