Ohaus heating magnetic stirrers (Guardian 2000, 3000, 5000, 7000)
Ohaus
Request a price

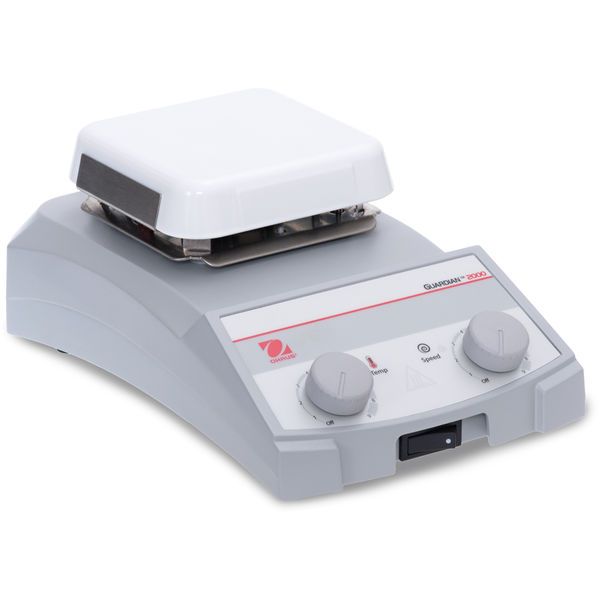

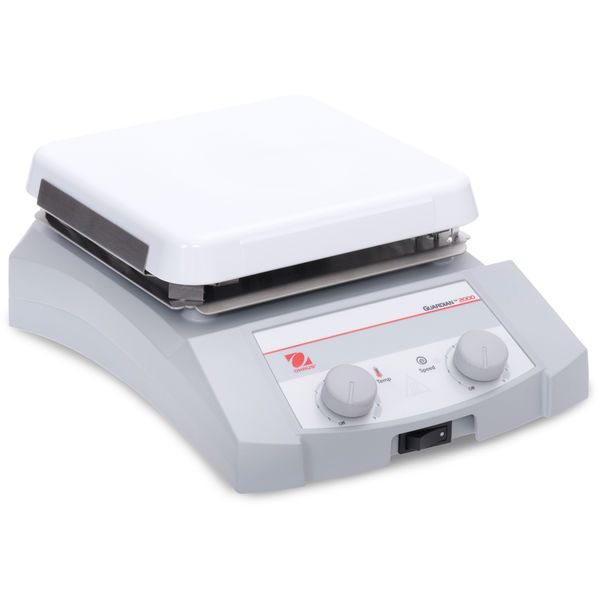

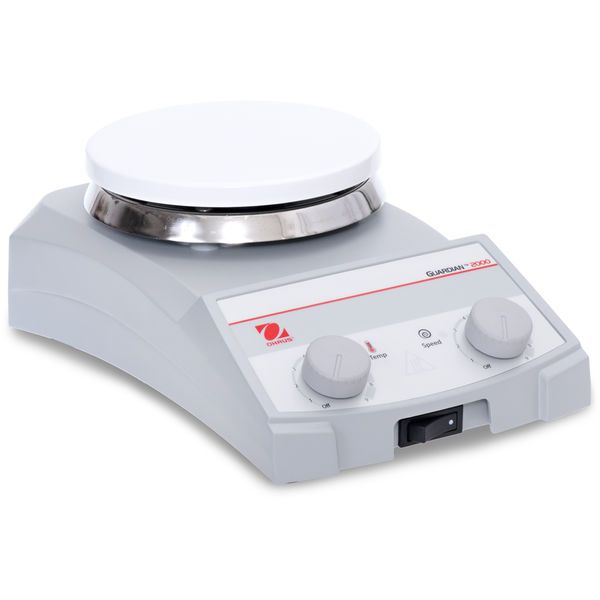

Guardian 2000
Analog heating magnetic stirrers for everyday, general-purpose applications which requiring fast heating and reliable mixing up to 15 liters. In three sizes, with simple button controls to adjust heating and stirring. With solid metal housing and ceramic or ceramic coated plate. An indicator light warns of a heating plate above 40 °C.

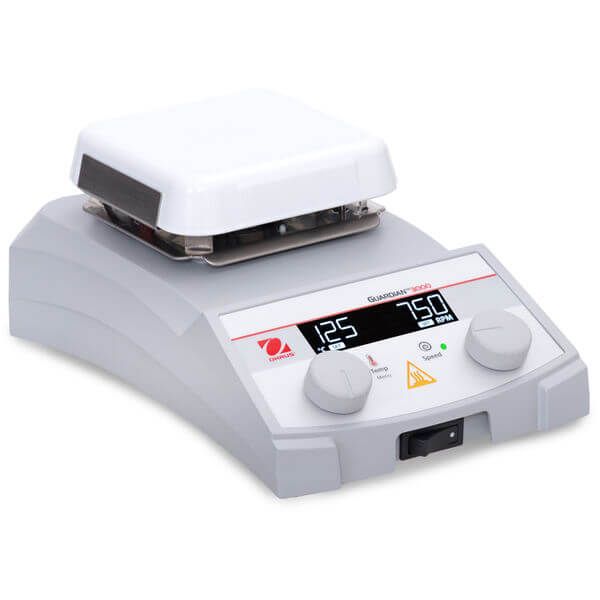

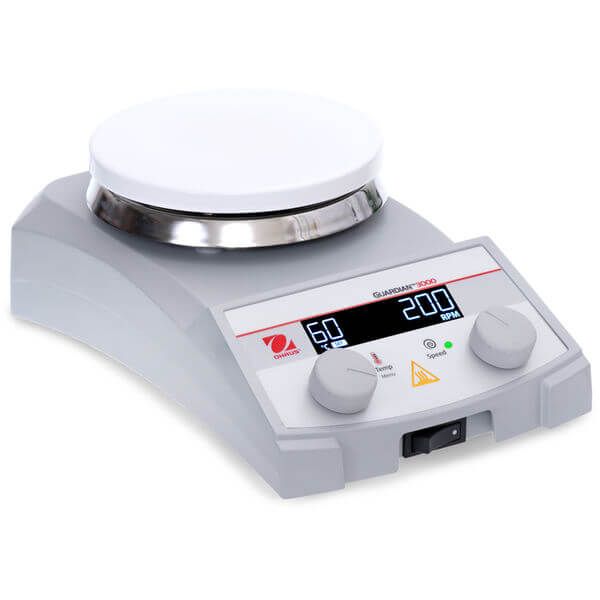

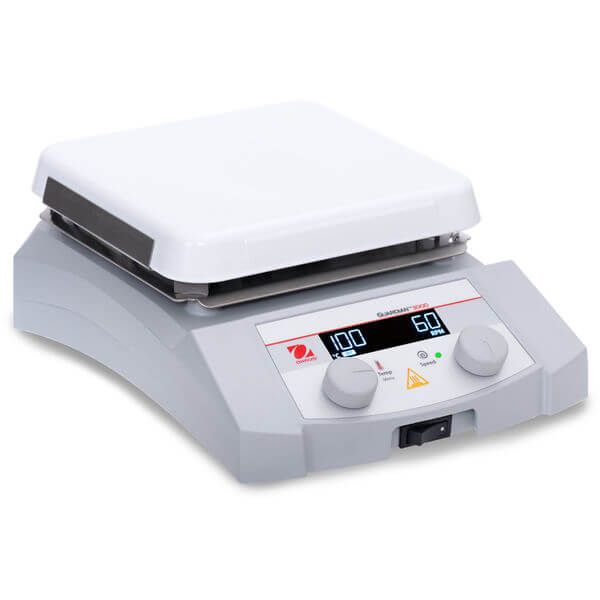

Guardian 3000
Digital heating magnetic stirrers designed for vigorous stirring and rapid heating. The set temperature and speed can be easily read from the LCD display, which can be controlled with the buttons. An indicator light draws attention to the heating plate above 40 °C. Available in three sizes with ceramic or ceramic coated plate and metal housing. With overheating protection.

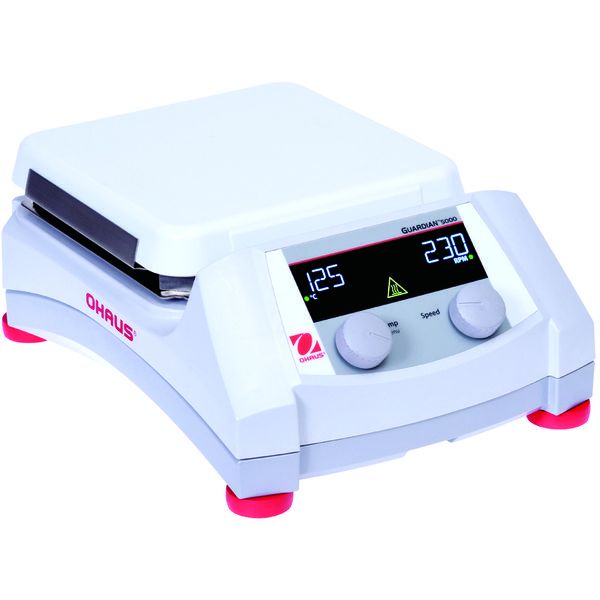

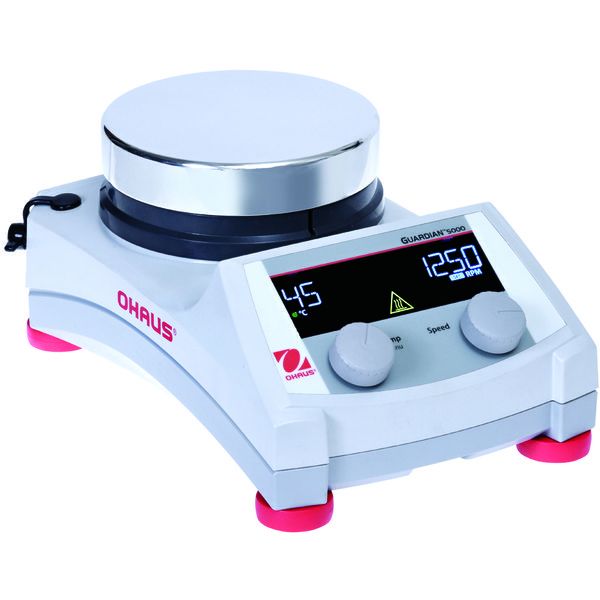

Guardian 5000
Reliable digital heated magnetic stirrers with outstanding safety features for research, scientific and industrial applications. In five designs, with three plate sizes. With two independent safety controls to prevent overheating. The temperature and speed settings, intuitive icons and the hot plate warning signal can also be easily read from the high-brightness LCD display.

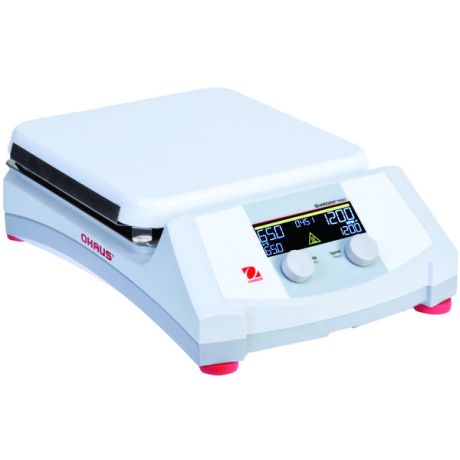

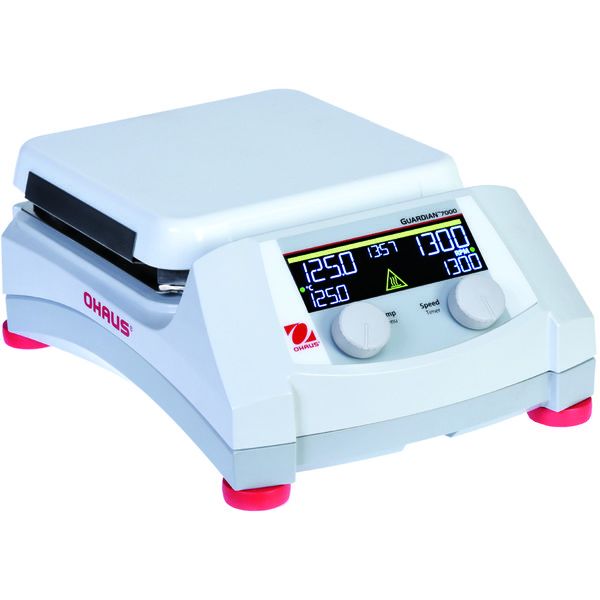

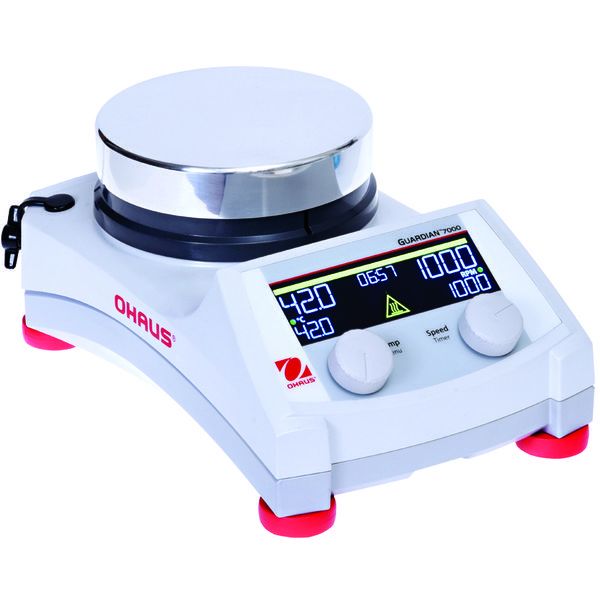

Guardian 7000
Durable digital heating magnetic stirrers with excellent safety features with heating and stirring performance. SmartHousing™ features a chemical-resistant, easy-to-clean design that directs spills away from the device's internal components. Intuitive icons, temperature, speed and timer are easy to read on the bright LCD display. The parameters can be set using the rotary buttons. SmartPresence™ and SmartLink™ technologies automatically turn off the heating after a user-defined timeout period. SafetyHeat™ uses two independent safety controls to monitor the electronics and shut down the heating, preventing the device from overheating.
Specifications:
| Specifications: | e-G21HS04C | e-G21HS07C | e-G21HSRDS | e-G31HS04C | e-G31HS07C | e-G31HSRDS |
|---|---|---|---|---|---|---|
| Series: | Guardian 2000 | Guardian 2000 | Guardian 2000 | Guardian 3000 | Guardian 3000 | Guardian 3000 |
| Control: | analog | analog | analog | digital | digital | digital |
| Stirring volume: | 15 l | 15 l | 15 l | 15 l | 15 l | 15 l |
| Plate material: | ceramic | ceramic | stainless steel with ceramic coat | ceramic | ceramic | stainless steel with ceramic coat |
| Plate size: | 102 x 102 mm | 178 x 178 mm | ⌀135 mm | 102 x 102 mm | 178 x 178 mm | ⌀ 135 mm |
| Stirring speed: | 200 - 1600 rpm | 200 - 1.600 rpm | 200 - 1.600 rpm | 80 - 1.600 rpm | 80 - 1.600 rpm | 80 - 1.600 rpm |
| Temperature range: | 70 °C - 500 °C | 70 °C - 500 °C | 50 °C - 380 °C | ambient +5 °C - 500 °C | ambient +5 °C - 500 °C | ambient +5 °C - 380°C |
| Power consumption: | 535 W | 1.035 W | 535 W | 550 W | 1.050 W | 550 W |
| Dimensions: | 264 mm x 110 mm x 163 mm | 318 mm x 112 mm x 223 mm | 264 mm x 101 mm x 163 mm | 264 mm x 110 mm x 163 mm | 318 mm x 112 mm x 223 mm | 264 mm x 101 mm x 163 mm |
| Weight: | 2,5 kg | 3,9 kg | 2,5 kg | 2,5 kg | 3,9 kg | 2,5 kg |
| Specifications: | e-G51HS07C | e-G51HS10C | e-G51HSRDM | e-G71HS07C | e-G71HS10C | e-G71HSRDM |
|---|---|---|---|---|---|---|
| Series: | Guardian 5000 | Guardian 5000 | Guardian 5000 | Guardian 7000 | Guardian 7000 | Guardian 7000 |
| Control: | digital | digital | digital | digital | digital | digital |
| Stirring volume: | 15 l | 18 l | 20 l | 15 l | 18 l | 20 l |
| Plate material: | ceramic | ceramic | aluminium | ceramic | ceramic | aluminium |
| Plate size: | 178 x 178 mm | 254 x 254 mm | ⌀ 135 mm | 178 x 178 mm | 254 x 254 mm | ⌀ 135 mm |
| Stirring speed: | 60 - 1.600 rpm | 60 - 1.600 rpm | 60 - 1.600 rpm | 60 - 1.600 rpm | 60 - 1.600 rpm | 60 - 1.600 ford./perc |
| Temperature range: | ambient +5 °C - 500 °C | ambient +5 °C - 500 °C | ambient +5 °C - 380 °C | ambient +5 °C - 500 °C | ambient +5 °C - 500 °C | ambient +5 °C - 380 °C |
| Power consumption: | 1.242 W | 1.449 W | 952 W | 1.242 W | 1.449 W | 952 W |
| Dimensions: | 309 mm x 122 mm x 223 mm | 415 mm x 122 mm x 286 mm | 267 mm x 126 mm x 173 mm | 309 mm x 122 mm x 223 mm | 415 mm x 123 mm x 286 mm | 267 mm x 126 mm x 173 mm |
| Weight: | 2,6 kg | 5,2 kg | 2,6 kg | 2,6 kg | 5,2 kg | 2,6 kg |
