RETSCH AS 200 TAP laboratory sieve shaker

Laboreszköz katalógus Marketplace 0Cart

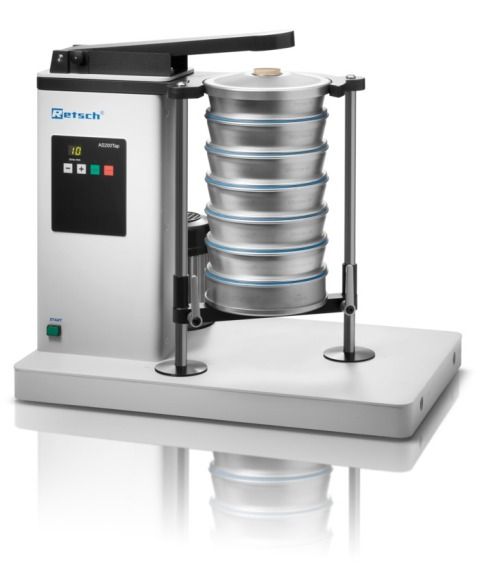

RETSCH AS 200 TAP sive shaker

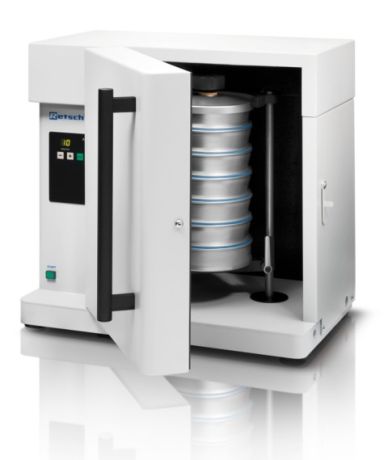

RETSCH AS 200 TAP sive shaker with sound-enclosure cabinet

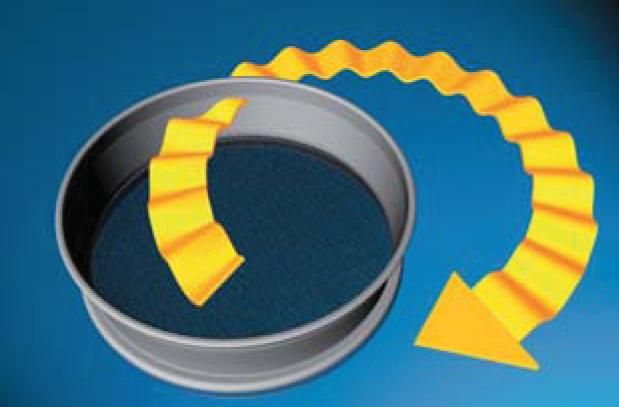

Circular sieve movement of the RETSCH AS 200 TAP

RETSCH AS 200 TAP laboratory sieve shaker

Retsch

Request a price

RETSCH's new special sieving device is used to simulate manual sieving. The AS 200 TAP type device achieves this by moving the sieves in a circular motion and simultaneously tapping them from above. This type of special sieving method is used for some materials, such as activated carbon, spices, tobacco, metal powders, abrasive materials, cement, or even its standardized application in the classification of diamonds. The device is not suitable for wet sieving.

Sieves with a diameter of 200 mm or 203 mm (8") can be inserted into the sieving device.

A soundproof housing can also be ordered for the equipment if required. The device must be installed on a strong metal frame (with a thick worktop).

Specifications:	AS 200 TAP
Measuring range:	20 μm – 25 mm
Max feed capacity:	3 kg
Használható sziták:	Ø 200 / 203 mm (8”)
Usable sieves:	6 / 12 (depends on the sieve)
Max height of sieve stack:	350 mm
Speed:	280 min-1
Number of taps:	150 min-1
Timer:	1 – 99 min
Dimensions without sound-encolsure cabinet:	700 x 650 x 450 mm
Dimensions with soun-enclosure cabinet:	735 x 675 x 530 mm
Weight without sound-enclosure cabinet:	68 kg
Weight with sound-enclosure cabinet:	92 kg

More details


code

Name

net price

amount

in stock

Retsch AS 200 TAP sieve, circular movement of the sieves and simultaneous tapping from above.

27.300250001

RETSCH AS 200 TAP sieve shaker without sound-enclosure cabinet

Request a price

"Sieves with a diameter of 200 mm or 8"" can be inserted into the sieve. Up to 6 sieves of 50 mm height (or 12 sieves of 25 mm height) can fit into the machine. This type of special sieving of some substances, such as active carbon, spices , metal powders, abrasive materials, cement, or even diamonds are introduced as a standard method for classifying. The device works at a fixed speed (280 rpm) and with an impact rate (150/min). It can be ordered with a soundproof housing (option) as needed. The sieves and the bottom collection container must be ordered separately! The machine must be operated on a solid stand! Dimensions: 70x65x45 cm Weight: 68 kg."

Retsch AS 200 TAP siever supplied with soundproof housing.

27.300251001

RETSCH AS 200 TAP sieve shaker with sound-enclosure cabinet

Request a price

"Method of sieving: circular movement of the sieves and simultaneous tapping from above. Sieves with a diameter of 200 mm or 8"" can be inserted into the sieve. Up to 6 sieves of 50 mm height (or 12 sieves of 25 mm height) can fit into the machine. This type of special sieving is suitable for some materials, such as activated carbon , spices, metal powders, abrasive materials, cement, or even diamonds are introduced as a standard method for classification. The sieves and collection container must be ordered separately! Dimensions: 72x76x52 cm, Weight: 95 kg."
