RETSCH AS 300 control, AS 400 control and AS 450 sieve machines

Retsch

Request a price

The sieving machines are suitable for dry and wet sieving* of larger powders and dense materials. Each device meets the highest technical requirements. The parameters can be set digitally, the sieving process can be evaluated via the RS 232 connector, and it can be documented according to the GLP standard. With the EasySieve software, all parameters (sieve sequence configuration, sample weight, sieve machine settings, etc.) can be recorded, and the characteristics of the operation can be plotted on a graph. Routine programs can be saved, edited and recalled at any time. Sieve machines can store 9 programs (even without a PC).

More details

Characteristics of different types of sifting machines:

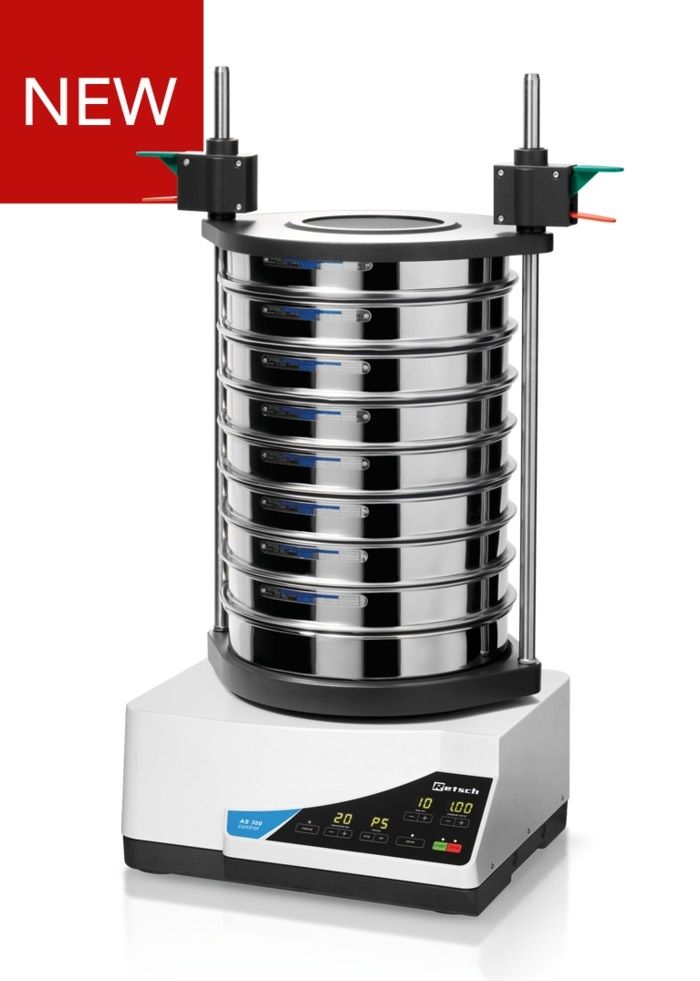

AS 300 control: the sieving device performs the shaking - similarly to the AS 200 types - in three dimensions, in continuous or intermittent mode. It has automatic amplitude control.

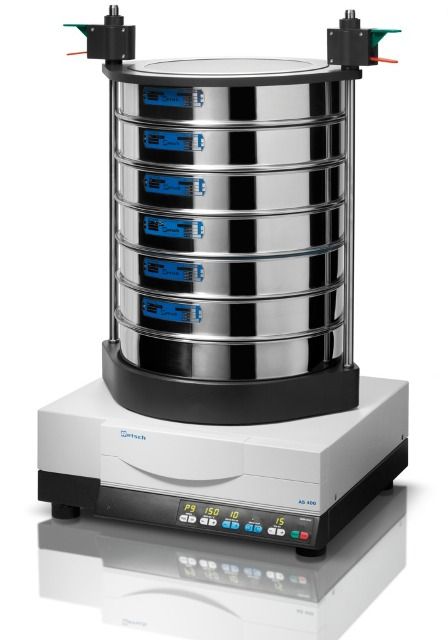

AS 400 control: the device shakes horizontally in a circular motion. *Not suitable for wet sifting.

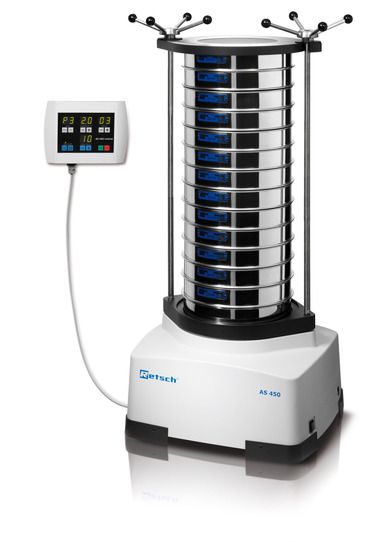

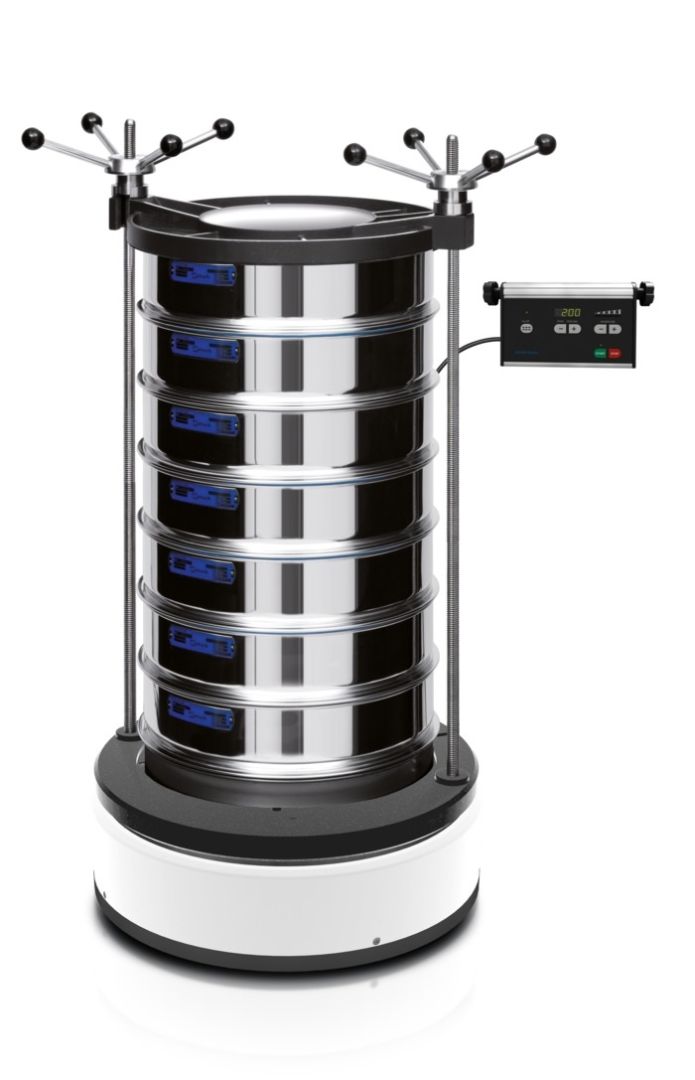

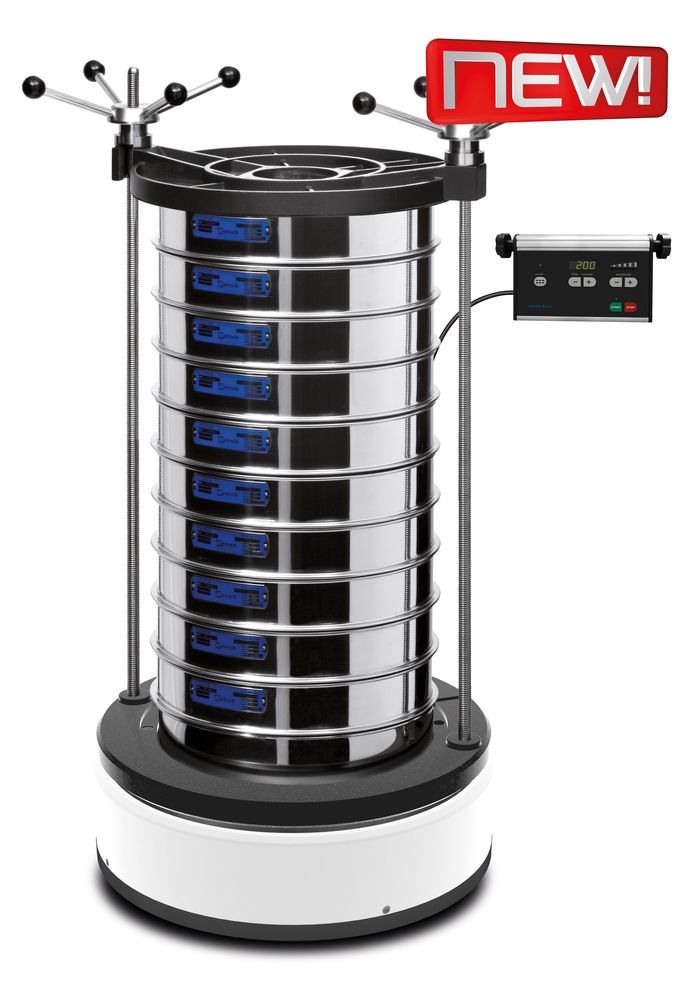

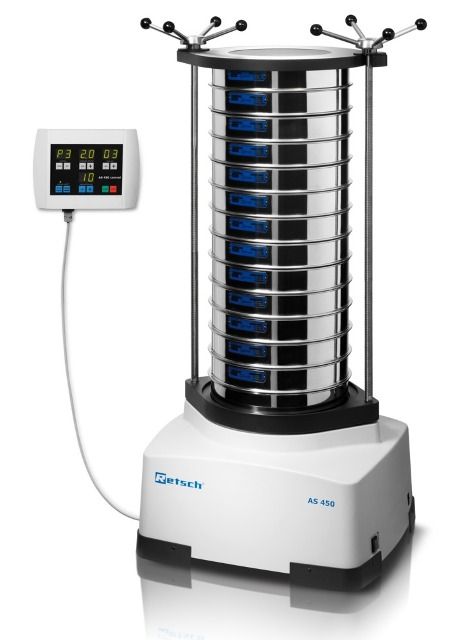

AS 450: high-load shaking machine for three-dimensional shaking of RETSCH's largest sieves (400 and 450 mm). The parameters are set on an external control unit.

You can choose from almost the entire selection of RETSCH sieves for the large sieving machines. Sieves and collection containers and lids must be ordered separately. The sieves can be ordered separately in individual sizes, or in standard sizes, in a series of sieves. The machines are available with several clamping units.

Specifications:	AS 300 control	AS 400 control	AS 450 basic	AS 450 control
Measuring range:	20 μm - 40 mm	45 μm - 63 mm	20 μm - 125 mm	20 μm - 125 mm
Max feed capacity:	6 kg	5 kg	15 kg	25 kg
Usable sieves:	Ø 100 / 150 / 200 /203 (8”) / 305 (12”) /315 mm	Ø 100 / 150 / 200 /203 (8”) / 305 (12”) / 315 / 400 mm	Ø 400 / 450 mm	Ø 400 / 450 mm
Max number of sieves:	9 / 17 (depends on the sieve)	7 / 9 / 17 (depends on the sieve)	12 / 8	13 / 9 (depends on the sieve)
Max height of sieve stack:	510 mm	510 mm	830 mm	963 mm
Amplitude:	0,2 - 2,2 mm	50 - 300 min-1	0 - 2 mm	0,2 - 2,2 mm
Timer:	1 - 99 minute	1 - 99 minute	1 - 99 minute	1 - 99 minute
Storable programes:	99	9	1	9
Shake function:	continuous / intermittent*	continuous / intermitten*	continuous / intermitten*	continuous / intermitten*
*Interval:	10 - 99 sec	1 - 10 minute	10 - 99 sec	10 - 99 sec
Dimensions:	417 x 220 x 384 mm	540 x 260 x 507 mm	680 x 280 x 680 mm	714 x 435 x 629 mm
Weight:	42 kg	70 kg	140 kg	200 kg


code

Name

net price

amount

in stock

27.300210001

RETSCH AS 300 control sieve machine

Request a price

Digital timer (1-99 min), interval sieving (10 - 99 sec). Amplitude: 0,2 - 2,2 mm, digital. 9 program. For dry and wet sieving. Measuring range: 20 µm - 40 mm Feed capaxity: 6 kg. Suitable sieve diameters: 100 mm / 150 mm / 200 mm / 203 mm (8") / 305 mm / 315 mm Max. height of sieve stack: 450 mm (sieves and sieve holders have to be ordered seperately) Interface: RS232 W x H x D : 400 x 235 x 400 mm Weight: 35 kg Electrical supply: 100-240 V, 50/60 Hz

Retsch AS 400 CONTROL sieve. 2-dimensional movement, digitally adjustable time

27.300220001

RETSCH AS 400 control sieve machine

Request a price

"and amplitude, RS232 output. Documentation according to the GLP standard. The fixing unit, sieves and bottom collection container must be ordered separately. Optional PC software available. Continuous/intermittent mode. Speed: can be set between 50 - 300 rpm. Digitally adjustable shaking time (1-99 minutes), pause (interval sieving) can be set. Digitally adjustable amplitude (0.2-3.0 mm) 9 sieving programs can be stored. The sieve can be delivered with several clamping units. NOT suitable for wet sieving! Measuring range: 45 µm - 63 mm Sieve column height: max. 450 mm. Max sample weight: 5 kg. Usable sieves: up to 100-400 mm diameter. Dimensions: 540 x 260 x 507 mm Weight: approx. 70 kg"

Retsch AS450 CONTROL sieving device. 3-dimensional movement, digitally adjustable time and

27.300260001

RETSCH AS 450 control sieve machine

Request a price

"time and amplitude, RS232 output. Documentation according to the GLP standard. Supplied with external (wall mounted) control unit. Optional PC software available. Continuous/intermittent mode. Digitally adjustable shaking time (1-99 minutes), interval sieving can be set between 10 - 99 sec. Digitally adjustable amplitude (0.2-2.2 mm) 9 sieving programs can be stored. The sieve can be delivered with several clamping units. With appropriate, optional accessories, the device can also be made suitable for wet sieving. Measuring range: 25 µm - 125 mm Max sample weight: 25 kg. Usable sieves: 400 mm / 450 mm Sieve series height: 940 mm External dimensions: 714 x 435 x 629 mm Weight: 220 kg"

Retsch AS450 BASIC sieve. 3-dimensional movement, digitally adjustable time and

27.300290001

RETSCH AS 450 basic sieve machine

Request a price

"The AS 450 basic model is a cost-saving alternative to the AS 450 control sieve. Its measurement range is between 25 ?m - 125 mm, it can separate up to 15 kg of samples. sieving time (0 - 99 min) and amplitude (0 - > 2 mm) can be set digitally, a sieving method can be stored. The sieve can be delivered with several clamping units. With appropriate, optional accessories, the device can also be made suitable for wet sieving. Main field of application: construction materials industry, geology / metallurgy, mechanical engineering / electronics, environmental protection / recycling, glass / ceramic production, chemical industry / plastics industry. Measuring range: 25 µm - 125 mm Max sample weight: 15 kg. Usable sieves: 400 mm / 450 mm Fractions max. number 12 / 8, depending on sieve height and clamp. Sieve series max. height: 940 mm External dimensions: 714 x 435 x 629 mm Weight: 220 kg Mains connection: 1-phase It has a CE certificate"
