RETSCH laboratory sieve shakers (AS 200 series)

Laboreszköz katalógus Marketplace 0Cart

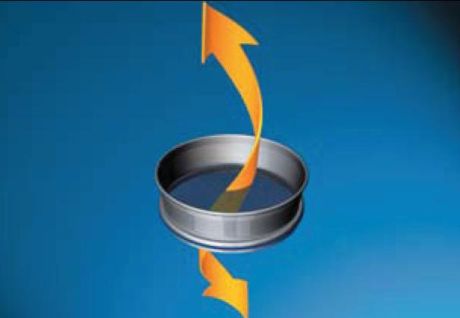

The principle of three-dimensional sieving

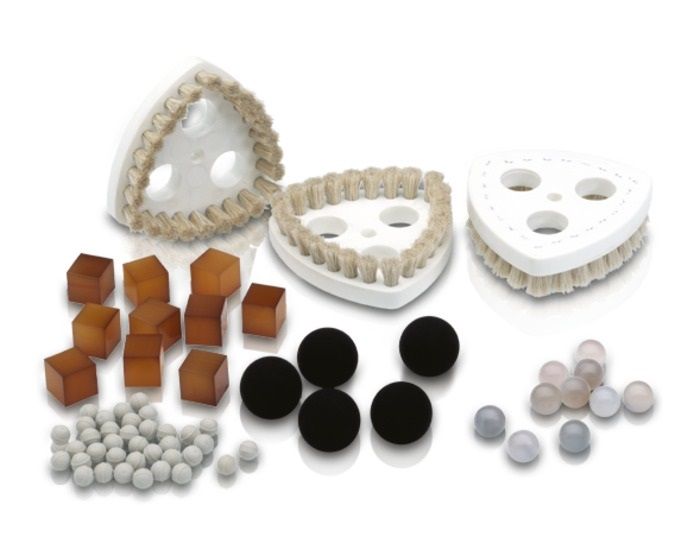

Accessories for the sieving

RETSCH laboratory sieve shakers (AS 200 series)

Retsch

Request a price

The RETSCH AS 200 sieving devices are precise and reliable tools for testing the particle size distribution in quality assurance and research and development areas. They are suitable for separating powders, granular and bulk materials, suspensions according to particle size, with a high degree of reproducibility.

The devices perform the shaking – in a unique way in the world – in three dimensions: they produce a circular movement in the horizontal direction and a shaking movement in the vertical direction at the same time. The use of this special shaking technique offers the following advantages: large shaking mass, particularly quiet operation, short shaking times and accurate results. The amplitude of the shaking and the operating time can be adjusted. In addition to the standard 200 mm diameter sieve, other sizes (100 mm, 150 mm and 203 mm) can also be installed on the machines.

More details

The devices are available in three versions:

AS 200 basic: the simpler member of the sieve family. The shaking time and amplitude are displayed on a digital display, the amplitude is not controlled. The device cannot be calibrated.

AS 200 digit cA: the next member of the sitar family. The shaking time and amplitude are shown on a digital display, the sieving can be interrupted (interval sieving) and the amplitude is controlled. The device cannot be calibrated.

AS 200 control: microprocessor-controlled device providing constant and calibratable amplitude. This type uniquely controls the acceleration automatically (between 1-17 g) when the shaking amplitude is set to more than 2 mm. All parameters can be adjusted digitally, the process can be evaluated via the USB connector, and it can be documented according to the GLP standard. The equipment meets the requirements of ISO 9000. With the optional EasySieve PC software, all work parameters (sieve series, configuration, sample weight, sieve machine settings, etc.) can be saved, and - in addition to the grain distribution - the characteristics of the operation can also be displayed graphically. The device can be calibrated and arrives calibrated!

The devices are suitable for both wet and dry sieving. The clamping unit, collection container and sieve line must be ordered separately. The sieves can be ordered separately in the required size, or in standard sizes, in a series of sieves (see options). The machines are available with several clamping units (Economy, Standard, Comfort) and for wet sieving.

Specifications:	AS 200 basic	AS 200 digit cA	AS 200 control
Measuring range:	20 μm – 25 mm	20 μm – 25 mm	20 μm – 25 mm
Max feed capacity:	3 kg	3 kg	3 kg
Dry / wet sieving:	yes	yes	yes
Usable sieves:	Ø100 mm, Ø150 mm, Ø200 mm, Ø203 mm (8”)	Ø100 mm, Ø150 mm, Ø200 mm, Ø203 mm (8”)	Ø100 mm, Ø150 mm, Ø200 mm, Ø203 mm (8”)
Max height of sieve stack:	510 mm	510 mm	620 mm
Amplitude:	0 - 3 mm	0,2 - 3,0 mm	0,2 – 3 mm
Max number of sieves:	9 / 17	9 / 17	11/ 23
Working time:	1 – 99 min	1 – 99 min	1 – 99 min
Shake function:	continuous	continuous / intermittent	continuous / intermittent*
*Interval:	-	1 -10 sec	1 – 99 sec
Calibration available:	no	no	yes
PC software can be ordered:	no	no	yes
External dimensions:	417 x 212 x 384 mm	417 x 212 x 384 mm	417 x 212 x 384 mm
Weight:	35 kg	35 kg	35 kg


code

Name

net price

amount

in stock

Retsch AS 200 BASIC sieve NEW type, 3-dimensional movement, digital display

27.300300001

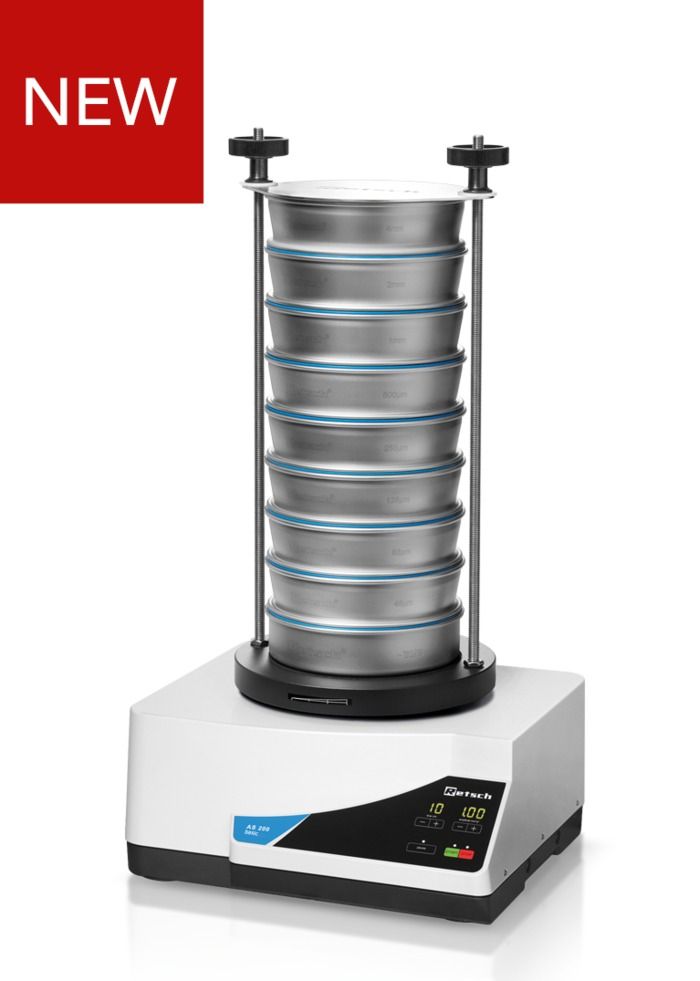

RETSCH AS 200 basic sieve shaker

Request a price

"performance and time. The sieve can be delivered with several clamping units. With appropriate, optional accessories, the device can also be made suitable for wet sieving. The clamping unit, sieves, collection containers and lids must be ordered separately! Usable sieves: ?100 mm - up to 205 mm. Amplitude: digital, 1 - 100% (0 - 3 mm) Time display: digital, 1 - 99 min Suitable for dry sieving: yes Suitable for wet sieving: can be made suitable"

Retsch AS 200 DIGIT cA sieve. 3-dimensional movement, digitally adjustable amplitude

27.300310001

RETSCH AS 200 digit cA sieve shaker

Request a price

"and time. The basic model AS 200 digit cA is recommended for controlled amplitude, vibration deflection and digital display of time or. batch mode is required. NEW: controlled amplitude (cA) dry and wet drizzle excellent separation even during a short drizzle efficient electromagnetic drive 3D throwing movement, which optimally utilizes the free surfaces of the sieve and moves the sample evenly over the entire sieve surface does not require maintenance sieve tower up to 510 mm high freely adjustable sieving parameters (time, amplitude) intermittent mode (fixed 10 s) vibration deflection (2xAmp) and digital display of time easy operation, ergonomic design Idle amplitude: adjustable between 0.2 - 3.0 mm Operating time: can be set between 1 - 99 minutes Number of 50 mm high sieves that can be inserted: 8 pieces Voltage: 230-240 V The sieve can be delivered with several clamping units. With appropriate, optional accessories, the device can also be made suitable for wet sieving. The clamping unit, sieves, collection containers and lids must be ordered separately!"

Retsch AS 200 CONTROL sieve, device. 3-dimensional movement, digitally adjustable time and

27.300320001

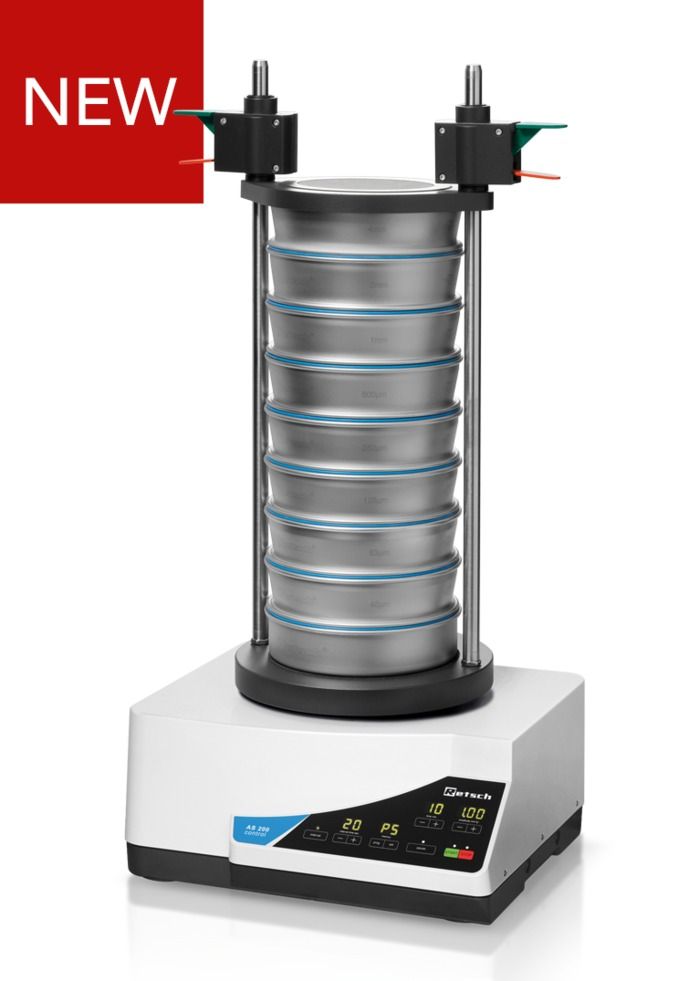

RETSCH AS 200 control sieve shaker

Request a price

"amplitude, RS232 output. Documentation according to the GLP standard. Optional PC software available. Continuous/intermittent mode. Digitally adjustable shaking time (1-99 minutes), pause (interval sieving) can be set between 10 - 99 sec. Digitally adjustable amplitude (0.2-3.0 mm) 99 sieving programs can be stored. The sieve shaker can be delivered with the COMFORT clamping unit, which can shake up to 10 sieves. With appropriate, optional accessories, the device can also be made suitable for wet sieving. Measuring range: 20 µm - 25 mm Max. sample weight: 3.0 kg Dimensions: 400x350x230 mm (WxDxH) Weight: approx. 30 kg. Supply voltage: 230-240 V/50Hz The clamping unit, sieves, collection containers and lids must be ordered separately!"
