RETSCH ultrasonic sieve washing devices

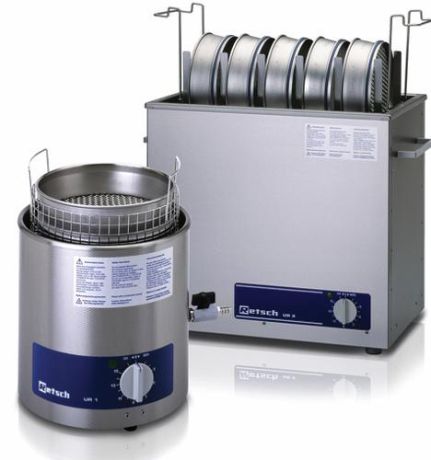

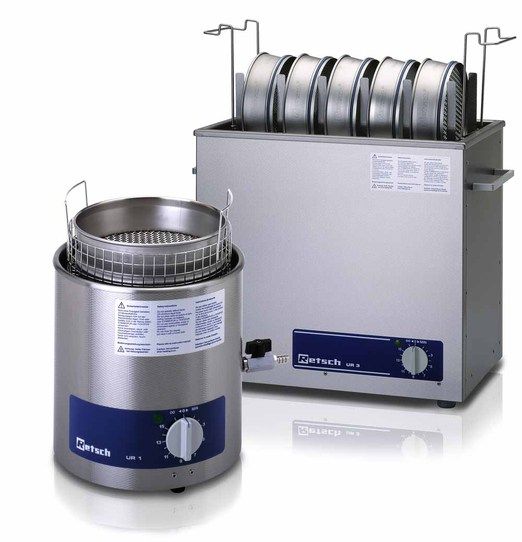

RETSCH ultrasonic sieve washers, UR series

Retsch

Request a price

Sieve cleaning after shaking is facilitated by special ultrasonic baths. Using the bath, even the smallest pore size sieve can be gently cleaned in minutes.

The high-frequency generator is approx. It produces a 35 kHz vibration, which is transmitted to the cleaning liquid. The energy density of the ultrasound field is so high that countless extremely small vacuum bubbles develop in the liquid, which collapse in microseconds and take the sample particles in the sieve with them.

Specifications:	UR1	UR2	UR3
Volume:	5,7 liters	42 liters	45 liters
Washable sieve size:	Ø 200 × 50 mm	Ø 450 × 100 mm	Ø 200 × 50 mm
Number of wasable sieves:	2 pc	1 pc	5 pc
Timer:	0 - 15 minute	0 - 15 minute	0 - 15 minute
Power consumption:	2 × 240 Watt	2 × 600 Watt	2 × 1000 Watt
Tank size:	Ø 245 × 130 mm	Ø 520 × 200 mm	500 × 300 × 300 mm
External dimensions:	Ø 260 × 260 mm	Ø 570 × 460 mm	630 × 530 × 350 mm
Weight:	5 kg	21 kg	27,5 kg


code

Name

net price

amount

in stock

UR1 ultrasonic bath circular type. Analytical sieves with a maximum diameter of 200 mm are suitable

27.707910001

RETSCH UR1 ultrasonic sieve washer for Ø 200 mm sieves

Request a price

"for cleaning (laying down). Capacity: 1 x 200 x 50 mm sieve. Bath volume: 5.7 liters. Power: 2 x 240 W Internal dimensions: diameter. 245 (diameter) x 130 mm. Weight: 5 kg."

UR2 ultrasonic bath is a circular type, 400 mm in diameter

27.707910003

RETSCH UR2 ultrasonic sieve washer for Ø 400 mm sieves

Request a price

"for cleaning analytical sieves (laid). Capacity: 3 sieves ? 400 x 65 (H) mm. or 1 sieve 450 x 100 mm Bath volume: 42 liters. Power: 2 x 600 W Internal dimensions of the tub: ? 520 x 200 (H) mm. Weight: 21 kg. The picture shows the device from the front."
