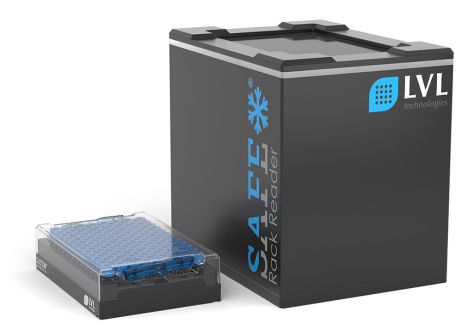

SAFE® code reader for racks and tubes

LVL Technologies

Request a price

Code reader for scanning entire racks. Thanks to the rack sensor built into the device, scanning starts immediately as soon as the rack is placed on the reading surface. The reader automatically recognizes and positions the A1 position. The rack and tube type placed on the device are immediately recognized, no prior setting of the types is required.

It can read any SBS standard rack (SBS 24 / 48 / 96). Configurable LEDs indicate the status of the rack being read (e.g. red - missing tube). If necessary, it is also capable of reading the 2D code of a single tube.

The Cryoguard technology prevents the reading surface from freezing and condensation when using frozen or cold labware.

The software included with the device is available without license restrictions,so the device can be installed and connected to an unlimited number of computers. The scanned data is displayed immediately in the opened program. Data export is available in various formats: csv, pdf, xls and TCP/IP.

Compatible with most LIMS systems and easily integrated into automated and robotic systems.

More details

Specifications	SBS Reader
Data export format:	csv, pdf, xls, TCP/IP
Connection:	USB
Power:	5V USB csatlakozáson keresztül
Supported operating system:	Windows 10 / 11
Dimensions:	180 x 130 x 160 mm
Weight:	1,9 kg
Certifications:	CE, FCC, IP65


code

Name

net price

amount

in stock

SAFE SBS Rack Reader, tube and rack code reader

625.DMTRSBS

SBS rack and tube reader

Request a price

"For reading SBS 24, 48 and 96 racks and tubes with 2D codes. Thanks to the built-in rack sensor, the device starts reading immediately after the rack is placed. The sensor will recognize and position the A1 position accordingly. LEDs that can be configured according to individual needs indicate the current reading status of the rack (e.g. red in case of missing tube) The device works like a keyboard. The read data is displayed in the opened program at the same time as the reading. There is no need to set the type of racks or tubes, the device automatically recognizes the type placed for reading. Cryoguard protects the device from freezing and condensation caused by the use of frozen tools. Compatible with most LIMS systems. Easy to integrate into robotic and automated systems. The software included with the device can be connected to an unlimited number of computers, there are no license restrictions. Data export formats: CSV, JSON, PDF, XLS, XMS & TCP/IP Connect via USB cable. Dimensions: 180 x 130 x 160 mm Weight: 1.9 kg Certifications: CE & FCC & IP65"
