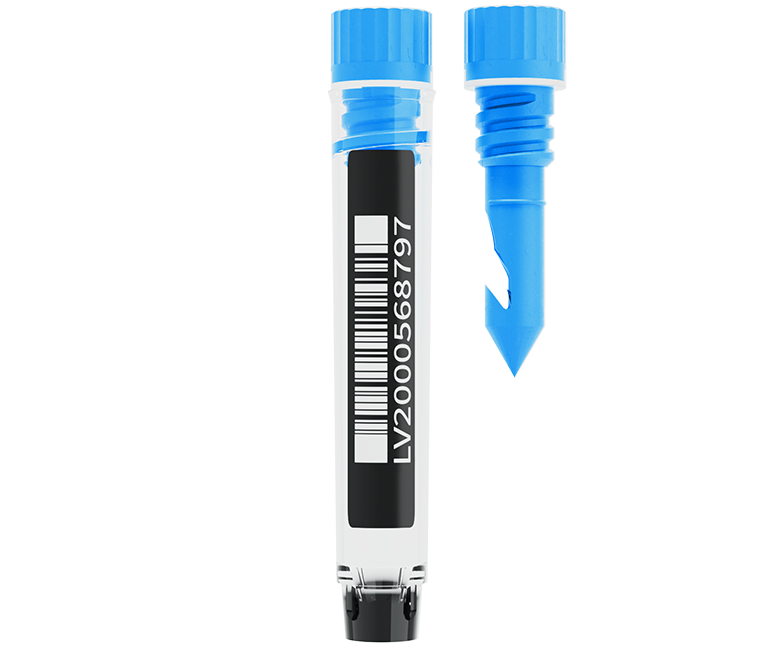

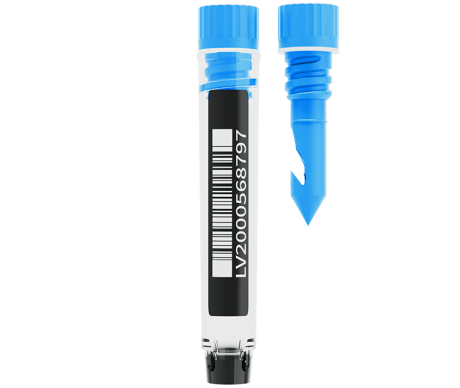

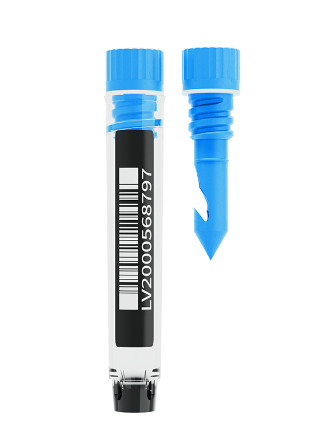

Tissue collection tube
Tissue collection tube
Hook cap
Hook cap

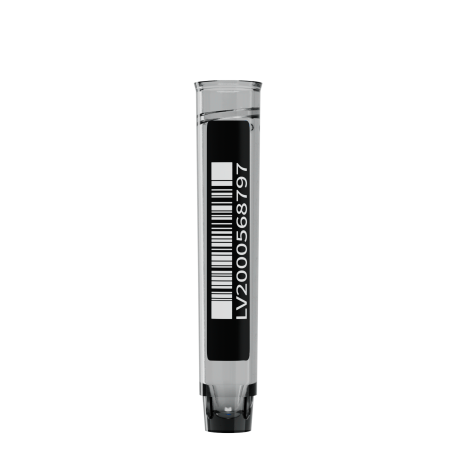

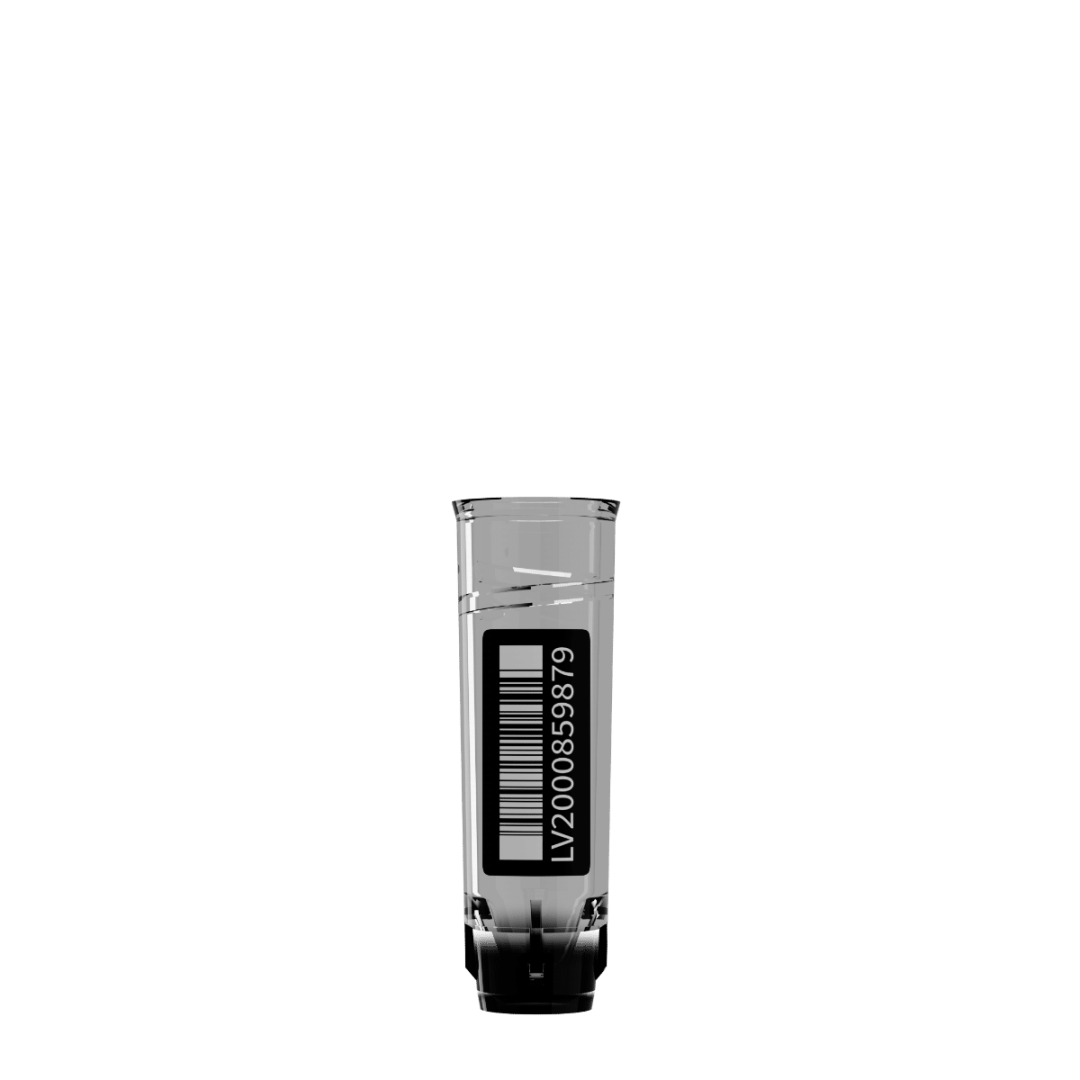

1 ml tube without cap
1 ml tube without cap

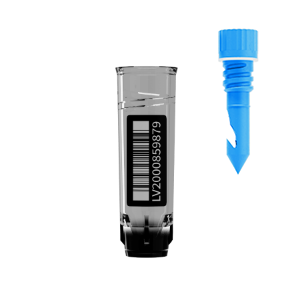

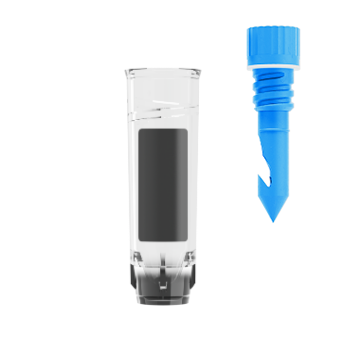

0,5 ml tube without cap
0,5 ml tube without cap

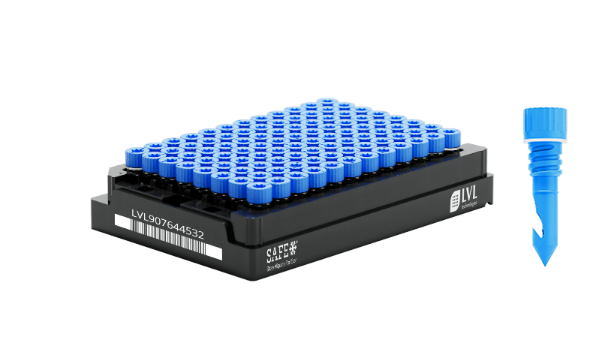

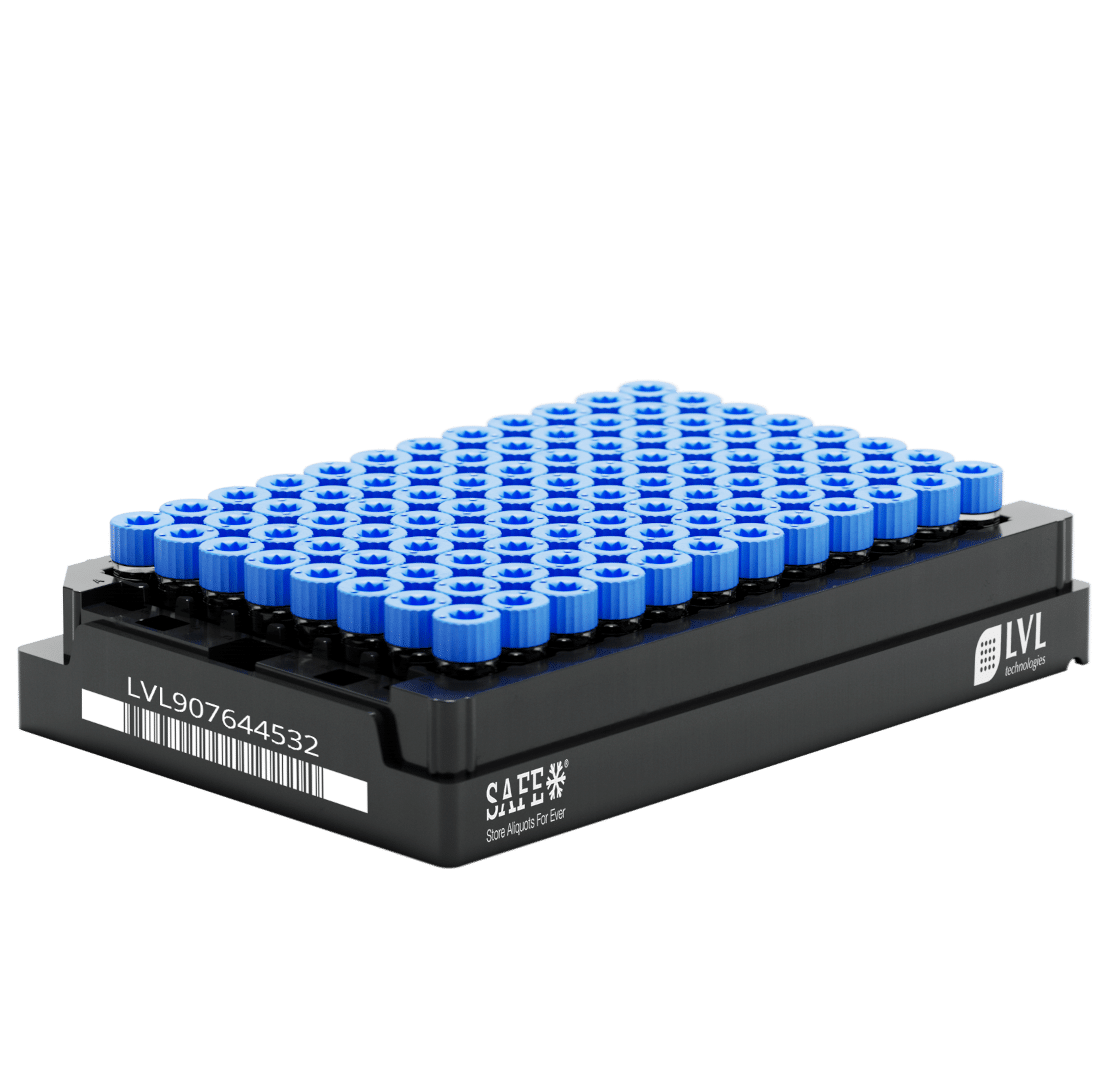

LI1000 TC in rack
LI1000 TC in rack

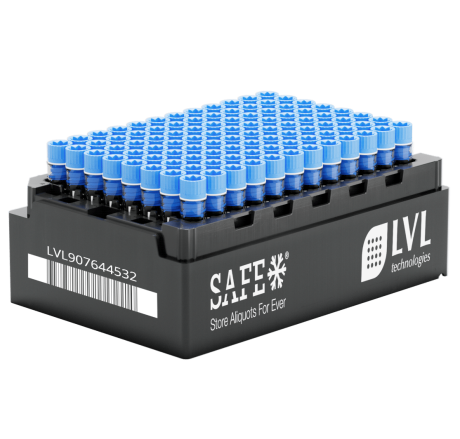

MI500 TC in rack
MI500 TC in rack
Tissue collection tube
Hook cap
1 ml tube without cap
0,5 ml tube without cap
LI1000 TC in rack
MI500 TC in rack

SAFE® tissue collection tool

LVL Technologies

Request a price


A tool for collecting and storing solid samples and extracted substances.

Specifically developed for the field of fisheries genetics in collaboration with European fisheries scientists and industry organizations. The development of this product represents a significant step forward in the collection and storage of fish tissue samples for genetic analysis. These tools are designed to comply with standardized collection and storage methods, guaranteeing high tissue sample quality and allowing for the possible subsequent automation of sample processing.

Based on LVL’s standard sample storage tubes, the tubes with internal thread are stored in a standard SBS 96 rack, with the sampling tool integrated into the cap. The pointed end of the tool and the backward-facing blade allow for the collection of approximately 30 mg of tissue sample under the skin of the sampled fish, avoiding surface contamination.

Thanks to their design and use of materials, they will keep your samples safe for decades if stored properly. The tubes are made of medical-grade polypropylene (USP VI) and have excellent chemical resistance, low leaching, binding and permeability properties.

They are also available in aseptic and sterile versions. The TPE seal in the screw caps prevents leakage of liquids and gases and is 100% compliant with IATA and CO2 tests.

More details

The 2D codes on the bottom of the tubes make it easy to identify and track the samples in the tubes. Each LVL tube is available with several coding combinations. In addition to the 1D (barcode) on the side of the tubes, there is also an HR (Human Readable) code, so they can be identified manually.

With 2D codes and coded SBS standard racks, they are suitable for use in automated systems and for manual handling.

Depending on individual needs, instead of the standard blue caps, you can choose from more than 16 cap colors. Please contact our staff for details.

Specifications

Specifications: MI500 TC LI1000 TC
Nominal volume: 500 µl 1 ml
Max. storage temperature with screw cap: -196 °C -196 °C
Max. storage temperature with push cap: -80 °C -80 °C
Outer diameter: 9 mm 9 mm
Tube height without cap: 27 mm 45.1 mm
Tube height with screw cap: 33.4 mm 51.3 mm
Tube height with push cap: 28.5 mm 46.6 mm
Compatible rack type: SBS 96 SBS 96
Rack dimensions (L x W): 127.76 x 85.48 mm 127.76 x 85.48 mm
Rack height with non capped tubes: 27.6 mm 45.6 mm
Rack height with screw capped tubes: 34.2 mm 52.3 mm
Rack height with lid: 38.6 mm 54.5 mm



code
Volume
Type
Code
Packaging
Order unit
net price
amount
in stock
625.1CI05TCCWBL
500 µl
sterile
2D
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CI05TCCWPL
500 µl
aseptic
2D
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CI05TCBUBL
500 µl
sterile
2D
bulk
4800 pc / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CI05TCBUPL
500 µl
aseptic
2D
bulk
4800 pc / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.3CI05TCBUBL
500 µl
sterile
2D & 1D, HR
bulk
4800 pc / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.3CI05TCBUPL
500 µl
aseptic
2D & 1D, HR
bulk
4800 pc / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.3CI05TCCWBL
500 µl
sterile
2D & 1D, HR
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.3CI05TCCWPL
500 µl
aseptic
2D & 1D, HR
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl U shaped bottom. Tube height with cap / without cap: 33,4 mm / 27,0 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CI10TCCWBL
1 ml
sterile
2D
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CI10TCCWPL
1 ml
aseptic
2D
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CI10TCBUBL
1 ml
sterile
2D
bulk
4800 pc / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CI10TCBUPL
1 ml
aseptic
2D
bulk
4800 pc / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.3CI10TCCWBL
1 ml
sterile
2D & 1D, HR
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.3CI10TCCWPL
1 ml
aseptic
2D & 1D, HR
standard rack
96 pc x 50 rack / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.3CI10TCBUBL
1 ml
sterile
2D & 1D, HR
bulk
4800 pc / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.3CI10TCBUPL
1 ml
aseptic
2D & 1D, HR
bulk
4800 pc / case
Request a price
case

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 1000 µl (1 ml) U shaped bottom. Tube height with cap / without cap: 51,3 mm / 45,1 mm External diameter: 9 mm Max. storage temperature: -196°C With 1D and numeric code on the side of the tube and 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."
