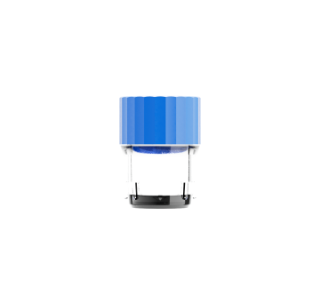

XLX500 tube with 2D & HR code (tube bottom)
XLX500 tube with 2D & HR code (tube bottom)
XLX500 tube without cap
XLX500 tube without cap

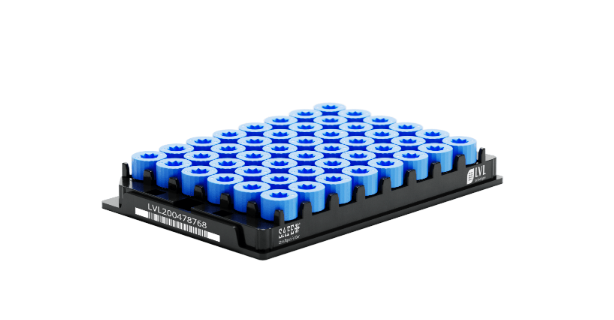

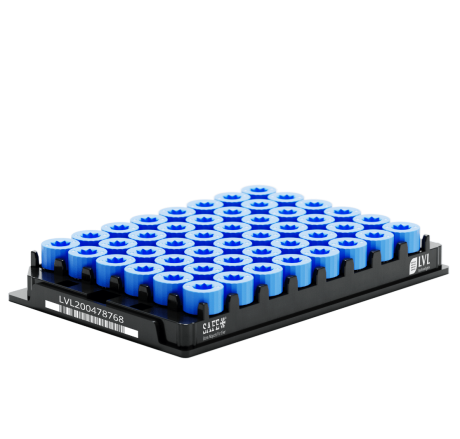

XLX500 tubes with screw cap in rack
XLX500 tubes with screw cap in rack

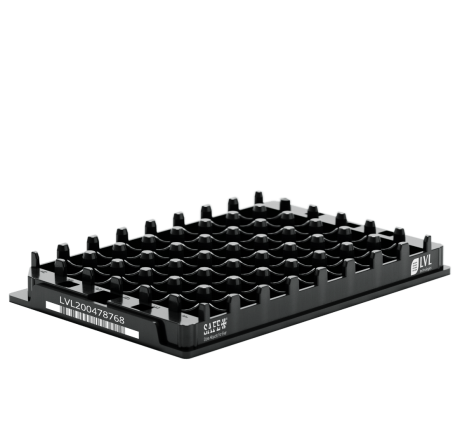

Empty rack for XLX500 tubes
Empty rack for XLX500 tubes
2D code on the bottom of the tubes (in SBS 96 racks)
2D code on the bottom of the tubes (in SBS 96 racks)
XLX500 tube with 2D & HR code (tube bottom)
XLX500 tube without cap
XLX500 tubes with screw cap in rack
Empty rack for XLX500 tubes
2D code on the bottom of the tubes (in SBS 96 racks)

SAFE® XLX500 flat bottom cryotubes, 500 micro l volume

LVL Technologies

Request a price


0.5 ml sample holders suitable down to -196°C. While the MX500 tubes with the same volume are suitable for liquid samples, the XLX500 type with its wider diameter and flat bottom is excellent for small and medium tissue samples.

Thanks to their design and use of materials, they will keep your samples safe for decades if stored properly. Thanks to the external thread, cross-contamination is much less likely. The tubes are made of medical-grade polypropylene (USP VI) and have excellent chemical resistance, low leaching, binding and permeability properties.

They are also available in aseptic and sterile versions. The TPE seal in the screw caps prevents leakage of liquids and gases and is 100% compliant with IATA and CO2 tests.

More details

The 2D codes on the bottom of the tubes make it easy to identify and track the samples in the tubes. Each LVL tube is available with several coding combinations. The XLX500 types are not suitable for 1D (barcode) on the side due to their size, but can be identified with HR (Human Readable) codes manually.

TLM compatible tubes are suitable for users with unique coding needs. These tubes have only a 2D code on the bottom and a blank area on the side can be personalized with a laser coding device.

With 2D codes and coded SBS standard racks, they are suitable for use in automated systems and for manual handling.

For packs without tubes, screw caps are also available.

Depending on individual needs, instead of the standard blue caps, you can choose from more than 16 cap colors. Please contact our staff for details.

Specifications

Specifications: XLX500
Volume: 500 µl
Max. storage temperature with screw cap: -196 °C
Outer diameter: 13 mm
Tube height without cap: 16.1 mm
Tube height with screw cap: 18.3 mm
Compatible rack type: SBS 48
Rack dimensions (L x W): 127.76 x 85.48 mm
Rack height with non capped tubes: 16.7 mm
Rack height with screw capped tubes: 18.9 mm
Rack height with lid: 23.7 mm

code
Volume
Type
Code
Cap type
Packaging
Order unit
net price
amount
in stock
625.1CXTTBLAWBL
500 µl
sterile
2D & HR
blue screw cap
automation-friendly rack
48 pc x 50 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CXTTBLAWPL
500 µl
aseptic
2D & HR
blue screw cap
automation-friendly rack
48 pc x 50 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CXTTBLAWBS
500 µl
sterile
2D & HR
blue screw cap
automation-friendly rack
48 pc x 10 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CXTTBLAWPS
500 µl
aseptic
2D & HR
blue screw cap
automation-friendly rack
48 pc x 10 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CXTTBLBUBL
500 µl
sterile
2D & HR
blue screw cap
bulk
2400 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CXTTBLBUPL
500 µl
aseptic
2D & HR
blue screw cap
bulk
2400 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CXTTBLBUBS
500 µl
sterile
2D & HR
blue screw cap
bulk
480 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Sterilized by beta radiation."

625.1CXTTBLBUPS
500 µl
aseptic
2D & HR
blue screw cap
bulk
480 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height with cap / without cap: 18,3 mm / 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. With blue screw cap. Manufactured under aseptic conditions."

625.1CXTTNCAWBL
500 µl
sterile
2D & HR
without cap
automation-friendly rack
48 pc x 50 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation. The picture is for illustration purposes only, the product does not include caps!"

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation. The picture is for illustration purposes only, the product does not include caps!"

625.1CXTTNCAWPL
500 µl
aseptic
2D & HR
without cap
automation-friendly rack
48 pc x 50 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions. The picture is for illustration purposes only, the product does not include caps!"

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions. The picture is for illustration purposes only, the product does not include caps!"

625.1CXTTNCAWBS
500 µl
sterile
2D & HR
without cap
automation-friendly rack
48 pc x 10 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation. The picture is for illustration purposes only, the product does not include caps!"

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation. The picture is for illustration purposes only, the product does not include caps!"

625.1CXTTNCAWPS
500 µl
aseptic
2D & HR
without cap
automation-friendly rack
48 pc x 10 rack / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions. The picture is for illustration purposes only, the product does not include caps!"

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Rack dimensions: 127,76 x 85,48 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions. The picture is for illustration purposes only, the product does not include caps!"

625.1CXTTNCBUBL
500 µl
sterile
2D & HR
without cap
bulk
2400 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation."

625.1CXTTNCBUPL
500 µl
aseptic
2D & HR
without cap
bulk
2400 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions."

625.1CXTTNCBUBS
500 µl
sterile
2D & HR
without cap
bulk
480 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Sterilized by beta radiation."

625.1CXTTNCBUPS
500 µl
aseptic
2D & HR
without cap
bulk
480 pc / case
Request a price
case

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions."

"Volume: 500 µl Flat bottom. Suitable for tissue samples. Tube height without cap: 16,1 mm External diameter: 13,00 mm Max. storage temperature: -196°C With a numerical code on the side of the tube and a 2D code on the bottom of the tube. Manufactured under aseptic conditions."
