SAFETYBOX AB 600 type alkali and acid storage cabinets with separated interior
SAFETYBOX AB 600 type alkali and acid storage cabinets with separated interior
SAFETYBOX AB 900/50 type alkali and acid storage cabinets with separated interior
SAFETYBOX AB 900/50 type alkali and acid storage cabinets with separated interior
SAFETYBOX AB 600 type alkali and acid storage cabinets with separated interior
SAFETYBOX AB 900/50 type alkali and acid storage cabinets with separated interior

SAFETYBOX alkali and acid storage cabinets with separated interior

Labor Security

Request a price


Depending on the type, they meet the TUV PP 51021:1996, DIN 31 001-1/DIN 4554/ZH 1/428 standards and the requirements of EN 61010-1, CEI 66-5.

Features:
Door: made of 10/10 thickness galvanized steel sheet, with acid-resistant paint, stainless hinge, lockable with key, with warning stickers on the outside. All doors lock at three points.
Cabinet: made of galvanized steel, with acid-resistant paint, - depending on the size - equipped with four or six adjustable (leveling) bases.
Extraction: with connection to a chemical cabinet, without a carbon filter (CARBOX) - some types also have a built-in fan.
Accessories: replaceable-rotating shelves with acid-resistant coating and bottom collection container.

Type explanation:

Type 600/50: single-door acid storage cabinet with electric extractor, with 2 8-liter / 50 kg load-bearing painted shelves. A stainless steel shelf is recommended for storing lye.
Type AB 900/50: acid and alkali storage cabinet with separated interior space, electric extractor, 2 stainless steel, 2 painted shelves, each with a capacity of 6 liters / 100 kg.
Type AB 600: acid and alkali storage cabinet with separated interior, electric extractor, 2 stainless steel, 2 painted shelves, each with a capacity of 9 liters / 50 kg.
Type AB 1200/50: acid and alkali storage cabinet with separated interior space, electric extractor, 2 stainless steel, 2 painted shelves, each with a capacity of 9 liters / 100 kg.

code
Type
Volume
Inner size
External size
net price
amount
in stock
30.CH006/5

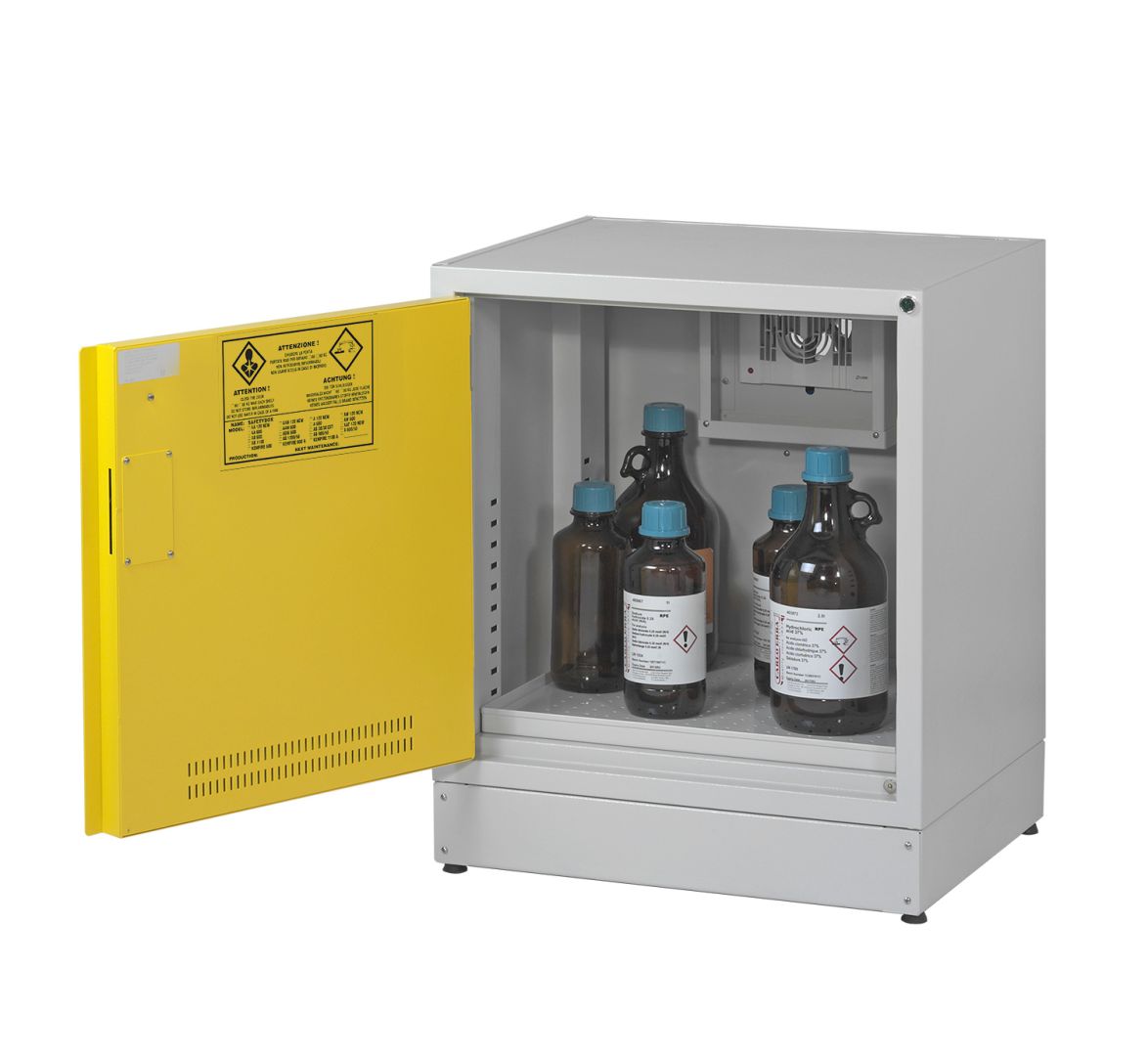

The 600/50 acid/alkali storage cabinet
136 liters
530 x 460x 560 mm
600 x 500 x 720
Request a price
pc

"Can be placed under the counter. 1-door (closing at 3 points), acid-resistant epoxy painted cover. Electric extraction (21 W, IP44), operation light. 7-liter lower collection container for catching any spilled chemicals, equipped with a perforated shelf. Optionally, a shelf can be added. A stainless shelf is recommended for alkalis. 4 adjustable legs. Prepared for external extraction, the 100 mm diameter extraction socket is on the back of the device. If an upper intake manifold is required, the 30. KIT03 adapter must also be ordered. External dimensions: 600 x 500 x 720 (W x D x H) mm Internal dimensions: 530 x 460 x 560 mm Volume: 136 liters Weight: 45 kg"

"Can be placed under the counter. 1-door (closing at 3 points), acid-resistant epoxy painted cover. Electric extraction (21 W, IP44), operation light. 7-liter lower collection container for catching any spilled chemicals, equipped with a perforated shelf. Optionally, a shelf can be added. A stainless shelf is recommended for alkalis. 4 adjustable legs. Prepared for external extraction, the 100 mm diameter extraction socket is on the back of the device. If an upper intake manifold is required, the 30. KIT03 adapter must also be ordered. External dimensions: 600 x 500 x 720 (W x D x H) mm Internal dimensions: 530 x 460 x 560 mm Volume: 136 liters Weight: 45 kg"

30.CH009/5

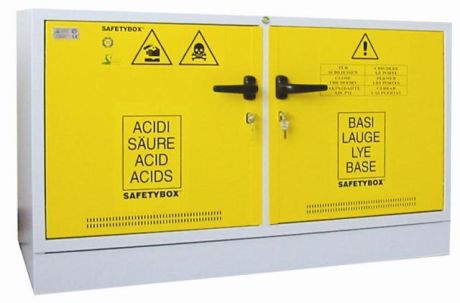

AB 900/50 acid and alkali storage
2 x 98 liters
2 chambers 380 x 470 x 550 mm
900 x 500 x 720 mm
Request a price
pc

cabinet with separate interior (next to each other), electric extractor, 6 liter lower collection containers to catch any spilled chemical. Perforated shelves must be ordered separately. Prepared for external extraction, the 100 mm diameter extraction nozzle is located on the back of the appliance. Should an upper exhaust manifold be required, the 30th KIT03 converter must also be ordered. Cabinet housing: protective earth, four adjustable feet, nylon coated hinge. External size: 900 x 500 x 720 (W x H x D) mm Internal size: 2 chambers, each 380 x 470 x 550 mm Volume: 2x approx. 98 liters Weight: 55 kg

cabinet with separate interior (next to each other), electric extractor, 6 liter lower collection containers to catch any spilled chemical. Perforated shelves must be ordered separately. Prepared for external extraction, the 100 mm diameter extraction nozzle is located on the back of the appliance. Should an upper exhaust manifold be required, the 30th KIT03 converter must also be ordered. Cabinet housing: protective earth, four adjustable feet, nylon coated hinge. External size: 900 x 500 x 720 (W x H x D) mm Internal size: 2 chambers, each 380 x 470 x 550 mm Volume: 2x approx. 98 liters Weight: 55 kg

30.CH006AB

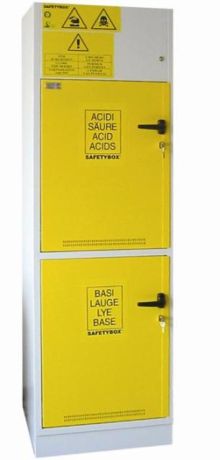

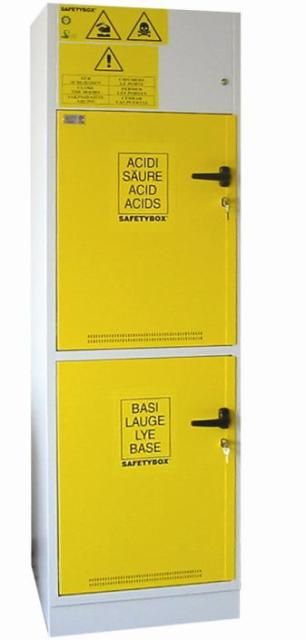

AB 600 acid/alkali storage cabinet
341 liters
520 x 440 x 726+765 mm
600 x 500 x 1998 mm
Request a price
pc

"Two chambers, 1-1 door, separately for storing acids and in a separate space for alkalis. With 4 shelves (2 acid and 2 in the alkali storage section). Built-in electric exhaust with activated carbon filter. P=65 Watts The cabinet complies with TÜV, EN 61010-1, EN 16121, EN 16122 NORMS, PPP52125. Storage capacity: approx. 90 liters. The load capacity of the shelves is approx. 8 liters, 40/100 kg. Separate bottom collection containers. The trays for storing acids are made of stainless steel protected with acid-resistant paint. The lyes can be kept in unpainted stainless steel pans. Adjustable height legs. External dimensions: 600 x 500 x 1998 (H) mm Internal dimensions: 520 x 440 x 726+765 mm Volume: 341 liters Weight: approx. 100 kg. Spare filter code: 30.F007"

"Two chambers, 1-1 door, separately for storing acids and in a separate space for alkalis. With 4 shelves (2 acid and 2 in the alkali storage section). Built-in electric exhaust with activated carbon filter. P=65 Watts The cabinet complies with TÜV, EN 61010-1, EN 16121, EN 16122 NORMS, PPP52125. Storage capacity: approx. 90 liters. The load capacity of the shelves is approx. 8 liters, 40/100 kg. Separate bottom collection containers. The trays for storing acids are made of stainless steel protected with acid-resistant paint. The lyes can be kept in unpainted stainless steel pans. Adjustable height legs. External dimensions: 600 x 500 x 1998 (H) mm Internal dimensions: 520 x 440 x 726+765 mm Volume: 341 liters Weight: approx. 100 kg. Spare filter code: 30.F007"

30.CH012/5
AB 1200/50 acid and alkali storage
273 liters
2 x 530 x 460 x 560 mm
120 x 50 x 72 cm
Request a price
pc

"cabinet with separated interior (next to each other), electric extractor, 2 stainless steel, 2 painted shelves, each with a load capacity of 40 kg. Prepared for external extraction, the 100 mm diameter extraction socket is on the back of the device. If an upper intake manifold is required, the 30. KIT03 adapter must also be ordered. Cabinet: protective grounding, four adjustable feet, nylon-coated hinge. External dimensions: 120 x 50 x 72 cm Internal dimensions: 2 x 53 x 46 x 56 cm Volume: 273 liters Weight: 75 kg"

"cabinet with separated interior (next to each other), electric extractor, 2 stainless steel, 2 painted shelves, each with a load capacity of 40 kg. Prepared for external extraction, the 100 mm diameter extraction socket is on the back of the device. If an upper intake manifold is required, the 30. KIT03 adapter must also be ordered. Cabinet: protective grounding, four adjustable feet, nylon-coated hinge. External dimensions: 120 x 50 x 72 cm Internal dimensions: 2 x 53 x 46 x 56 cm Volume: 273 liters Weight: 75 kg"

30.BP001
CARBOX charcoal filter unit
-
-
25 x 25 x33 cm
Request a price
pc

"SAFETYBOX for acid and alkali storage cabinets. Its dimensions are 250 x 250 x 330 mm"

"SAFETYBOX for acid and alkali storage cabinets. Its dimensions are 250 x 250 x 330 mm"
