4/6/8 channel, smei-automatic cappers

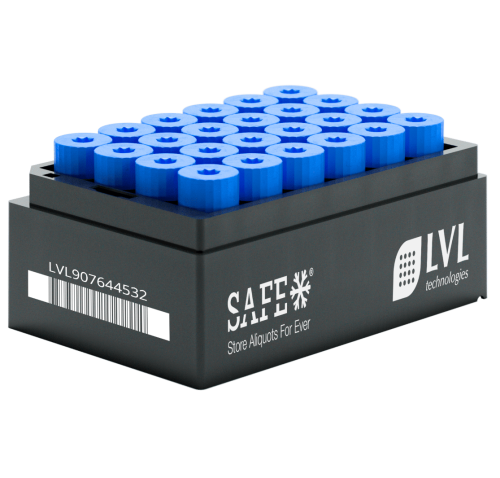

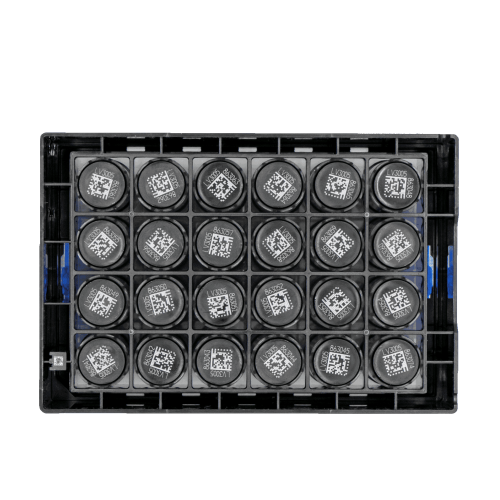

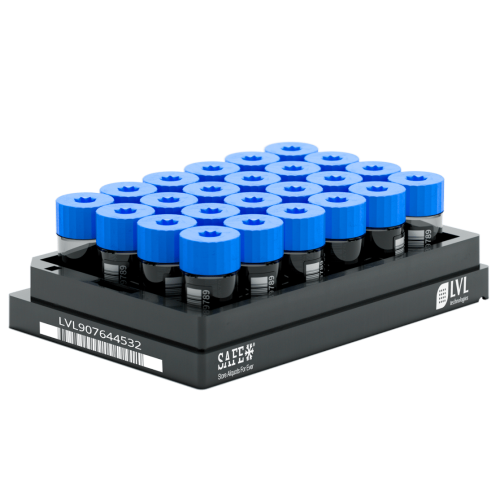

4 channel semi-automatic capper for SBS 24 XT external thread tubes

6 channel semi-automatic capper for SBS 48 XT external thread tubes

8 channel semi-automatic capper for SBS 96 XT external thread tubes

8 channel semi-automatic capper for SBS 96 IT internal thread tubes

Semi-automatic, multi channel (4/6/8) capper/decapper for LVL tubes

LVL Technologies

Request a price

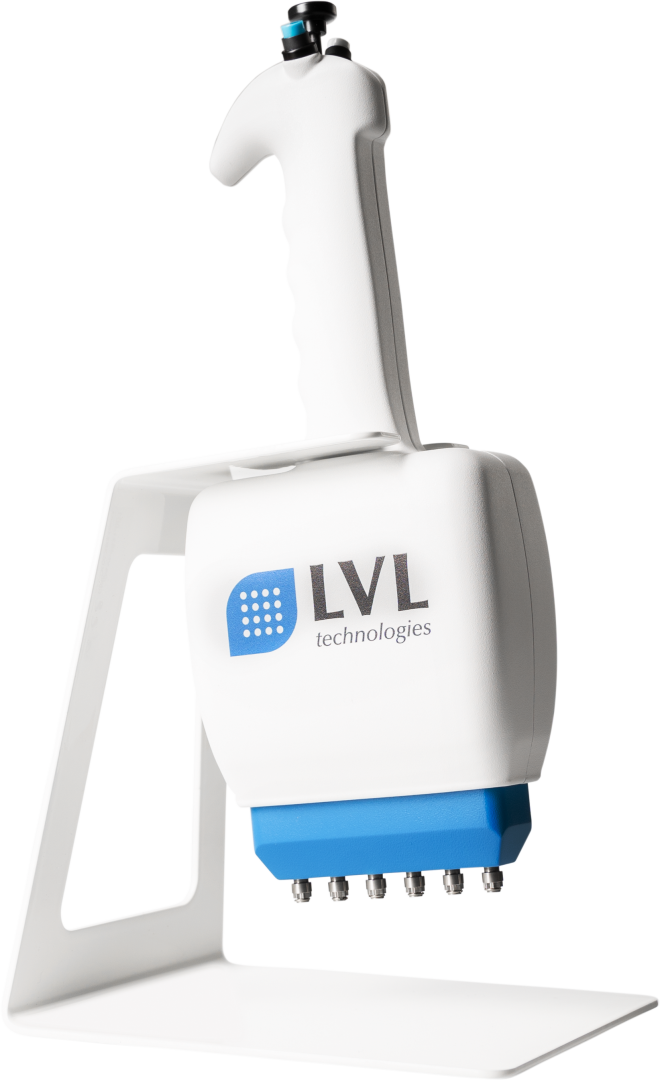

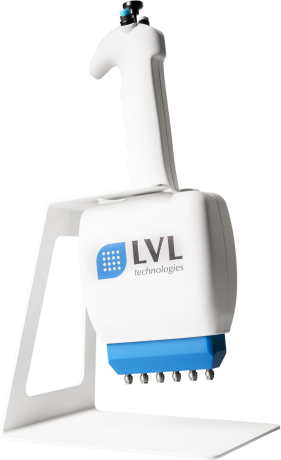

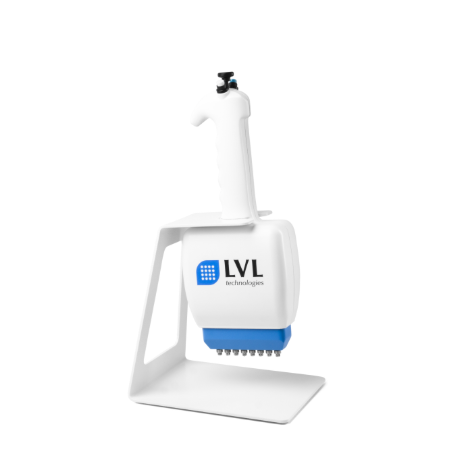

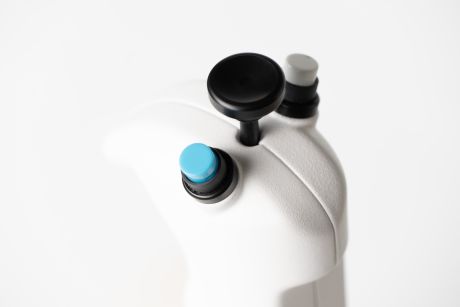

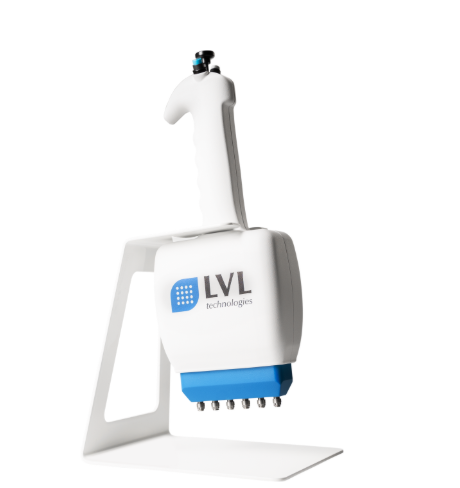

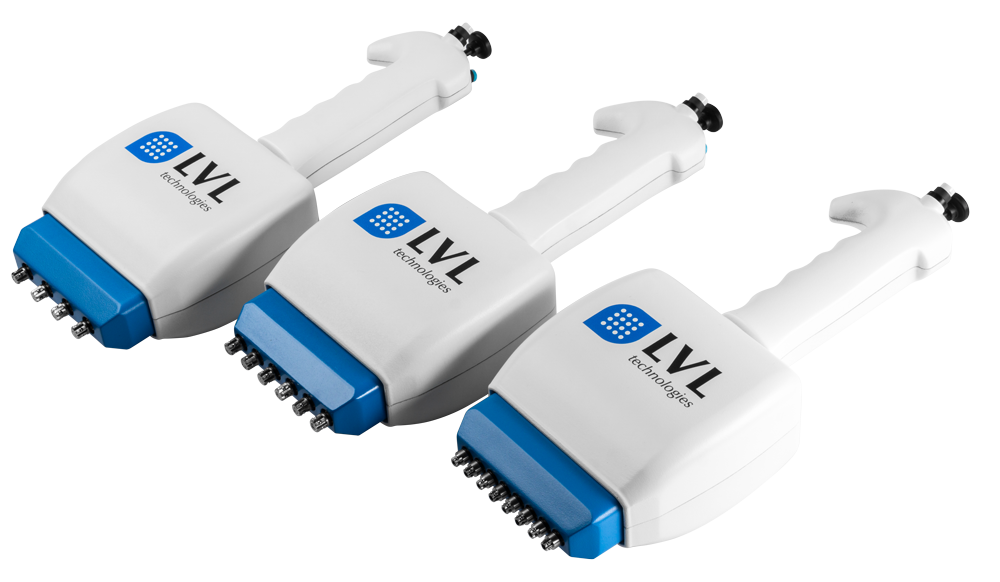

4, 6 and 8 channel semi-automatic, battery-powered capper and decapper. The compatibility of the four different versions covers all LVL screw-capped tubes. Each version covers 1 rack type. For the 96-position SBS standard rack tubes, two types of devices are available, one for external and one for internal threaded tubes. Ideal for laboratories that need to process several samples at the same time without full automation. The robust design and user-friendly operation are perfect for everyday use. The device has only 3 buttons for opening, closing and ejecting the caps. The different types work with the correct torque for the compatible tubes. Each position has a separate motor for opening or closing the caps.

Using the correct torque is very important for proper closure. Caps that are too loosely screwed on will not provide a leak-proof seal, while too much torque can damage the thread, which can also lead to an improper seal. The appropriate torque for each LVL tube has been determined based on the rack type (SBS 96 - 7Ncm, SBS 48 - 15Ncm, SBS 24 - 15Ncm).

Thanks to the integrated ejection mechanism, the entire cap opening/closing process can be carried out without human contact, which can reduce the risk of possible contamination.

More details


code

Name

Compatible type

net price

amount

in stock

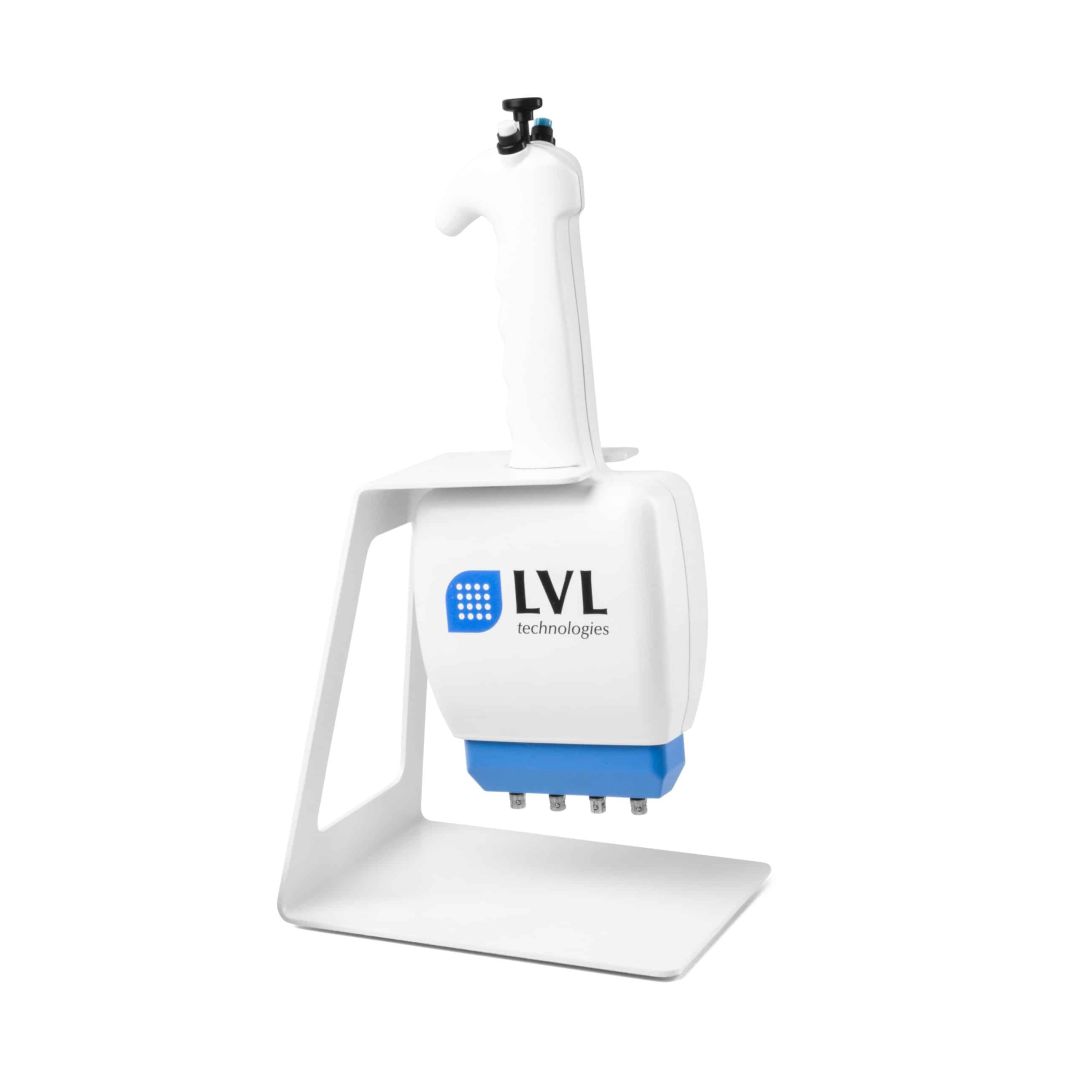

SAFE Cap 4 Channel HH semi-automatic 4-position manual capper, SBS 24 XT for externally threaded tubes

625.CDC4CHXT

semi-automatic 4 channel (de)capper

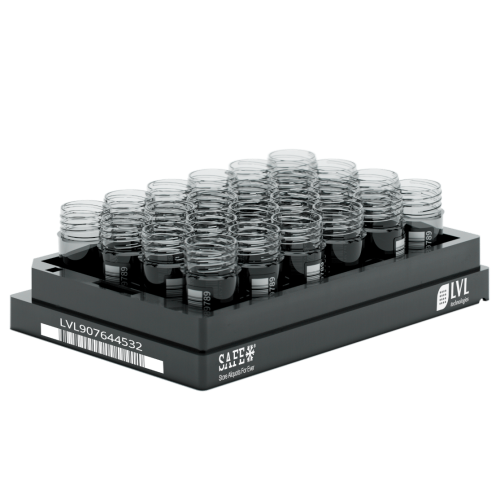

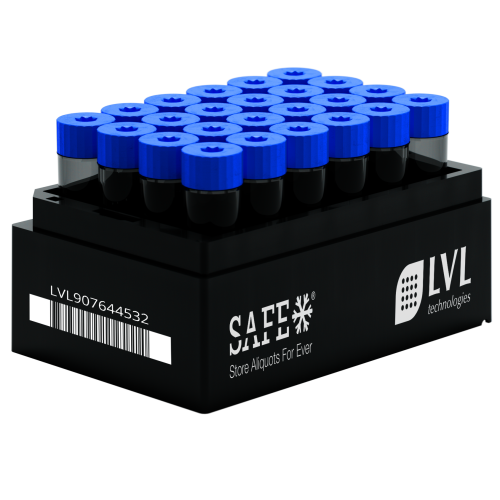

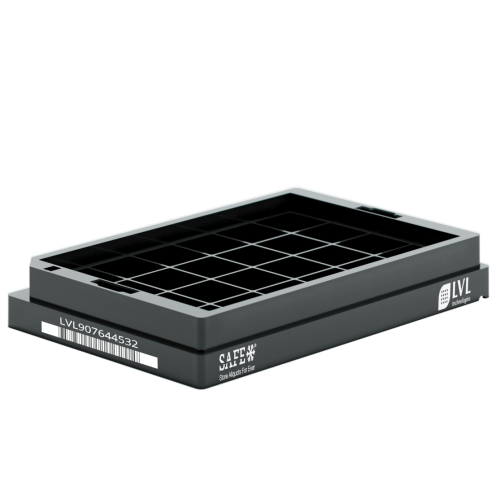

SBS 24 XT external thread tubes

Request a price

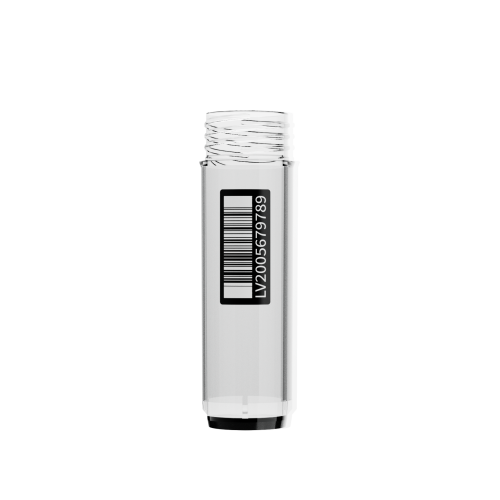

"Capping and decapping of 4 tubes at once. Minimizes manual effort and increases efficiency, optimizing laboratory processes. Robust construction and easy to use. Semi-automatic, battery-operated. With energy-saving mode. With stand. Ergonomic design for comfortable working. Enables contamination-free capping. Four separate motors enable precise sealing of each tube with 7 Ncm. With integrated separation mechanism. Capping time: approx. 4.7 seconds Decapping time: approx. 0.5 seconds Compatibility: - Rack: SBS 24 XT -Tubes: XXLX2000 / 4000 / 6000 / 8000"

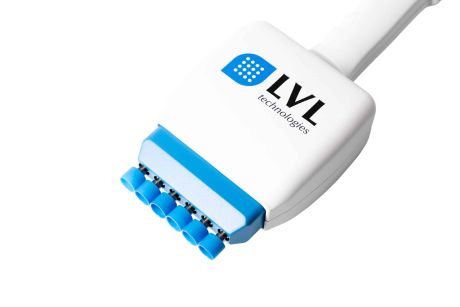

SAFE Cap 6 Channel HH semi-automatic 6-position manual capper, SBS 48 XT for externally threaded tubes

625.CDC6CHXT

semi-automatic 6 channel (de)capper

SBS 48 XT external thread tubes

Request a price

"Capping and decapping of 6 tubes at once. Minimizes manual effort and increases efficiency, optimizing laboratory processes. Robust construction and easy to use. Semi-automatic, battery-operated. With energy-saving mode. With stand. Ergonomic design for comfortable working. Enables contamination-free capping. Six separate motors enable precise sealing of each tube with 7 Ncm. With integrated separation mechanism. Capping time: approx. 4 seconds Decapping time: approx. 0.5 seconds Compatibility: - Rack: SBS 48 XT - Tubes: XLX500 / 2000 / 4000 / 1800V"

SAFE Cap 8 Channel HH semi-automatic 8-position manual capper, for SBS 96 XT external threaded tubes

625.CDC8CHXT4

semi-automatic 8 channel (de)capper

SBS 96 XT external thread tubes

Request a price

"Capping and decapping of 8 tubes at once. Minimizes manual effort and increases efficiency, optimizing laboratory processes. Robust and easy to use. Semi-automatic, battery-operated. With energy-saving mode. With stand. Ergonomic design for comfortable working. Enables contamination-free capping. Eight separate motors enable precise capping of each tube with 7 Ncm. With integrated release mechanism. Capping time: approx. 3.5 seconds Decapping time: approx. 0.5 seconds Compatibility: - Rack: SBS 96 XT - Tubes: SX260 / 300, MX500, LX1000"

SAFE Cap 8 Channel HH semi-automatic 8-position manual capper, for SBS 96 IT internally threaded tubes

625.CDC8CHIT2

semi-automatic 8 channel (de)capper

SBS 96 IT internal thread tubes

Request a price

"Capping and decapping of 8 tubes at once. Minimizes manual effort and increases efficiency, optimizing laboratory processes. Robust and easy to use. Semi-automatic, battery-powered. With energy-saving mode. With stand. Ergonomic design for comfortable working. Enables contamination-free capping. Eight separate motors enable precise capping of each tube with 7 Ncm. With integrated release mechanism. Capping time: approx. 3.5 seconds Decapping time: approx. 0.5 seconds Compatibility: - Rack: SBS 96 IT - Tubes: MI500, LI500"
