VELP SER 148 type, 6 position Randall extractor

Soxhlet extractor, multiple positions

Velp Scientifica

Request a price

VELP's SER 148 extractor family is suitable for separating the components of materials - for example, extracting fat. Two devices are used for the rapid extraction of fat: 3 and 6 positions.

Main field of use: extracting soluble components of food, feed, rubber, soil and pharmaceutical samples.
The application is based on the Randall method, according to which the sample can be plastic or solid (the method uses immersion, washing and solvent recovery).

The RANDALL method has three main advantages over the "traditional" Soxhlet method:
- can be about 5 times faster (hot solvent versus cold solvent)
- uses less solvent (good solvent recovery)
- lower analysis costs.

The SER 148 devices guarantee the complete safety of the operator thanks to their IP55 protection.

Specifications:	VELP SER 148/3	VELP SER 148/6
Number of programs:	29	29
Sample weight:	0.5 - 15 g (generally 2-3g)	0.5 - 15 g (generally 2-3g)
Reproducibility (RSD):	<1%	<1%
Temperature range:	100 - 260°C	100 - 260°C
Solvent volume:	30 - 100 ml	30 - 100 ml
Solvent recovery:	50 - 75%	50 - 75%
Cooling water consumption:	2 liters / minute	2 liters / minute
Consumption:	500 W	950 W
Dimensions:	480 x 620 x 390 mm	700 x 620 x 390 mm
Weight:	30 kg	40 kg

The price includes the functional device and 1 box (25 pcs) of extraction sleeves. Additional accessories and sleeves must be ordered separately.


code

Name

Size

Places

Power

net price

amount

in stock

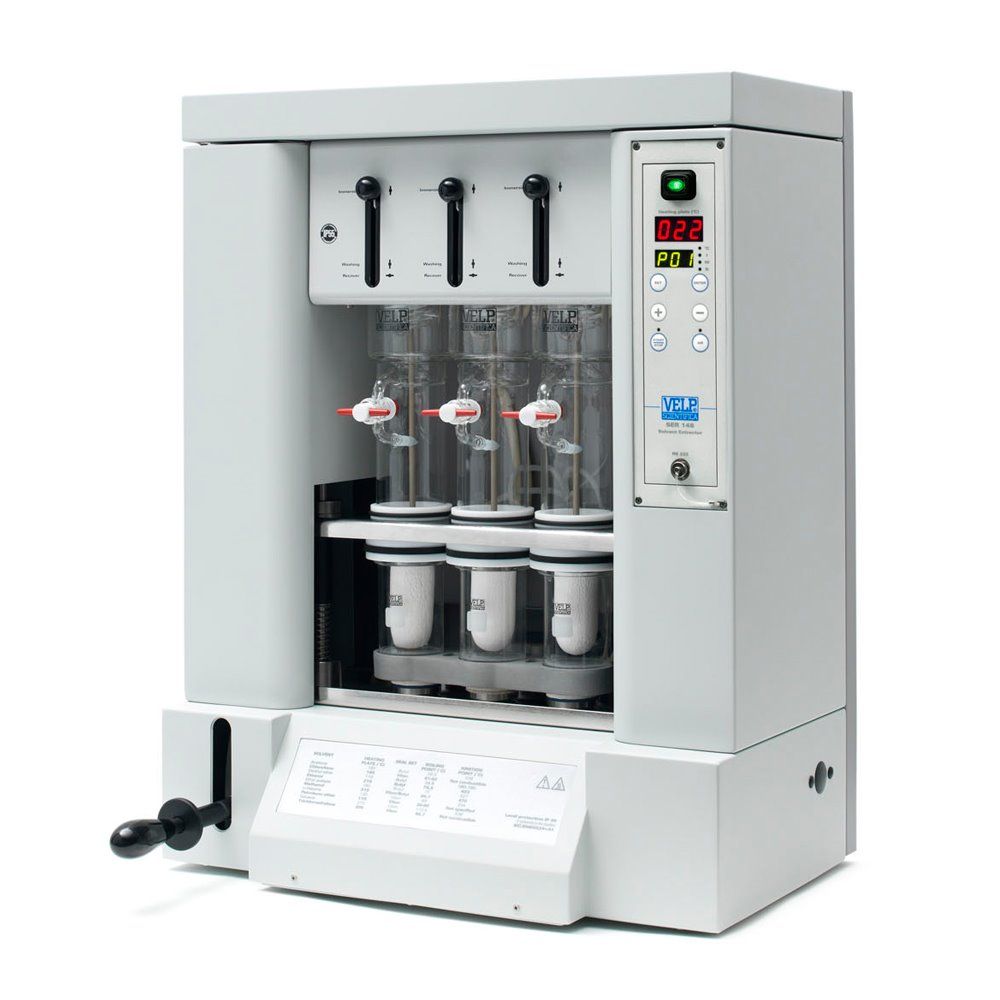

SER 148/3 Semi-automatic solvent extractor, 3 places

331.F30300240

VELP SER 148/3 Soxhlet(Randhall)-extractor

480 x 620 x 390 mm

500 W

Request a price

"3-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion

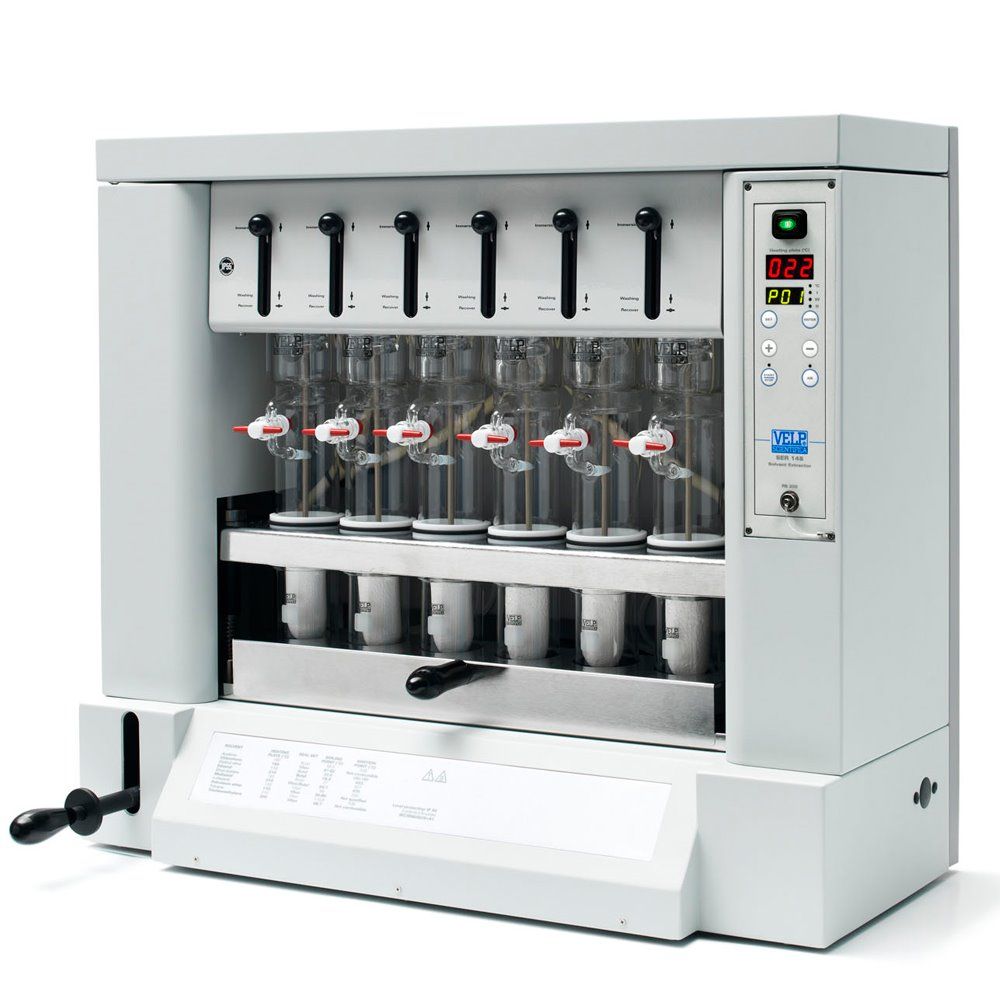

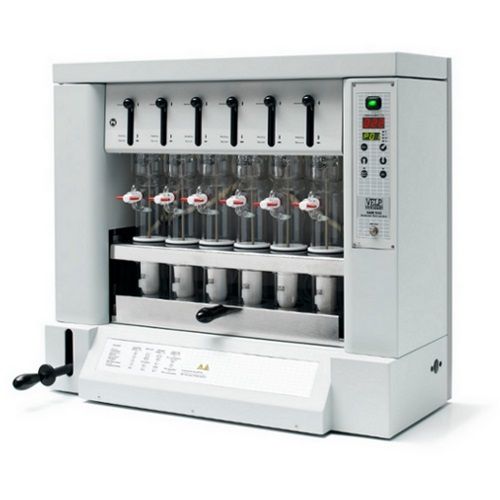

SER 148/6 Semi-automatic solvent extractor, 6 places

331.F30300242

VELP SER 148/6 Soxhlet(Randhall)-extractor

700 x 620 x 390 mm

950 W

Request a price

"6-positions. Solvent extraction system suitable for the separation of a substance or a group of elements from solid and semi-solid samples according to the Randall technique. Can be used to separate a substance or a group of elements (e.g. fat) from solid and semi-solid samples according to the Randall technique (consisting of Immersion
