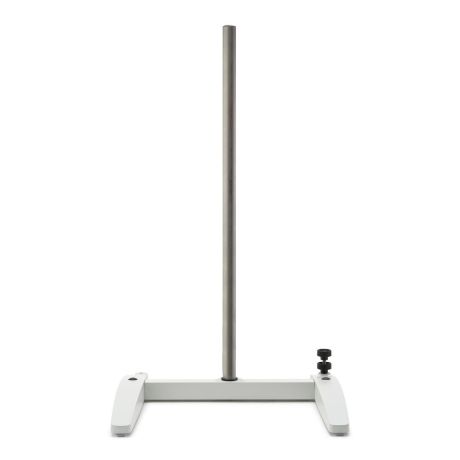

Standard stand for overhead stirrers
Standard stand for overhead stirrers
Velp ES overhead stirrer
Velp OHS 20 Digital overhead stirrer
Velp LS overhead stirrer
Velp DLS digital overhead stirrer
Velp OHS 40 Digital overhead stirrer
Velp LH overhead stirrer
Velp DLH digital overhead stirrer
Velp OHS 60 Advance overhead stirrer
Velp OHS 60 Digital overhead stirrer
Velp OHS 100 Advance overhead stirrer
Velp OHS 100 Digital overhead stirrer
Velp PW overhead stirrer
Velp OHS 200 Advance overhead stirrer
Velp OHS 200 Digital overhead stirrer
Standard stand for overhead stirrers

Velp overhead stirrers (Velp ES, LS, DLS, LH, DLH, PW)

Velp Scientifica

Request a price


Velp ES, LS, DLS, LH, DLH and PW overhead stirrers

Lightweight stick mixer motors with IP 40 housing in analog design (except DLS and DLH) with protection against overload and overheating. The digital display of the DLS and DLH types shows the selected and current speed, torque and time. The stand for holding the mixing motors,bossheads, vesesl holder and the corresponding stirring shaft must be ordered separately!

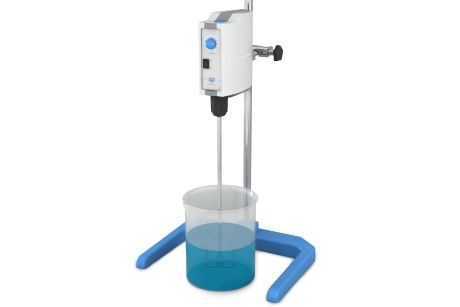

The LS and DLS type devices can also be ordered in a package, which includes:

Type LS DLS digital
Support rod, stand, bosshead: x x
Propeller stirring shaft:   x
Fix blade stirring shaft: x

More details

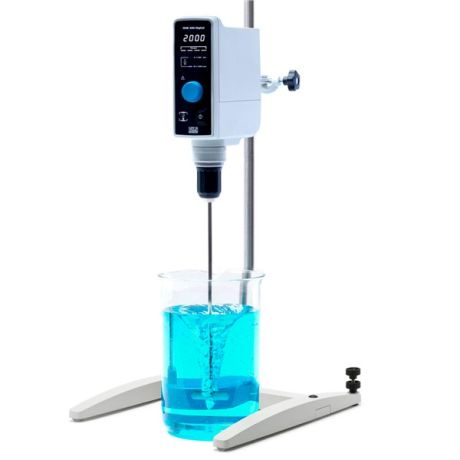

OHS overhead stirrers

Stick mixer motors with IP 54 housing and brushless microprocessor motor for excellent performance. With built-in safety systems that alert the user and stop the device in case of overload and overheating. With the SpeedServoTM torque compensating technology, the devices can keep the specified speed constant even with changes in viscosity. The torque remains stable in the entire speed range, thus facilitating the reproducibility of the tests. The timer allows you to operate the devices from 1 minute to 99 hours.

OHS mixing motors are available in two versions:

  • Digital: The change in viscosity during the test can also be monitored on the LED display.
  • Advanced: With a TFT display, where the set parameters and changes in viscosity can be viewed during the process. In order to ensure proper fixing, the vibration sensor built into the device stops the device above the specified sensitivity, so that the user can make sure that the device is properly fixed.

The stand for holding the overhead stirrer, bossheads, vessel holder and the corresponding stirring shaft must be ordered separately!

Technical data of Velp overhead stirrers:

Specifications: ES OHS 20 Digital LS DLS
Type: Analog Digital Analog Digital
Max. viscosity: 1,000 mPas 10,000 mPas 25,000 mPas 25,000 mPas
Stirring volume: max. 15 liters max. 25 liters max. 25 liters max. 25 liters
Speed: 50 - 1300 rpm 30 - 2000 rpm 50 - 2000 rpm 50 - 2000 rpm
Dimensions: 80 x 160 x 200 mm 90 x 285 x 235 mm 80 x 215 x 196 mm 80 x 215 x 196 mm
Weight: 1.3 kg 4.1 kg 2.3 kg 2.5 kg
Specifications: OHS 40 Digital LH DLH OHS 60 Advance
Type: Digital Analog Digital Digital
Max. viscosity: 25,000 mPas 50,000 mPas 50,000 mPas 50,000 mPas
Stirring volume: max. 25 liters max. 40 liters max. 40 liters max. 40 liters
Speed: 30 - 2000 rpm 50 - 2000 rpm 50 - 2000 rpm 30 - 2000 rpm
Dimensions: 90 x 285 x 235 mm 80 x 230 x 196 mm 80 x 230 x 196 mm 90 x 315 x 235 mm
Weight: 4.1 kg 2.9 kg 3 kg 4.6 kg
Specifications: OHS 60 Digital OHS 100 Advance OHS 100 Digital PW
Type: Digital Digital Digital Analog
Max. viscosity: 50,000 mPas 70,000 mPas 70,000 mPas 100,000 mPas
Stirring volume: max. 40 liters max. 100 liters max. 100 liters max. 70 liters
Speed: 30 - 2000 rpm 30 - 1300 rpm 30 - 1300 rpm 20 - 1200 rpm
Dimensions: 90 x 285 x 235 mm 90 x 315 x 235 mm 90 x 285 x 235 mm 80 x 230 x 196 mm
Weight: 4.1 kg 4.6 kg 4.1 kg 2.9 kg
Specifications: OHS 200 Advance OHS 200 Digital
Type: Digital Digital
Max. viscosity: 100,000 mPas 100,000 mPas
Stirring volume: max. 100 liters max. 100 liters
Speed:

6 - 400 rpm

30 - 2000 rpm

6 - 400 rpm

30 - 2000 rpm

Dimensions: 90 x 315 x 235 mm 90 x 315 x 235 mm
Weight: 4.6 kg 4.6 kg

code
Max. viscosity
Name
net price
amount
in stock
331.F201A0152
1.000 mPas

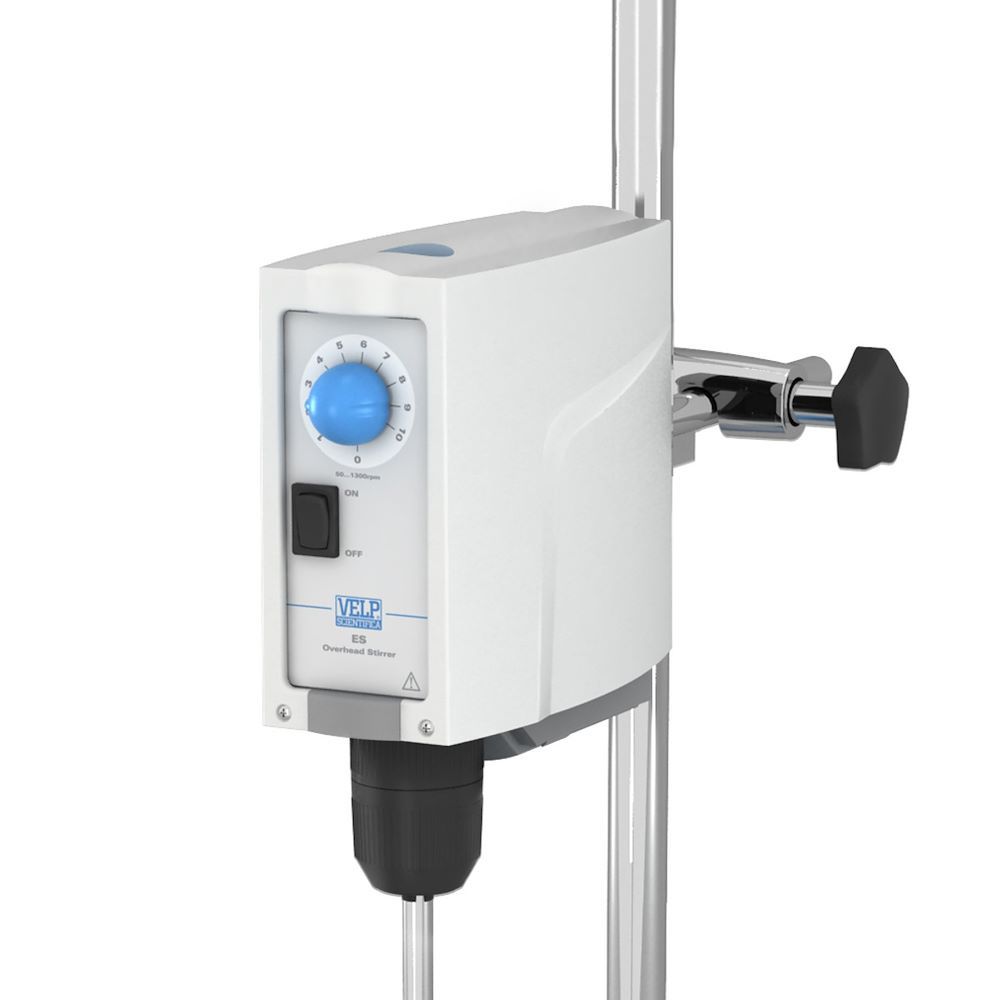

Velp ES overhead stirrer, for low viscosity fluids
Request a price
pc

"Analog. With polymer structure. Ideal for premium resistance to acids

"Analog. With polymer structure. Ideal for premium resistance to acids

331.F20100494
10.000 mPas

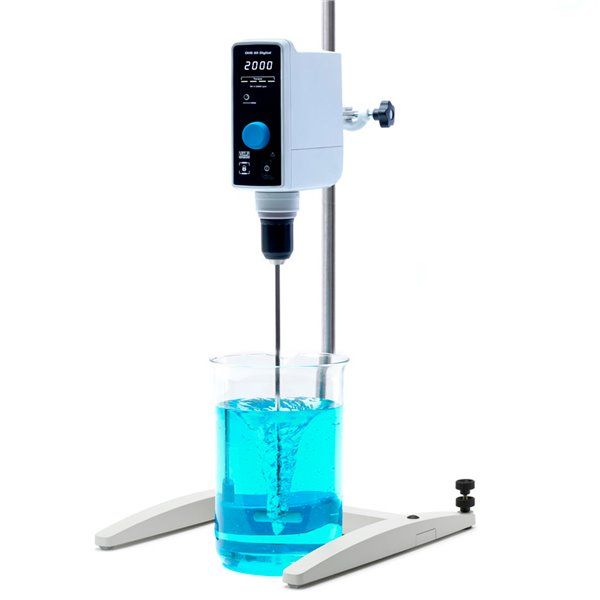

Velp OHS 20 Digital overhead stirrer
Request a price
pc

"Overhead stirrer for low and medium viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 25 liters Max. torque: 20 Ncm Max. viscosity: 10,000 mPa*s Dimensions: 90 x 285 x 235 mm Weight: 4.1 kg"

"Overhead stirrer for low and medium viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 25 liters Max. torque: 20 Ncm Max. viscosity: 10,000 mPa*s Dimensions: 90 x 285 x 235 mm Weight: 4.1 kg"

331.SA201A0155
25.000 mPas
Velp DLS digital overhead stirrer in pack, for loe and medium viscosity fluids
Request a price
pack

Digital. With polymer structure. Ideal for premium resistance to acids; bases and solvents. All the models are eqiuipped with a user-friendly self-locking chuck; that simplifies assembly and gentle start-up ensures optimum progression of the stirring speed. As always ensured the most advances safety standards. With digital display and timer. The DLS is ideal for medium/high viscosity liquids. A bright and easy-to-read display shows current speed set speed; torque and time. Safe and easy to use. The timer can be set up to 999:59 minutes with automatic switch-off. It is ensuring safety with overload; over-current and overheating protection. Easy to install; resistant and with a small footprint. Powerful stirring. VELP DLS ensures a smooth start and vigorous agitation even at maximum speed. DLS offers a feedback system; which ensures constant speed even with varying viscosity. DLS is designed to offer a long lifespan even in challenging operating conditions. The special technopolymer structure and the IP 40 guarantee good chemical resistance and special handling. A motor guarantees continuous operations over the years; without additional maintenance costs. Material: technopolymer and epoxy painted aluminum alloy. Can accommodate shafts with up to 10 mm diameter and does not require any tool. Electronic protection rating CEI EN 60529: IP 40. Electornic speed regulation: from 50 to 2000 rpm. Power: 120 W; 110-230 V / 50-60 Hz. Stirring volume (H2O) up to 25 L. Max. viscosity: up to 25000 mPas. Max. torque: 40 Ncm. Dimensions: 80x215x196 mm. Weight: 2.5 kg. Allowed room temperature: 0-40°C.

Digital. With polymer structure. Ideal for premium resistance to acids; bases and solvents. All the models are eqiuipped with a user-friendly self-locking chuck; that simplifies assembly and gentle start-up ensures optimum progression of the stirring speed. As always ensured the most advances safety standards. With digital display and timer. The DLS is ideal for medium/high viscosity liquids. A bright and easy-to-read display shows current speed set speed; torque and time. Safe and easy to use. The timer can be set up to 999:59 minutes with automatic switch-off. It is ensuring safety with overload; over-current and overheating protection. Easy to install; resistant and with a small footprint. Powerful stirring. VELP DLS ensures a smooth start and vigorous agitation even at maximum speed. DLS offers a feedback system; which ensures constant speed even with varying viscosity. DLS is designed to offer a long lifespan even in challenging operating conditions. The special technopolymer structure and the IP 40 guarantee good chemical resistance and special handling. A motor guarantees continuous operations over the years; without additional maintenance costs. Material: technopolymer and epoxy painted aluminum alloy. Can accommodate shafts with up to 10 mm diameter and does not require any tool. Electronic protection rating CEI EN 60529: IP 40. Electornic speed regulation: from 50 to 2000 rpm. Power: 120 W; 110-230 V / 50-60 Hz. Stirring volume (H2O) up to 25 L. Max. viscosity: up to 25000 mPas. Max. torque: 40 Ncm. Dimensions: 80x215x196 mm. Weight: 2.5 kg. Allowed room temperature: 0-40°C.

331.F201A0155
25.000 mPas

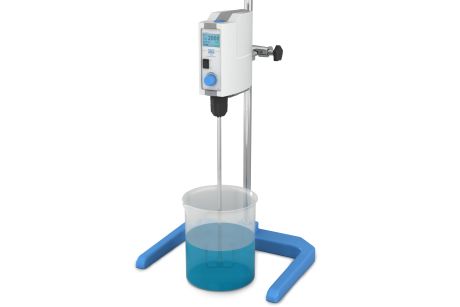

Velp DLS digital overhead stirrer for low and medium viscosity fluids
Request a price
pc

"Digital. With polymer structure. Ideal for premium resistance to acids

"Digital. With polymer structure. Ideal for premium resistance to acids

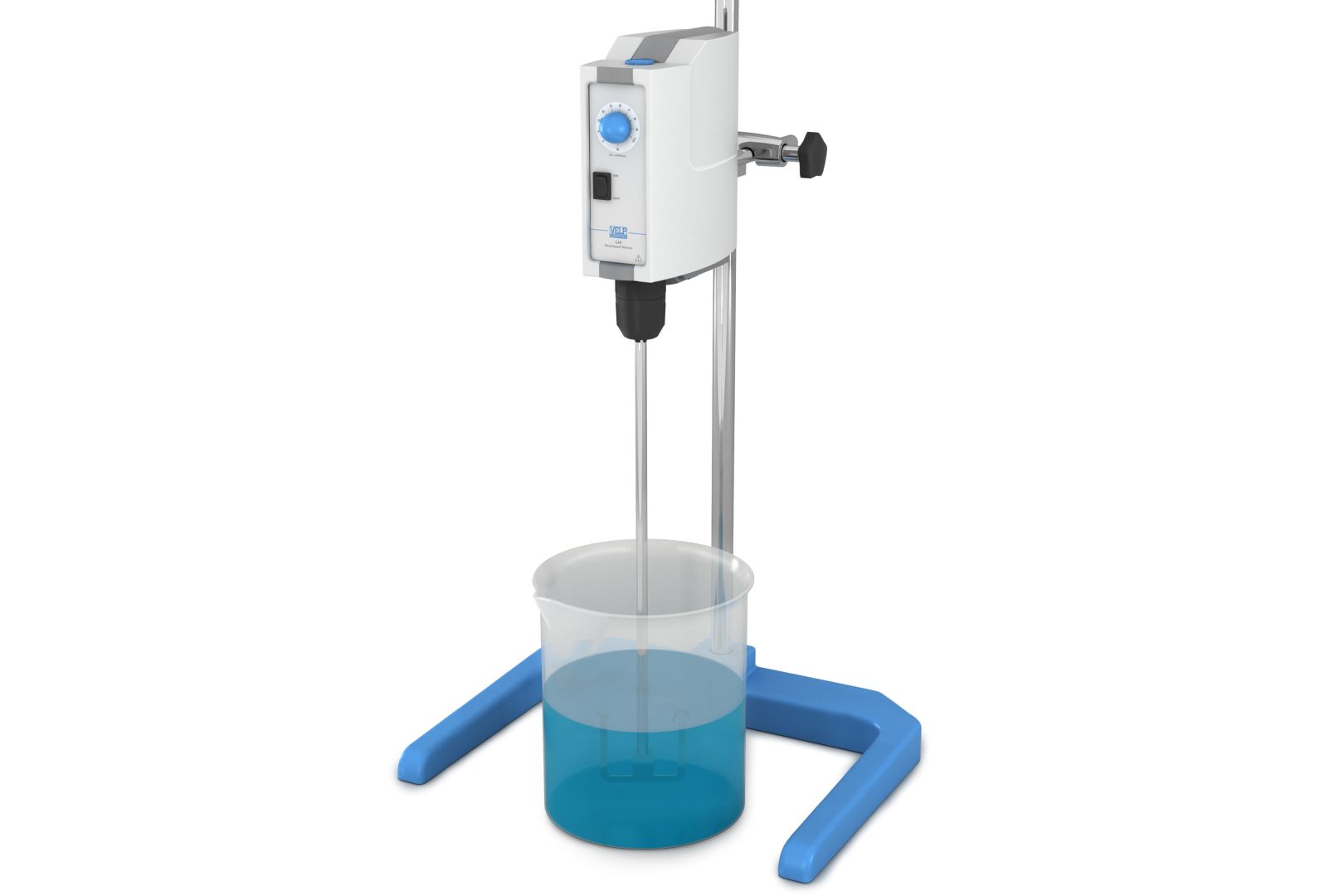

331.SA201A0151
25.000 mPas
Velp LS overhead stirrer in pack, for low and medium viscosity fluids
Request a price
pc

"Analog. With polymer structure. Ideal for premium resistance to acids

"Analog. With polymer structure. Ideal for premium resistance to acids

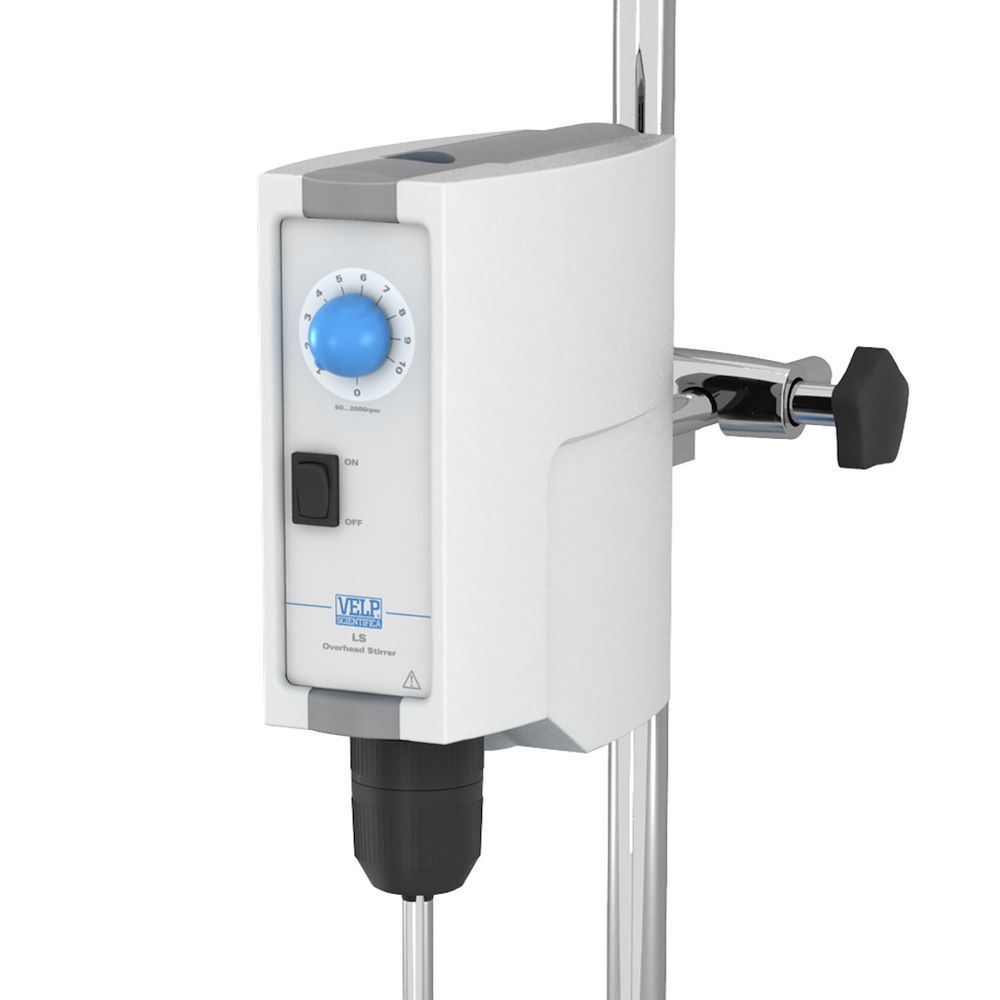

331.F201A0151
25.000 mPas

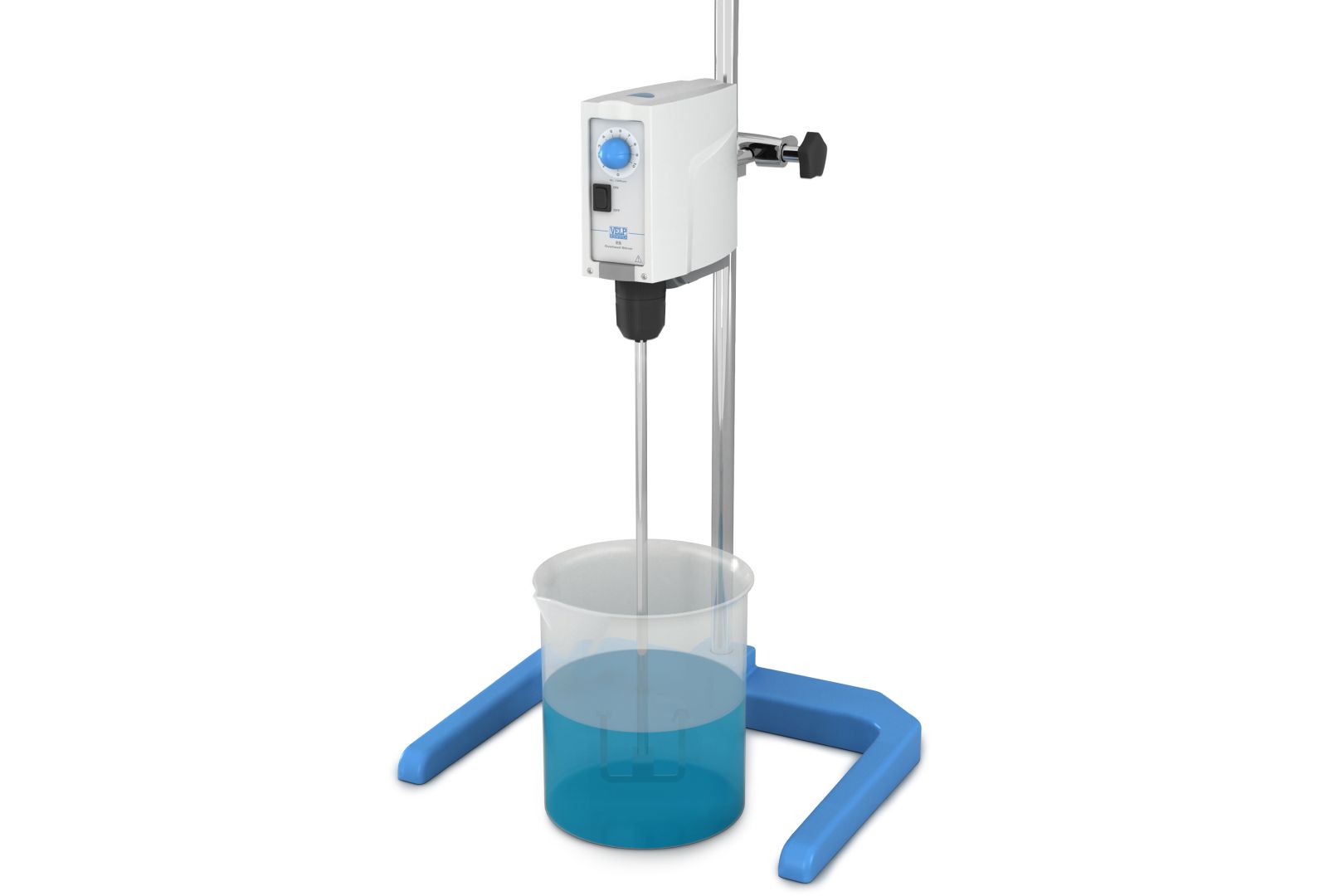

Velp LS overhead stirrer, for low and medium viscosity fluids
Request a price
pc

"Analog. With polymer structure. Ideal for premium resistance to acids

"Analog. With polymer structure. Ideal for premium resistance to acids

331.F20100493
25.000 mPas

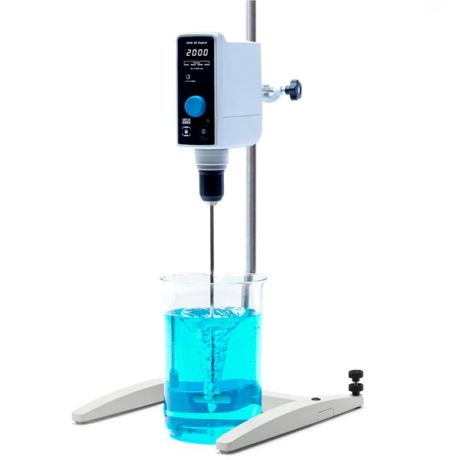

Velp OHS 40 Digital overhead stirrer
Request a price
pc

"Overhead stirrer for low and medium viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 25 liters Max. torque: 40 Ncm Max. viscosity: 25,000 mPa*s Dimensions: 90 x 285 x 235 mm Weight: 4.1 kg"

"Overhead stirrer for low and medium viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 25 liters Max. torque: 40 Ncm Max. viscosity: 25,000 mPa*s Dimensions: 90 x 285 x 235 mm Weight: 4.1 kg"

331.F201A0157
50.000 mPas

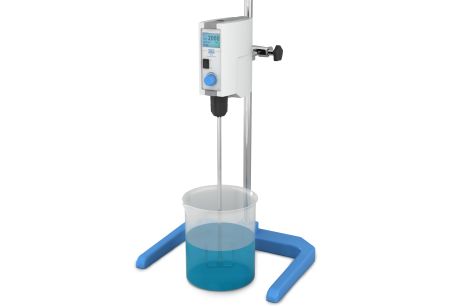

Velp DLH digital overhead stirrer, for medium and high viscosity fluids
Request a price
pc

"Digital. With polymer structure. Ideal for premium resistance to acids

"Digital. With polymer structure. Ideal for premium resistance to acids

331.F201A0156
50.000 mPas
Velp LH overhead stirrer, for medium and high viscosity fluids
Request a price
pc

"Analog. With polymer structure. Ideal for premium resistance to acids

"Analog. With polymer structure. Ideal for premium resistance to acids

331.F20100482
50.000 mPas
Velp OHS 60 Advance overhead stirrer
Request a price
pc

"Overhead stirrer for medium and high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 40 liters Max. torque: 60 Ncm Max. viscosity: 50,000 mPa*s Dimensions: 90 x 315 x 235 mm Weight: 4.6 kg"

"Overhead stirrer for medium and high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 40 liters Max. torque: 60 Ncm Max. viscosity: 50,000 mPa*s Dimensions: 90 x 315 x 235 mm Weight: 4.6 kg"

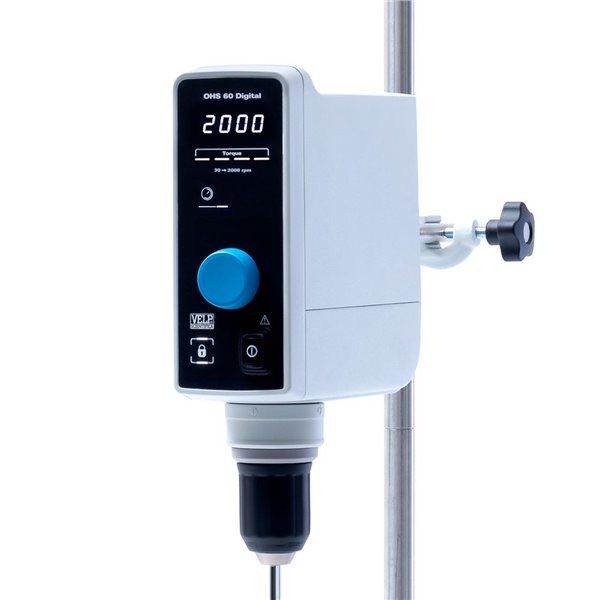

331.F20100492
50.000 mPas
Velp OHS 60 Digital overhead stirrer
Request a price
pc

"Overhead stirrer for medium and high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 40 liters Max. torque: 60 Ncm Max. viscosity: 50,000 mPa*s Dimensions: 90 x 285 x 235 mm Weight: 4.1 kg"

"Overhead stirrer for medium and high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 2,000 rpm stirring volume: max. 40 liters Max. torque: 60 Ncm Max. viscosity: 50,000 mPa*s Dimensions: 90 x 285 x 235 mm Weight: 4.1 kg"

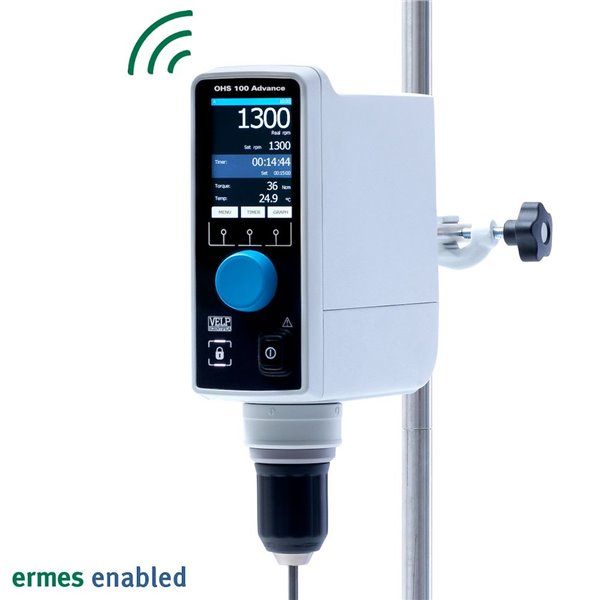

331.F20100481
70.000 mPas
Velp OHS 100 Advance overhead stirrer
Request a price
pc

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 1,300 rpm stirring volume: max. 100 liters Max. torque: 100 Ncm Max. viscosity: 70,000 mPa*s Dimensions: 90 x 315 x 235 mm Weight: 4.6 kg"

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 30 - 1,300 rpm stirring volume: max. 100 liters Max. torque: 100 Ncm Max. viscosity: 70,000 mPa*s Dimensions: 90 x 315 x 235 mm Weight: 4.6 kg"

331.F20100491
70.000 mPas
Velp OHS 100 Digital overhead stirrer
Request a price
pc

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 and 13 mm Power: 120 W Speed: 30-1300 rpm stirring volume: 100 liters Max. torque: 100 Ncm Max. viscosity: 70,000 mPa*s Dimensions: 90x285x235 mm Weight: 4.1 kg"

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 and 13 mm Power: 120 W Speed: 30-1300 rpm stirring volume: 100 liters Max. torque: 100 Ncm Max. viscosity: 70,000 mPa*s Dimensions: 90x285x235 mm Weight: 4.1 kg"

331.F20100480
100.000 mPas

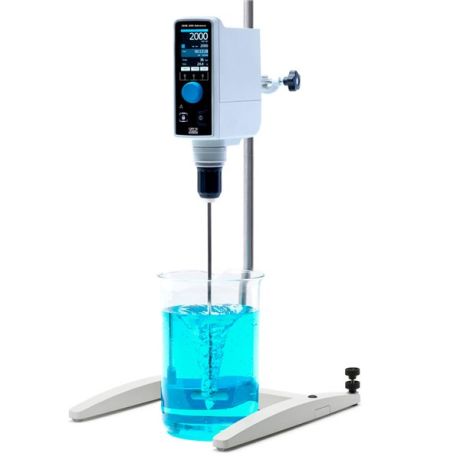

Velp OHS 200 Advance overhead stirrer
Request a price
pc

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 60 - 400 rpm and 30 - 2,000 rpm stirring volume: max. 100 liters Max. torque: 200 Ncm Max. viscosity: 100,000 mPa*s Dimensions: 90 x 315 x 235 mm Weight: 4.6 kg"

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 - 13 mm Speed: 60 - 400 rpm and 30 - 2,000 rpm stirring volume: max. 100 liters Max. torque: 200 Ncm Max. viscosity: 100,000 mPa*s Dimensions: 90 x 315 x 235 mm Weight: 4.6 kg"

331.F20100490
100.000 mPas

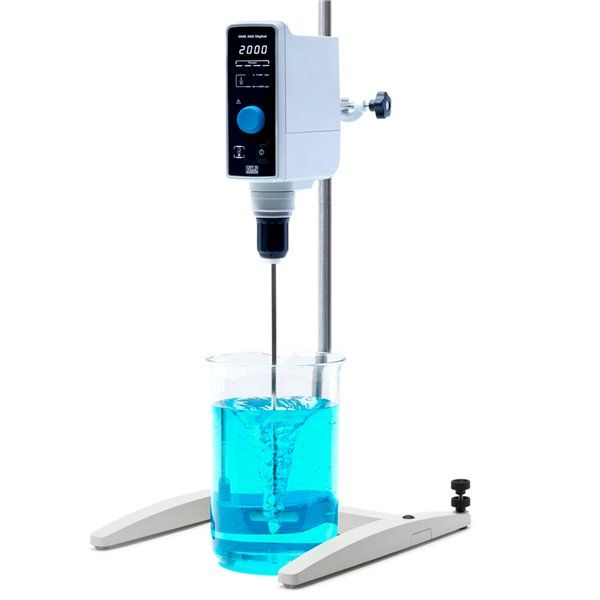

Velp OHS 200 Digital overhead stirrer
Request a price
pc

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 and 13 mm Power: 120 W 2 speed. Speed: 6-400 rpm and 30-2000 rpm stirring volume: 200 liters Max. torque: 200 Ncm Max. viscosity: 100,000 mPa*s Dimensions: 90x315x235 mm Weight: 4.6 kg"

"Overhead stirrer for high viscosity materials. Material: technopolymer and aluminum alloy Can be used: up to 8.5 mm stirring stem. Chuck: ? between 1 and 13 mm Power: 120 W 2 speed. Speed: 6-400 rpm and 30-2000 rpm stirring volume: 200 liters Max. torque: 200 Ncm Max. viscosity: 100,000 mPa*s Dimensions: 90x315x235 mm Weight: 4.6 kg"

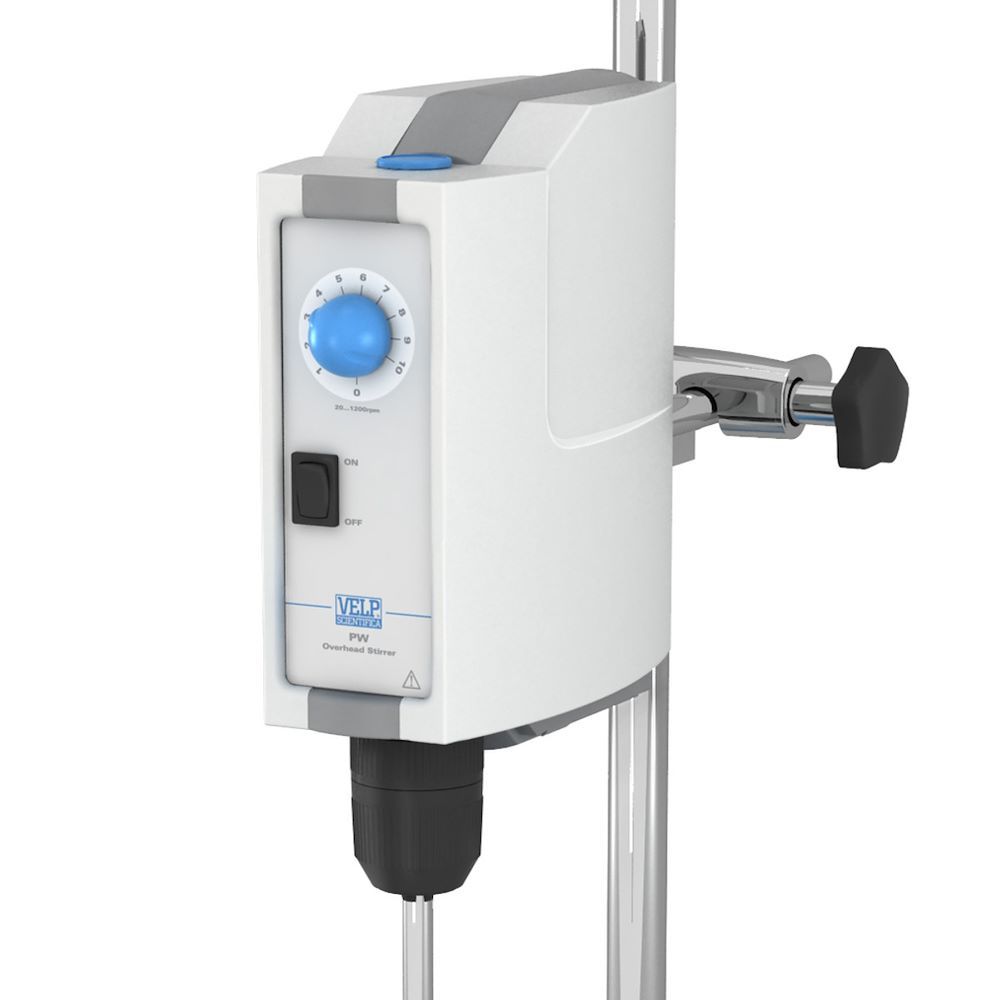

331.F201A0150
100.000 mPas
Velp PW overhead stirrer, for high viscosity fluids
Request a price
pc

"Analog. With polymer structure. Ideal for premium resistance to acids

"Analog. With polymer structure. Ideal for premium resistance to acids
