Separa® Filter Vials
Separa® Filter Vials
Separa® Filter Vials
Separa® Filter Vials
Separa® Filter Vials
Separa® Filter Vials
Separa® Toggler, for simultaneous use of 12 Separa® vials
Separa® Toggler, for simultaneous use of 12 Separa® vials
Separa® Filter Vials
Separa® Filter Vials
Separa® Filter Vials
Separa® Toggler, for simultaneous use of 12 Separa® vials

Separa® filter vials

GVS

Request a price

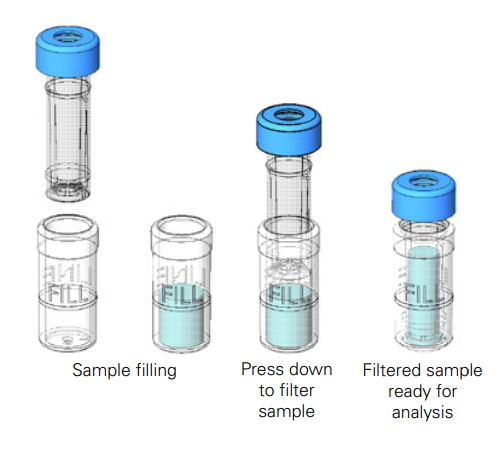

Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most autosamplers. Can be used up to 50 °C. The vials are marked with the membrane material and pore size on the top. Each combination has a different color, so they can be easily identified during work.

The Separa® Toggler allows filtering of 12 vials at a time, which speeds up daily work when preparing a large number of samples. It can only be used with Separa filter vials. The device and the vial holder can be cleaned with 90% ethanol or autoclaved at 121 °C for 15 minutes.

Applications

  • Analytical Sample Prep, HPLC
  • Analytical Sample Prep, uHPLC
  • Biological Studies
  • Chromatography
  • Clarification
  • Clarification of aqueous and organic solvent solutions

More details

Specifications Separa vials
Chamber volume: 480µl
Filter capacity: 450µl
Compression Force: 0,6 bar
Material:  polypropylene, PTFE, silicone
Dimensions (dxh): 12 x 32 mm

code
Pore ø
Membrane material
Packaging
net price
amount
in stock
597.MV32ANPNY002BC01
0,2 µm
nylon
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: nylon (NY) Pore size: 0.2 µm Color code: light blue Max. 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: nylon (NY) Pore size: 0.2 µm Color code: light blue Max. 50 °C."

597.MV32ANPNY004UC01
0,45 µm
nylon
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: nylon (NY) Pore size: 0.45 µm Color code: blue Max. 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: nylon (NY) Pore size: 0.45 µm Color code: blue Max. 50 °C."

597.MV32ANPPS002EC01
0,2 µm
PES
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyethersulfone (PES) Pore size: 0.2 µm Color code: light green Max. 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyethersulfone (PES) Pore size: 0.2 µm Color code: light green Max. 50 °C."

597.MV32ANPPS004WC01
0,45 µm
PES
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyethersulfone (PES) Pore size: 0.45 µm Color code: dark green Max. use up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyethersulfone (PES) Pore size: 0.45 µm Color code: dark green Max. use up to 50 °C."

597.MV32ANPPT002TC01
0,2 µm
PTFE
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polytetrafluoroethylene (PTFE) Pore size: 0.2 µm Color code: pink Max. use up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polytetrafluoroethylene (PTFE) Pore size: 0.2 µm Color code: pink Max. use up to 50 °C."

597.MV32ANPPT004CC01
0,45 µm
PTFE
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polytetrafluoroethylene (PTFE) Pore size: 0.45 µm Color code: red Max. usable up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polytetrafluoroethylene (PTFE) Pore size: 0.45 µm Color code: red Max. usable up to 50 °C."

597.MV32ANPPV002FC01
0,2 µm
PVDF
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyvinylidene fluoride (PVDF) Pore size: 0.2 µm Color code: lemon yellow Max. use up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyvinylidene fluoride (PVDF) Pore size: 0.2 µm Color code: lemon yellow Max. use up to 50 °C."

597.MV32ANPPV004IC01
0,45 µm
PVDF
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyvinylidene fluoride (PVDF) Pore size: 0.45 µm Color code: orange Max. use up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: Polyvinylidene fluoride (PVDF) Pore size: 0.45 µm Color code: orange Max. use up to 50 °C."

597.MV32ANPRC002GC01
0,2 µm
regenerated cellulose
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: regenerated cellulose (RC) Pore size: 0.2 µm Color code: gray Max. usable up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: regenerated cellulose (RC) Pore size: 0.2 µm Color code: gray Max. usable up to 50 °C."

597.MV32ANPRC004LC01
0,45 µm
regenerated cellulose
100 pc / pack
Request a price
pack

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: regenerated cellulose (RC) Pore size: 0.45 µm Color code: black Max. usable up to 50 °C."

"Consists of an outer vial, inner insert, membrane chamber and a pre-cut septum cap. The sample is placed in the outer vial and then passes through the membrane by pressing the inner insert. The filtered, ready-to-use sample can be easily and cleanly transferred from the inner insert thanks to the septum cap. Compatible with most automatic samplers. Material: polypropylene, PTFE, silicone Diameter: 12 mm Height: 32 mm Volume: 480µl Filter capacity: 450µl Membrane material: regenerated cellulose (RC) Pore size: 0.45 µm Color code: black Max. usable up to 50 °C."

597.SEPARATOGGLER120
-
-
1 pc Separa® Toggler
Request a price
pc

"Only for use with Separa syringeless filters. Maintenance-free unit. Autoclavable at 121°C for 15 minutes. Can be cleaned with 90% ethanol. Weight: approx. 3.5 kg"

"Only for use with Separa syringeless filters. Maintenance-free unit. Autoclavable at 121°C for 15 minutes. Can be cleaned with 90% ethanol. Weight: approx. 3.5 kg"

related products

PFAS free Separa® filter vials
PFAS free Separa® filter vials

Syringeless filter vials in a PFAS-free version. Reduces sample preparation time and cross-contamination.

More informations
Request a price Quotation
