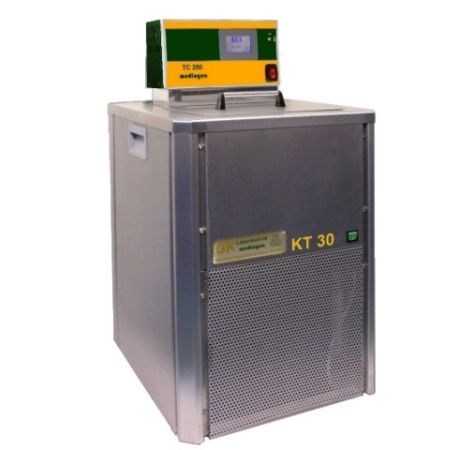

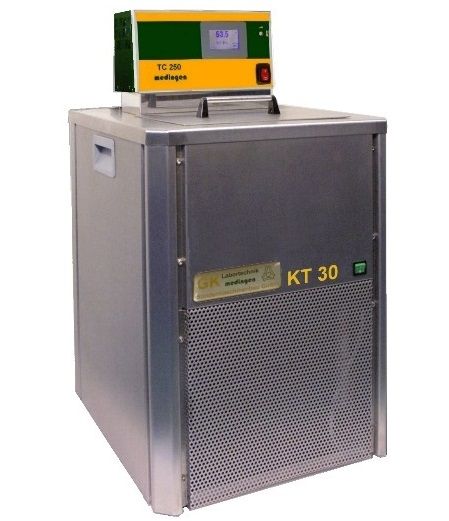

Benchtop cooled circulating thermostats up to -40 °C
Varialux
Request a price
The production of this product has been discontinued.
Thermostats combined with stainless steel tub and compressor cooling system in four temperature ranges from -40 to +200 °C..
All tanks are the same size, 14 liters. At temperatures above the boiling point or below the freezing point of water, a special liquid must be used as a heat transfer fluid. Devices without thermostats, suitable for both internal and external circulation, can also be thermostated.
The cooling-heating equipment can be ordered with a total of seven types of controllers - T100, T150, T200, TC150 and TC250. K-marked controllers are also available (capable of energy-saving cryo-cooling control), the T200 K and TC250 K type controllers are capable of this. A more detailed description of the thermostat heads and their technical data (accuracy, heating power) can be found on a separate page.
Technical data of benchtop cooled circulating thermostats:
| Type: | KT | KT 10 | KT 30 | KT 40 |
|---|---|---|---|---|
| Temperature range: | 0 - 100°C | -10 - 100°C | -30 - 100°C | -40 - 100°C |
| Consumption: | Depends on the type of circulating thermostat, T 100: 1000 W, T 150/ T 200/TC 150/TC 250: 1800 W | |||
| Cooling consumption +20 °C | 500 W | 500 W | 600 W | 750 W |
| Cooling consumption 0 °C | 250 W | 300 W | 450 W | 550 W |
| Cooling consumption -10 °C | - | - | 250 W | 400 W |
| Temperature stability: | Depends on the type of circulating thermostat T 100/ T 150 /TC 150: ±0.1 K, T200/TC 250: ±0.01 K | |||
| Pressure / speed: | Depends on the type of circulating thermostat T 100/T 150: 5 l/min/120 mbar, T 200: 8 l/min/200 mbar, TC 150/TC 250: 20 l/min/300 mbar | |||
| Temperature sensor: | Depends on the type of circulation thermostat T 100: PTC, T1 50/ T 200/ TC 150/ TC 250: PT100 | |||
| Display: | Depends on the type of circulation thermostat T 100/T 150: LED, T 200/ TC 150/TC 250: LCD | |||
| Tank opening / depth: | 210 mm x 270 mm / 190 mm | 210 mm x 270 mm / 190 mm | 210 mm x 270 mm / 190 mm | 210 mm x 270 mm / 190 mm |
| Volume: | 14 liters | 14 liters | 14 liters | 14 liters |
| Weight: | 40 kg | 40 kg | 42 kg | 42 kg |
